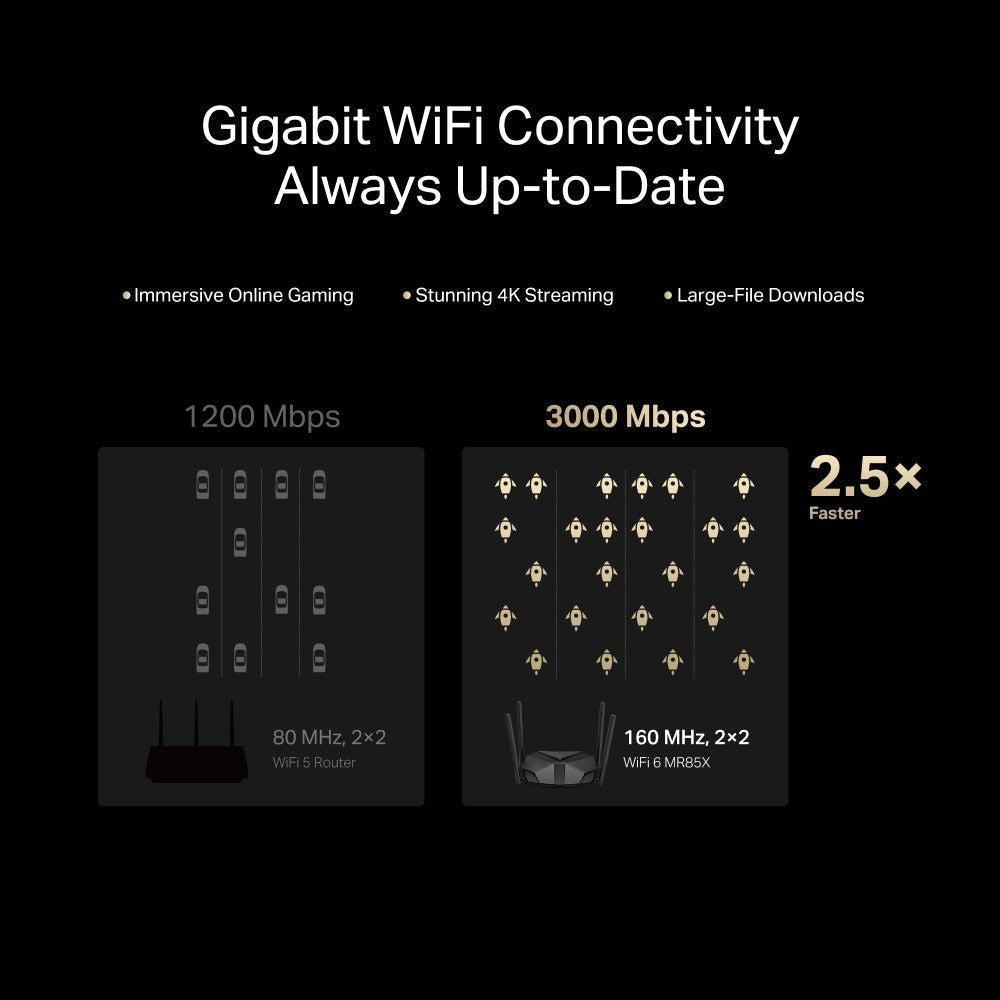

OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.

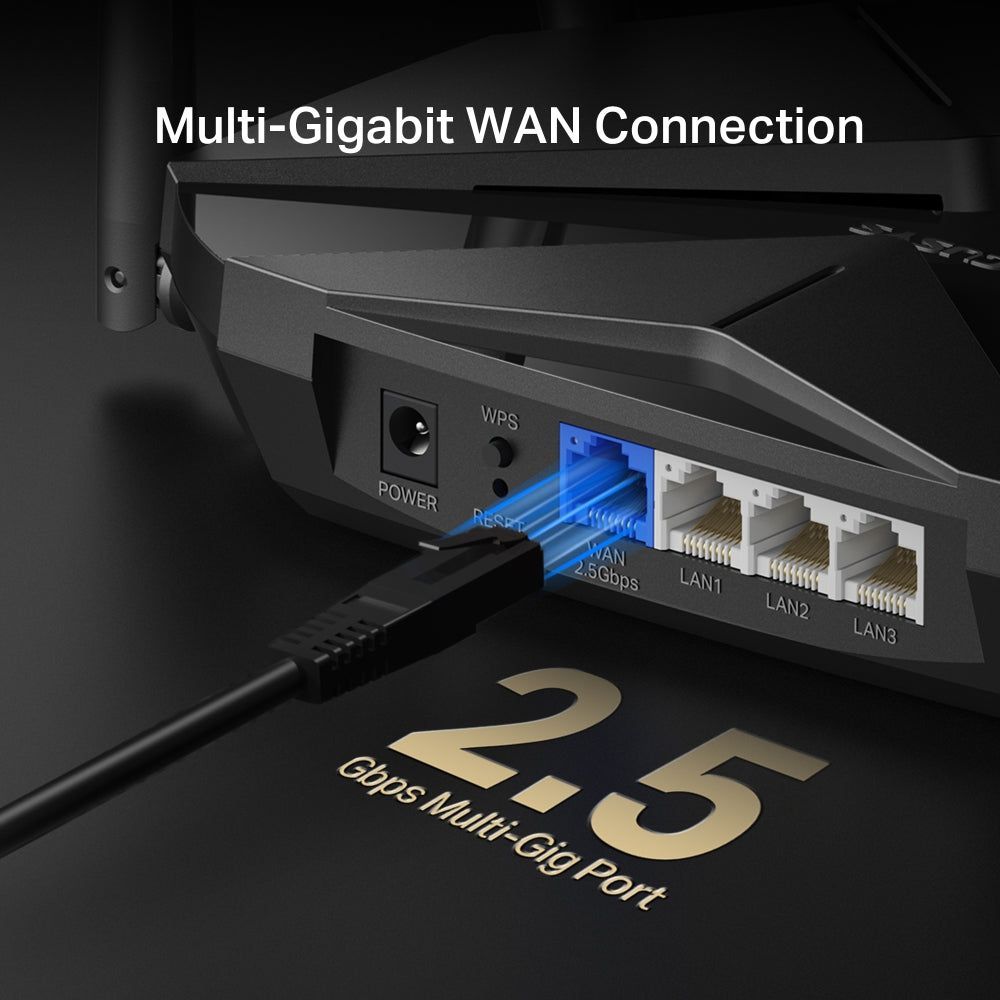

2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.

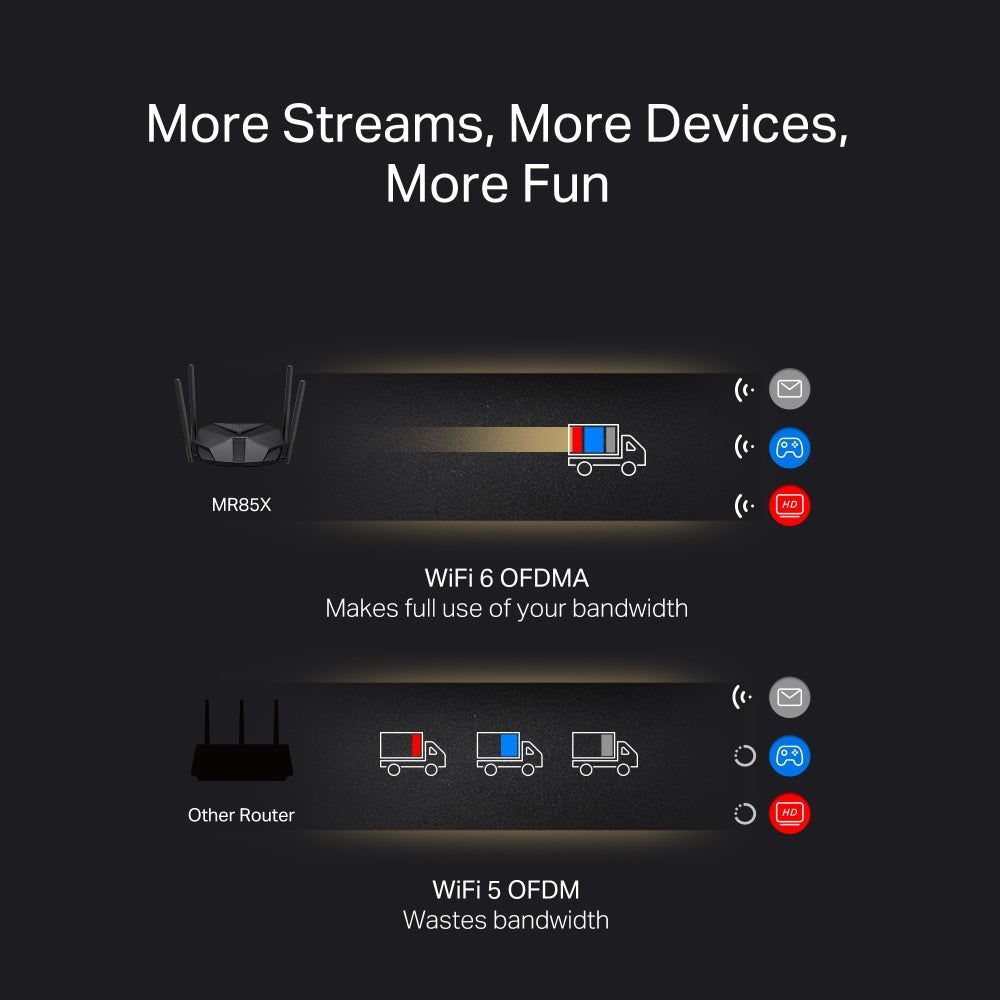

MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.

WiFi THAT GOES FARTHER – 4× multi-directional antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security

GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance

ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring

SMART CONNECT – Intelligently chooses the best available band for each device

Wireless

Wireless Standards : Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds : 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity

11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1、 band2)
5 GHz < 30dBm (band3)

Wireless Security : WPA / WPA2-Personal, WPA2 / WPA3-Personal

Wireless Functions : Enable/Disable Wireless Radio, WMM

Hardware

Dimensions

8.2 × 6.8 × 1.7 in
(209 × 171.7 × 42.4 mm)

Interfaces : 1× 2.5 Gbps WAN Port + 3× Gigabit LAN Ports

Button : Reset Button, WPS Button

Antenna Type : 4× Fixed Omnidirectional Antennas

Software

WAN Type : Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control
Local Management
Remote Management

NAT Forwarding : Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security : SPI Firewall, IP and MAC Address Binding

Guest Network : 2.4 GHz Guest Network, 5 GHz Guest Network

DHCP : Server, DHCP Client List

VPN Server : OpenVPN/PPTP/L2TP/IPSec VPN Server and Clients

Others

Package Contents

• AX3000 Dual Band Wi-Fi 6 Router MR85X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing

MERCUSYS
