Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡

• Newest Wi-Fi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.^△
• Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.^†
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.^△

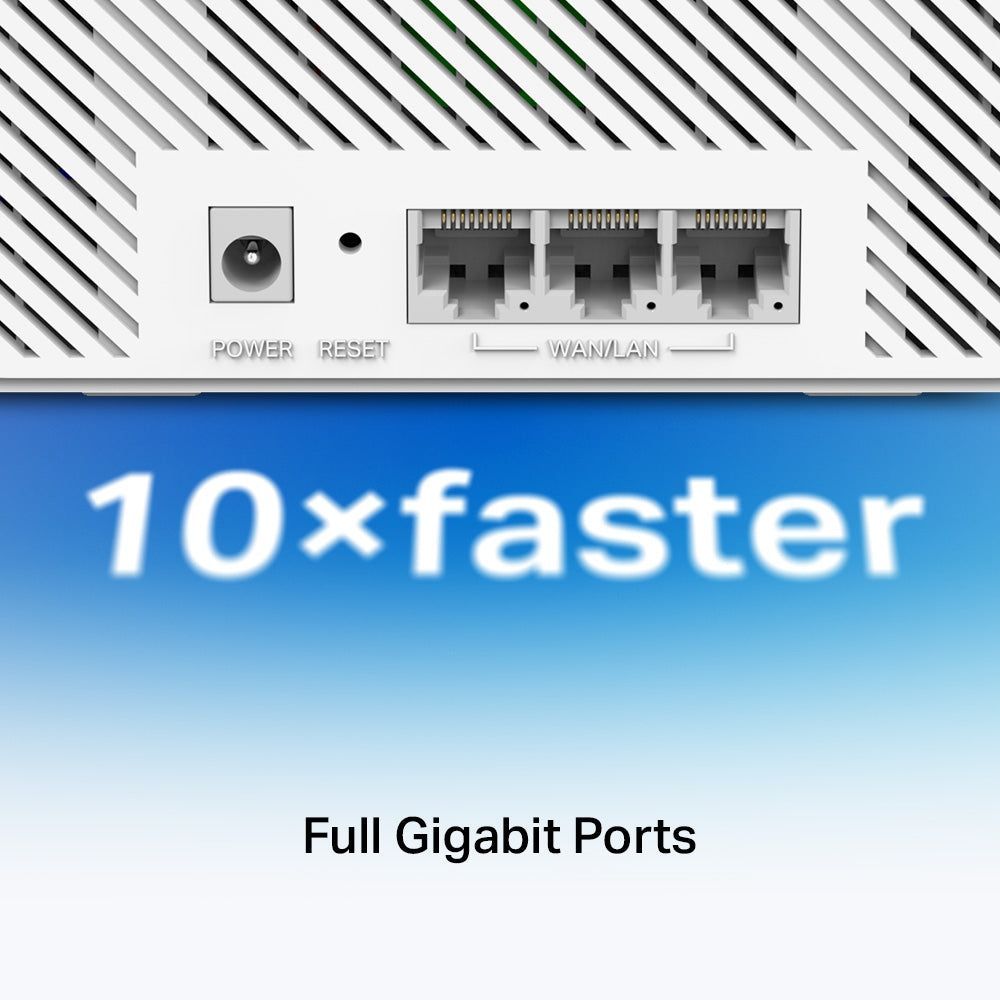

• Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections.^**
• Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft² / 650 m² (3-pack) ; 5,000 ft² / 460 m² (2-pack) .‡

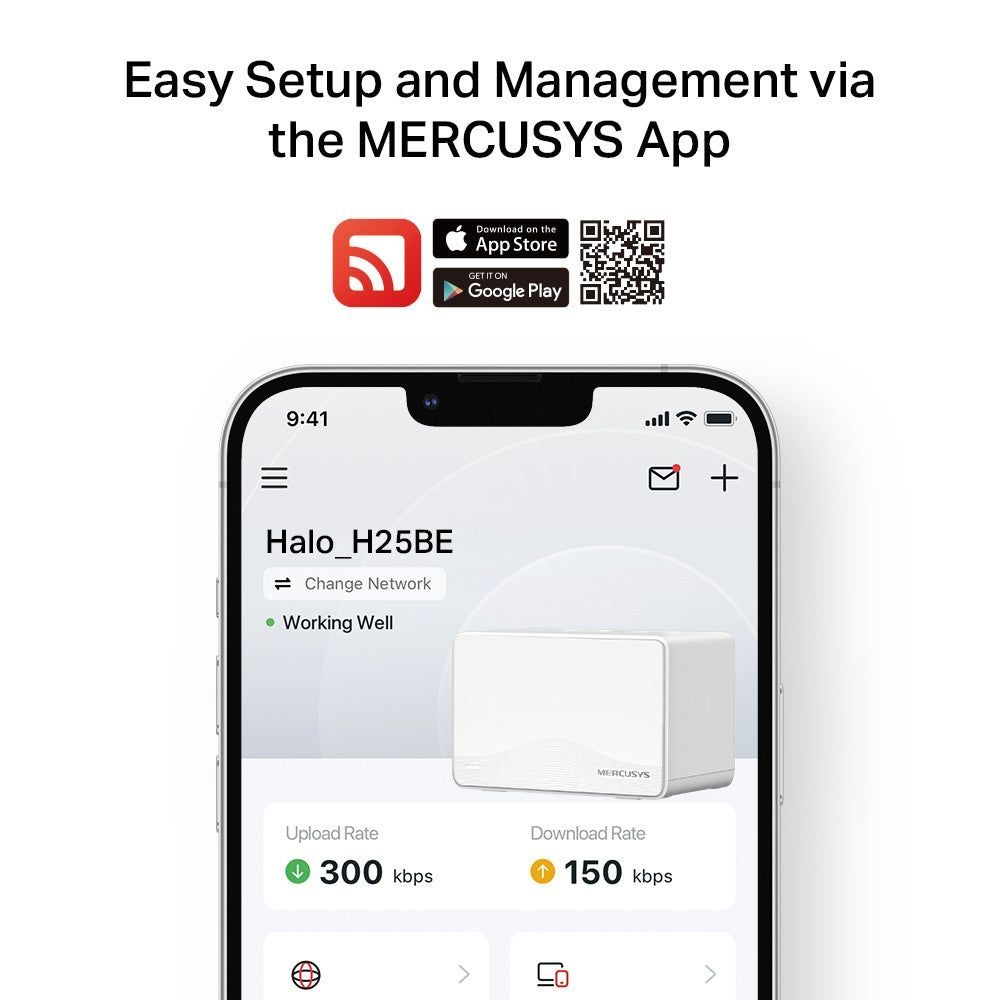

• Easy Setup and Use: Network management has never been easier with the MERCUSYS app.

*Please note that the Halo H series and S series cannot work together.

Wireless Standards

5 GHz: IEEE 802.11a/n/ac/ax/be mixed

2.4 GHz: IEEE 802.11b/g/n/ax/be mixed

WiFi Speeds

2880 Mbps at 5 GHz

688 Mbps at 2.4 GHz

Reception Sensitivity

2.4G: -97dBm

5G: -98.5dBm

Transmission Power

5G band1 band2 < 23dBm

5G band3 < 30dBm

2.4G band < 20dBm

Wireless Security : WPA-PSK/WPA2-PSK/WPA3-SAE

Mesh protocol : 802.11k/v/r

Hardware

Dimensions : 5 × 3.2 × 3.3 in (128 × 81.3 × 83.7 mm))

Interfaces : 3× 1 Gbps Ports (WAN/LAN auto-sensing)

Button : Reset button

Software

Operation Mode : Router, Access Point

Quality of Service : WMM

WAN Type : Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management : Local Management, Remote Management, Multi-Managers

Firewall Security : SPI Firewall

Protocols : Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network

5 GHz Guest Network

DHCP : Server, Client

Package Contents

3-pack

3× Halo H25BE Units
1× RJ45 Ethernet Cable
3× Power Adapters
Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
