Name: MER-MS110P - Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Brand: MERCUSYS
SKU: MER-MS110P
Price: 100.58 NZD
Availability: OutOfStock

Mercusys MS110P desktop Ethernet switch, dark metal case with front PoE+ ports

Mercusys MS110P desktop Ethernet switch front view with green link/activity LEDs

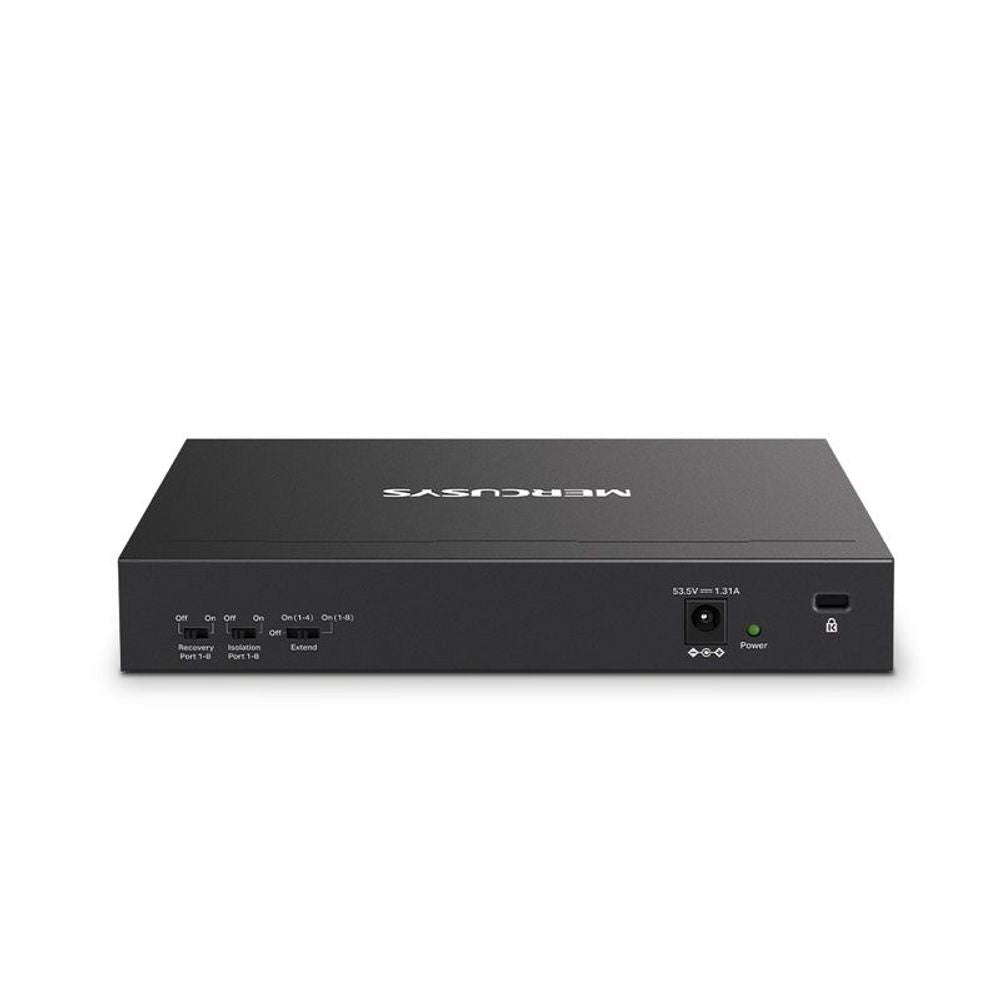

Mercusys MS110P desktop Ethernet switch rear view with power and port connection area

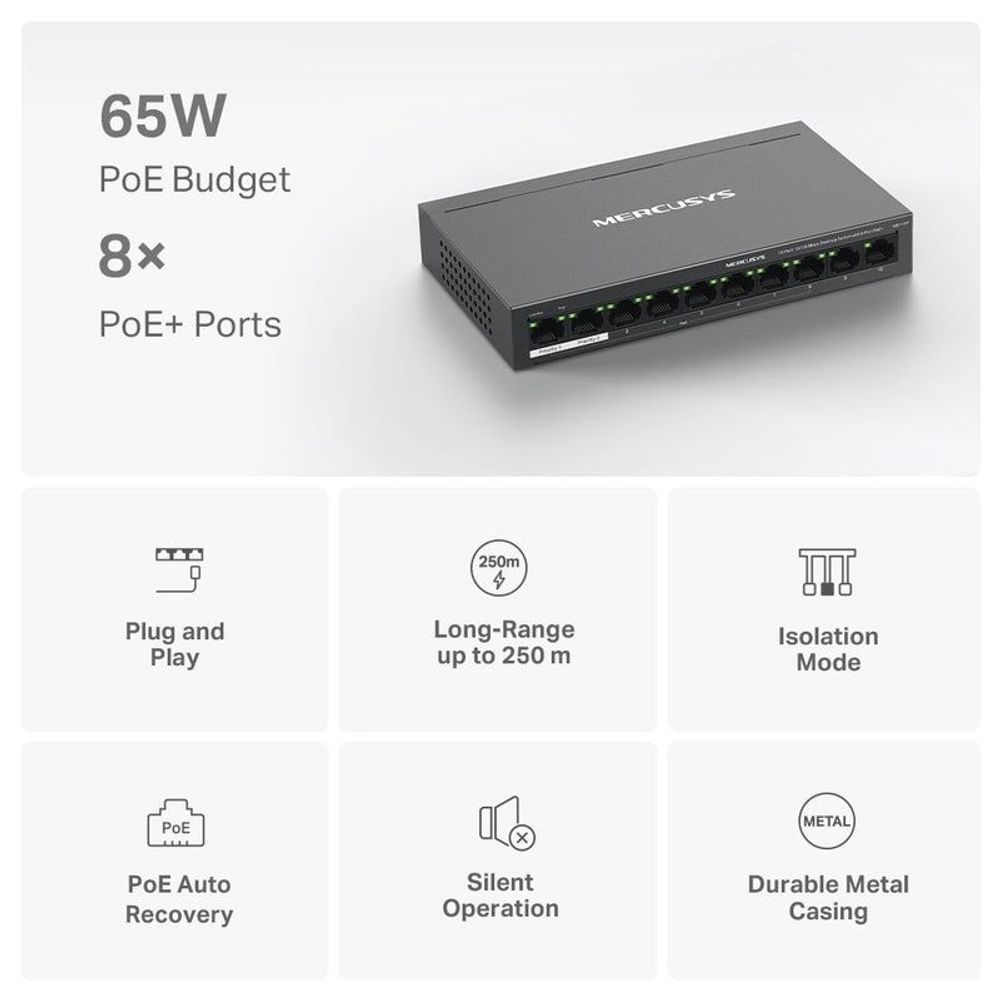

Mercusys MS110P desktop switch with 8 PoE+ ports and compact metal housing

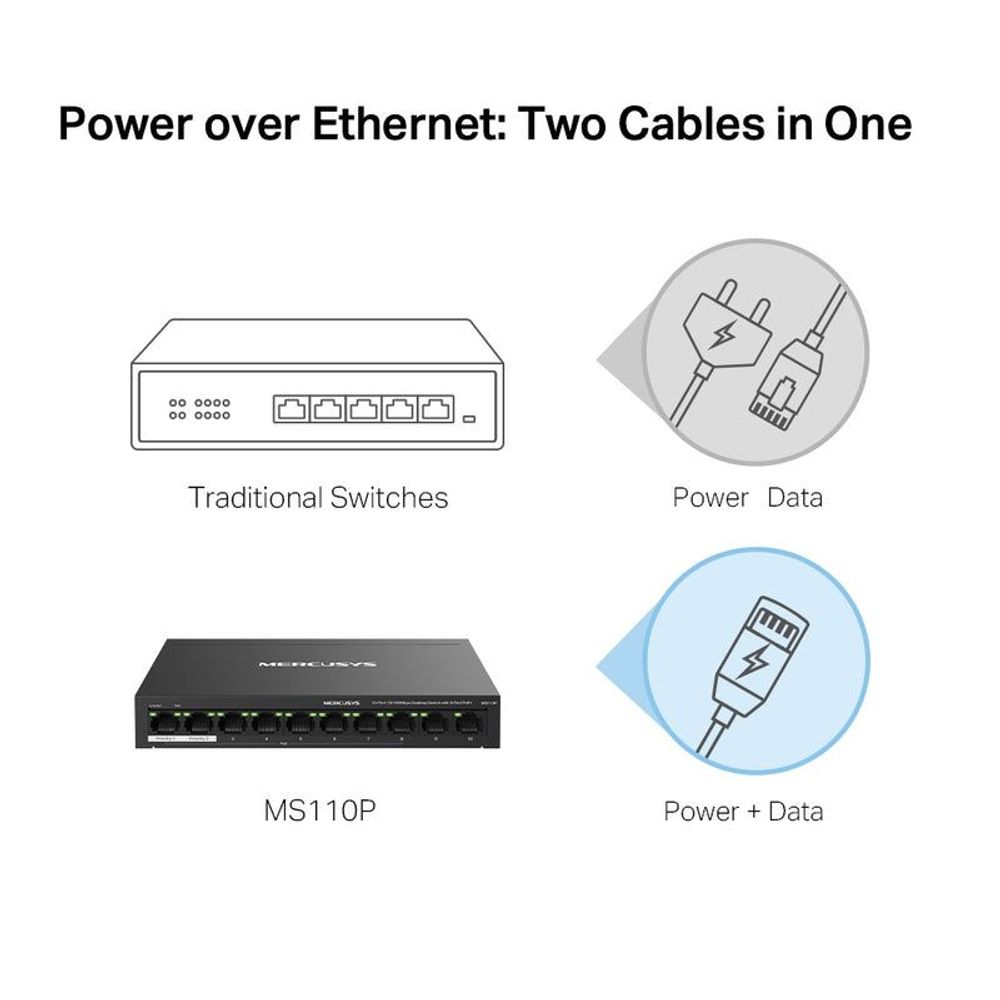

Mercusys MS110P switch with power-over-Ethernet concept and visible front ports

Mercusys MS110P switch with extend-mode concept graphic and small desktop metal body

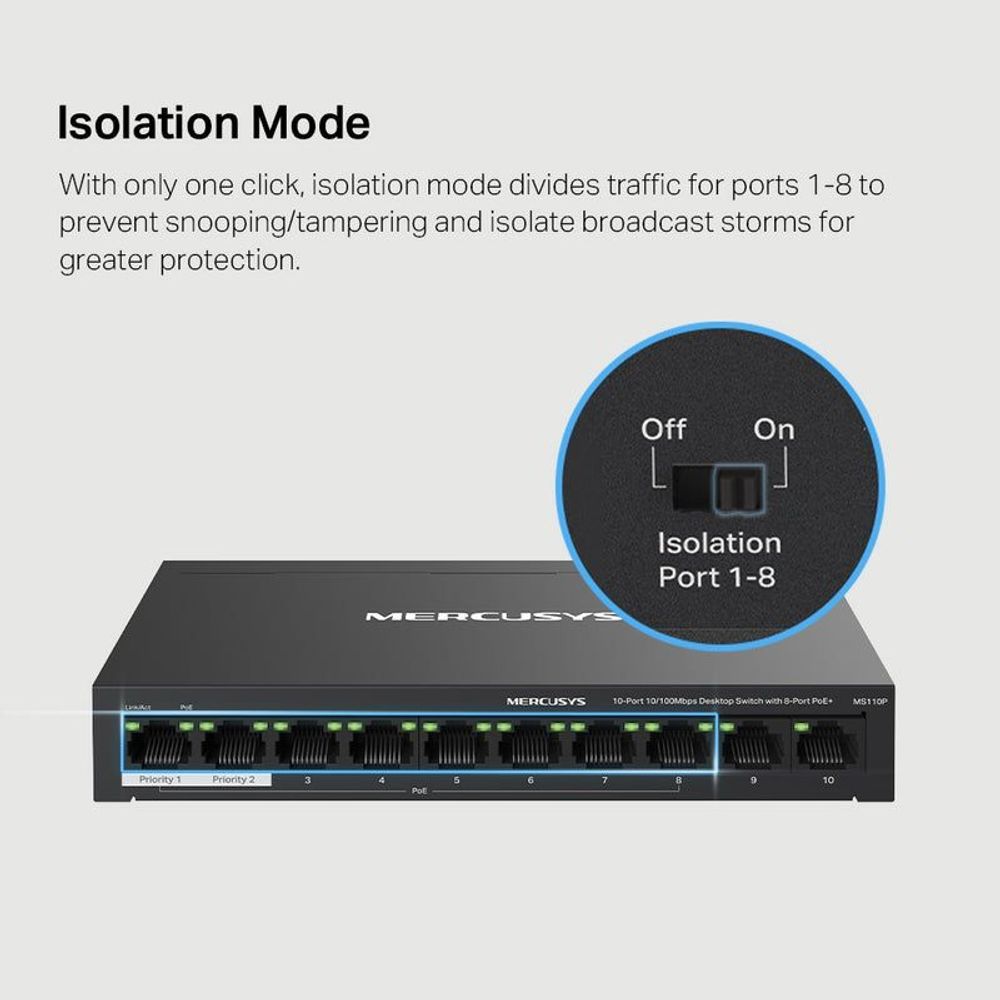

Mercusys MS110P switch with isolation-mode graphic and front port LED indicators

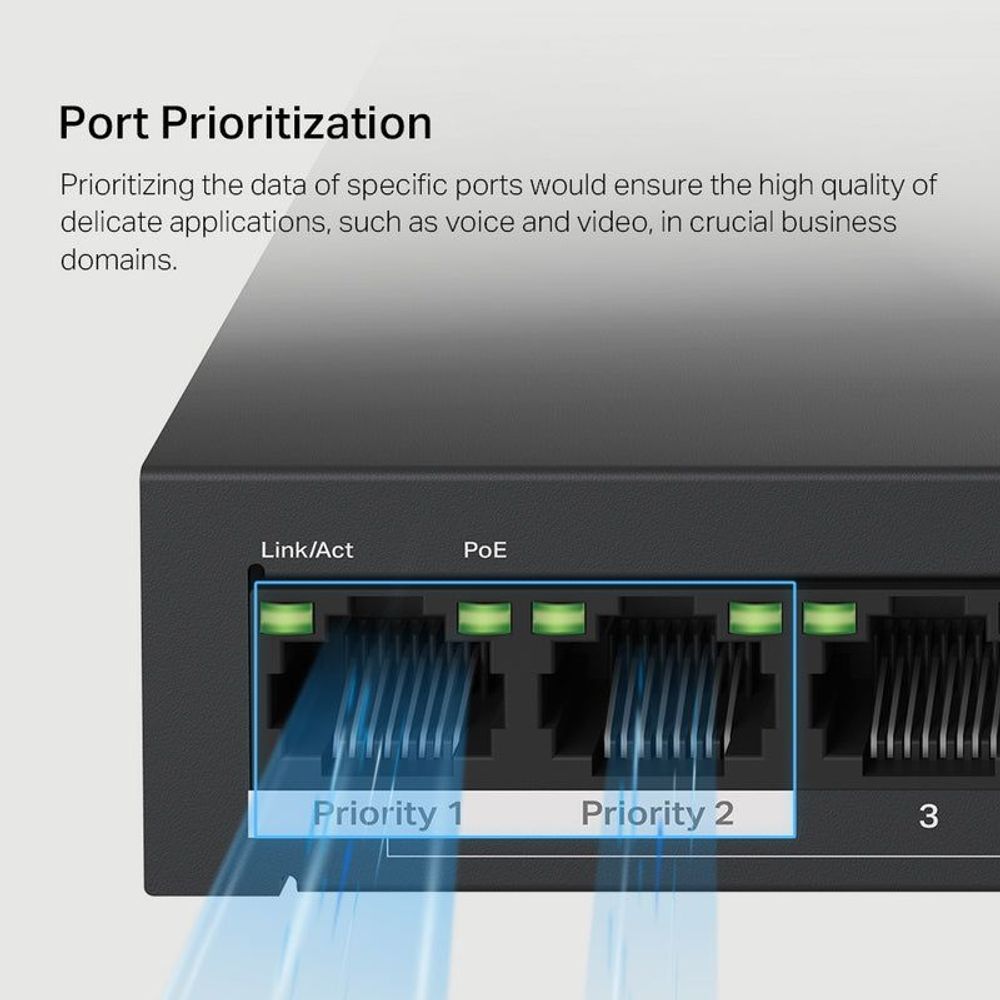

Mercusys MS110P front port area with link/act LEDs and priority highlighting overlay

MER-MS110P - Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

MER-MS110P

$100.58

Tax included.

Out of stock

Select quantity

Description

MER-MS110P – Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Description

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Hardware

Dimensions (W X D X H)

171*98*27 mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W

Interfaces

10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

2 KB

Mac Address Table

Max Power Consumption

10.064 BTH/h （no PD connected)

263.568 BTH/h（with 65W PD connected）

Others

Package Contents

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
