Name: MER-MS108GP - Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+
Brand: MERCUSYS
SKU: MER-MS108GP
Price: 113.31 NZD
Availability: OutOfStock

Mercusys desktop gigabit switch with 7 PoE+ ports, front panel and LED indicators.

Mercusys desktop gigabit switch, front ports and status LED lights visible.

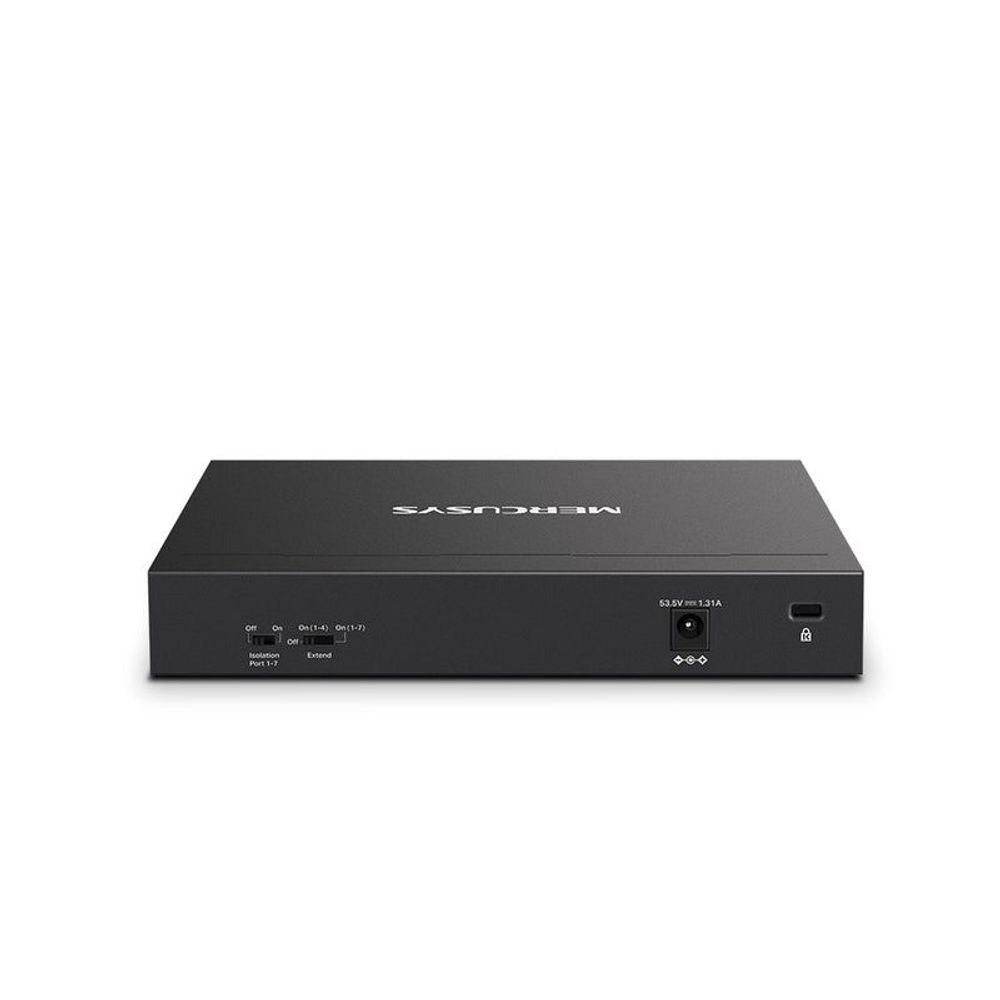

Mercusys desktop gigabit switch, rear panel connectors and power port visible.

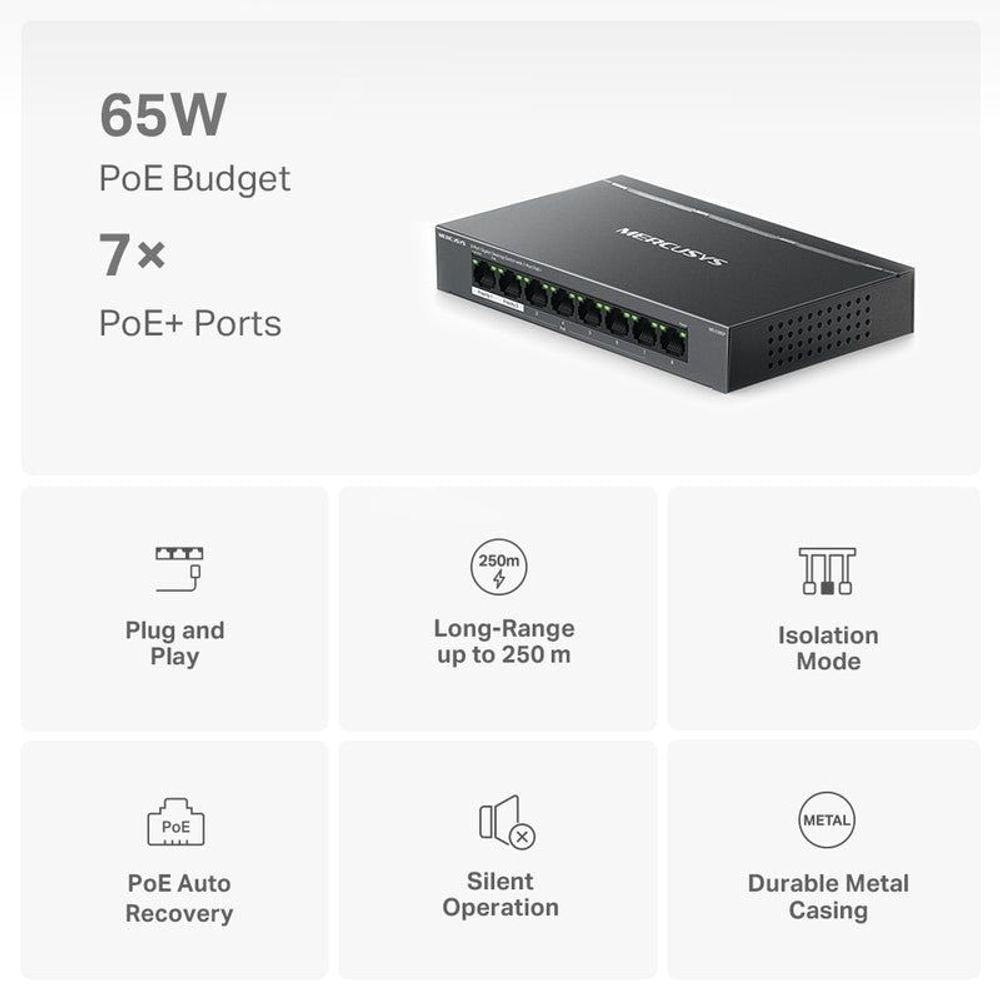

Mercusys 8-port gigabit desktop switch with 7 PoE+ ports, compact metal casing.

Mercusys desktop PoE+ switch with 7 PoE+ ports, front face and side ventilation holes.

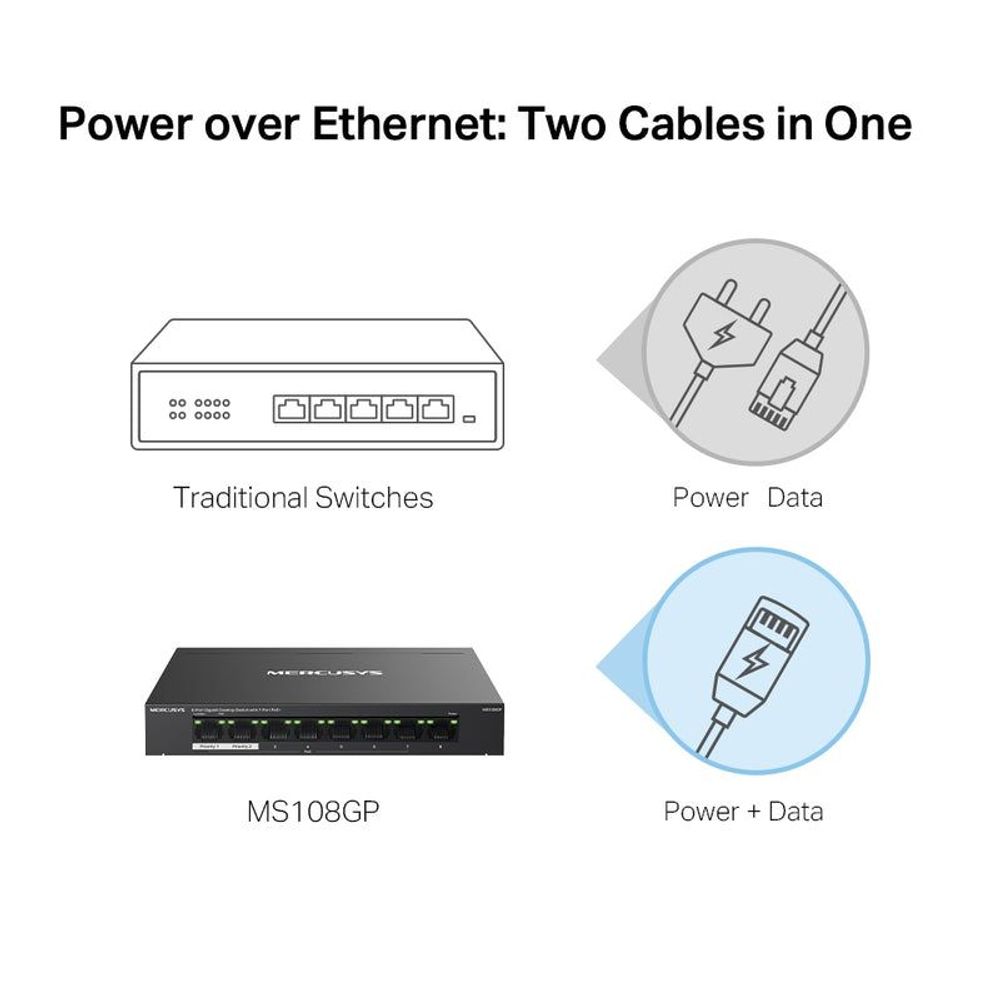

Mercusys PoE+ desktop switch, front ports shown on a compact box housing.

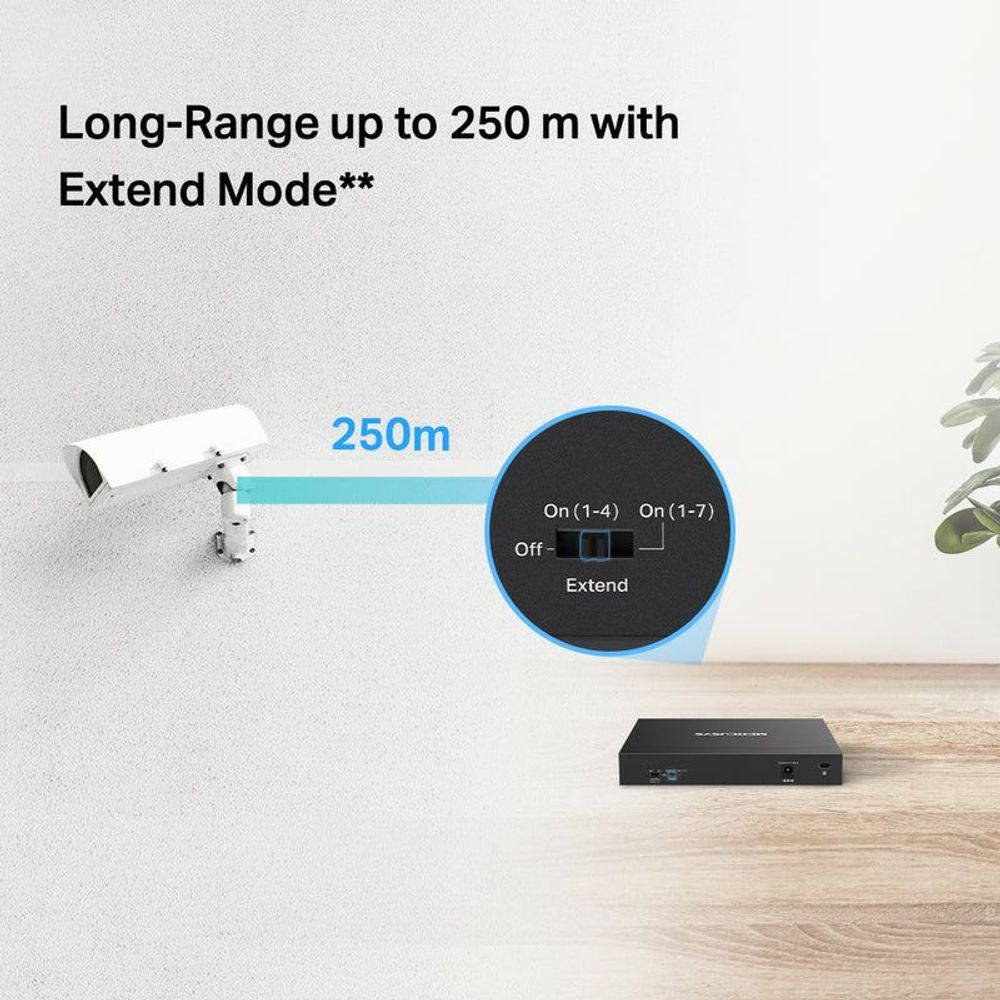

Mercusys compact PoE+ desktop switch, front ports and LED indicators visible.

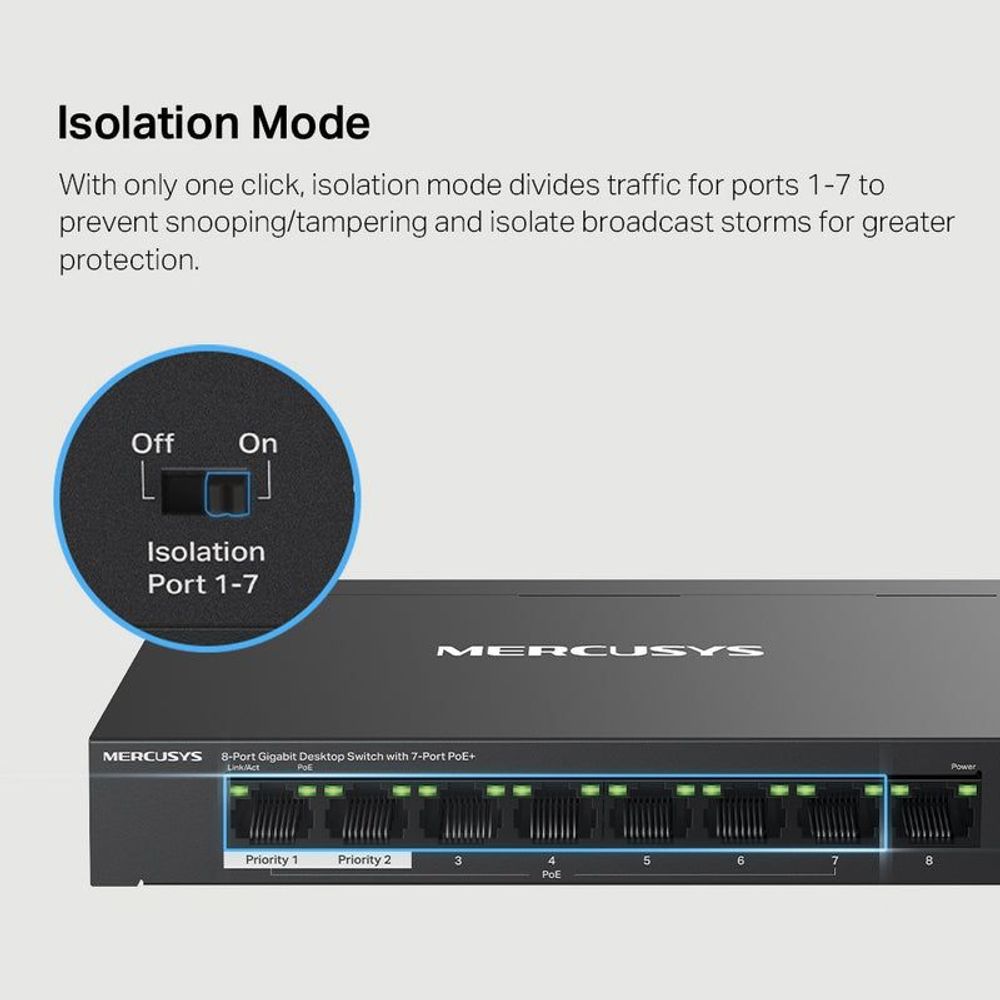

Mercusys PoE+ desktop switch, close-up of front ports and LED status bar.

MER-MS108GP - Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

MER-MS108GP

$113.31

Tax included.

Out of stock

Select quantity

Description

MER-MS108GP – Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

Description

8-Port Gigabit Desktop Switch with 7-Port PoE+

Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort

Hardware

Dimensions (W X D X H)

171*98*27 mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame

15 KB

Mac Address Table

Max Power Consumption

5.07W（220 V / 50 Hz, no PD connected）

77.33W（220 V / 50 Hz, with 65W PD connected）

Max Heat Dissipation

17.238 BTH/h （no PD connected)

262.922 BTH/h（with 65W PD connected）

Others

Package Contents

• 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
• Power Adapter
• Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

Warranty

Brand

MERCUSYS

Restock ETA (if applicable)

Product Details

Specifications

MERCUSYS
