Name: MER-MS105GP - Mercusys MS105GP, 5-Port Gigabit Desktop Switch with 4-Port PoE+
Brand: MERCUSYS
SKU: MER-MS105GP
Price: 87.86 NZD
Availability: OutOfStock

Mercusys 5-port gigabit desktop switch, front panel with five Ethernet ports and LEDs

Mercusys 5-port gigabit desktop switch, front view with five ports and Power indicator

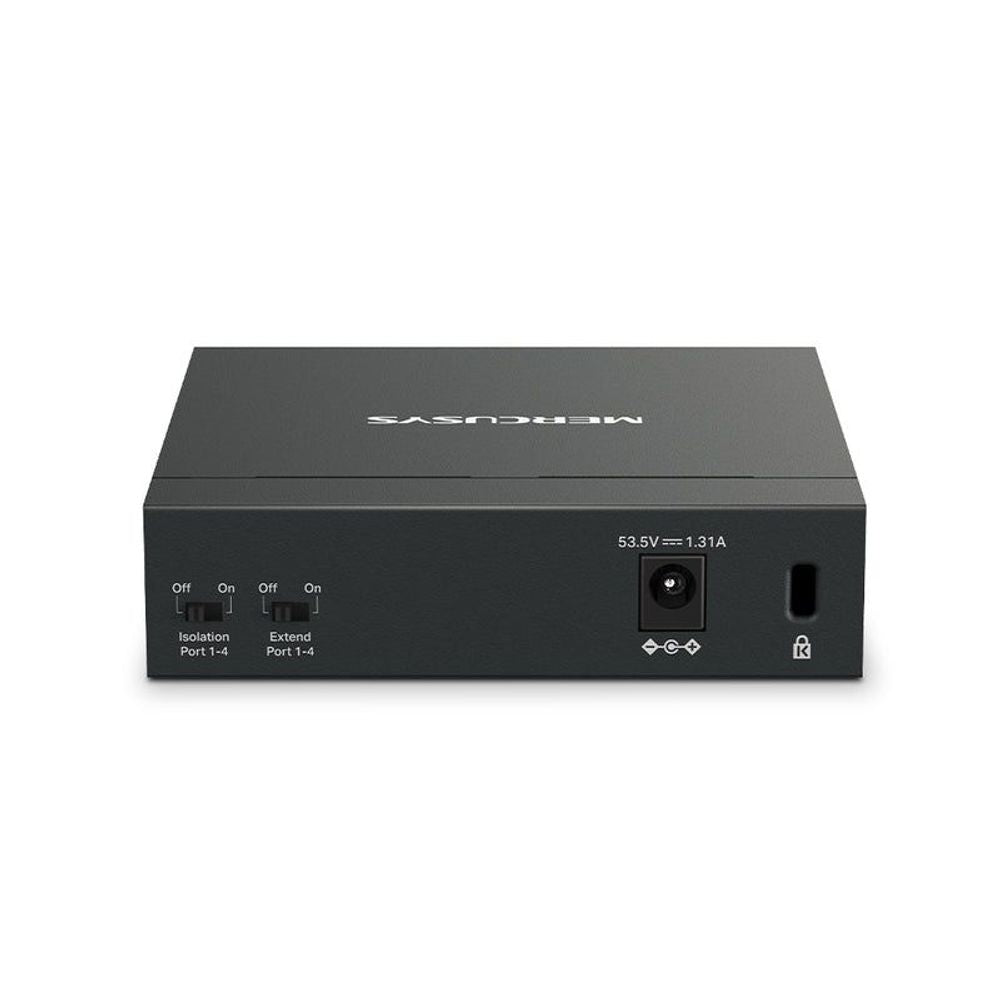

Mercusys 5-port gigabit desktop switch, rear panel with power connector and switches

Mercusys PoE+ desktop switch, front ports with green Link/PoE status LEDs

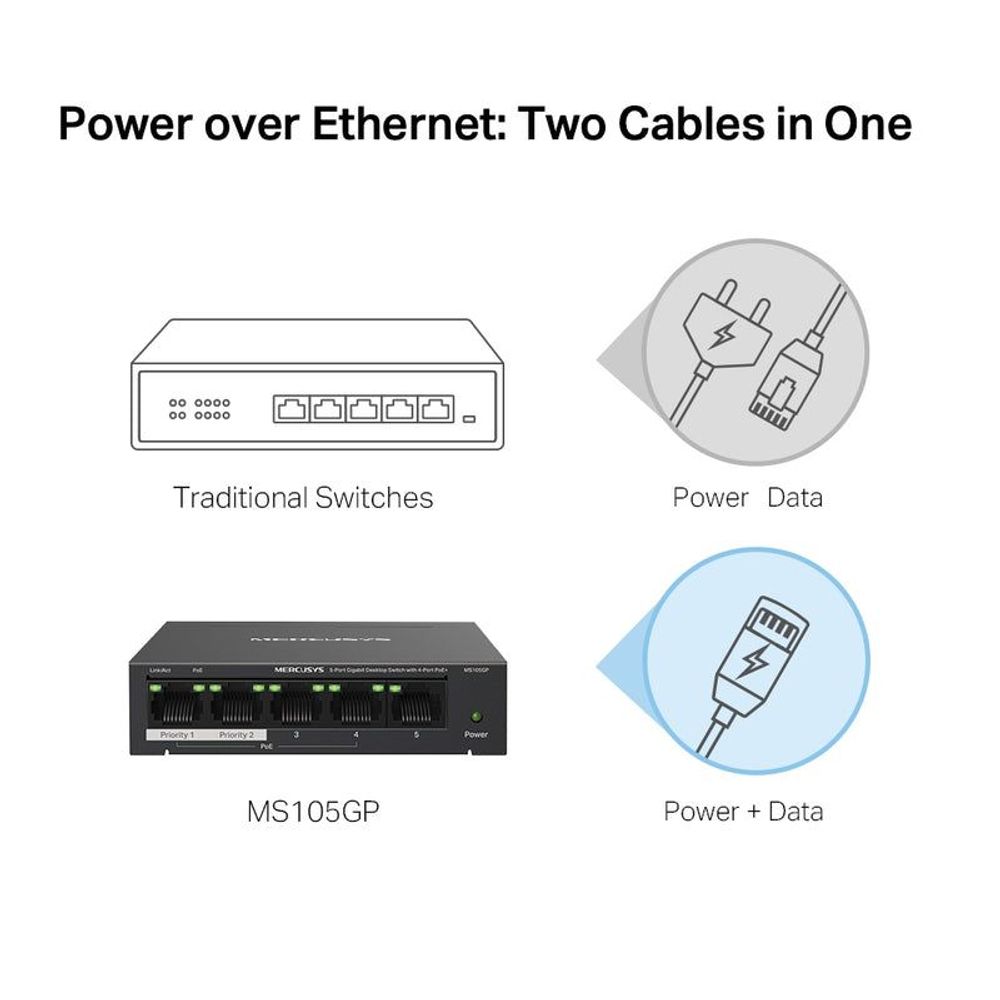

Mercusys desktop switch with port LEDs and power/data connection illustration

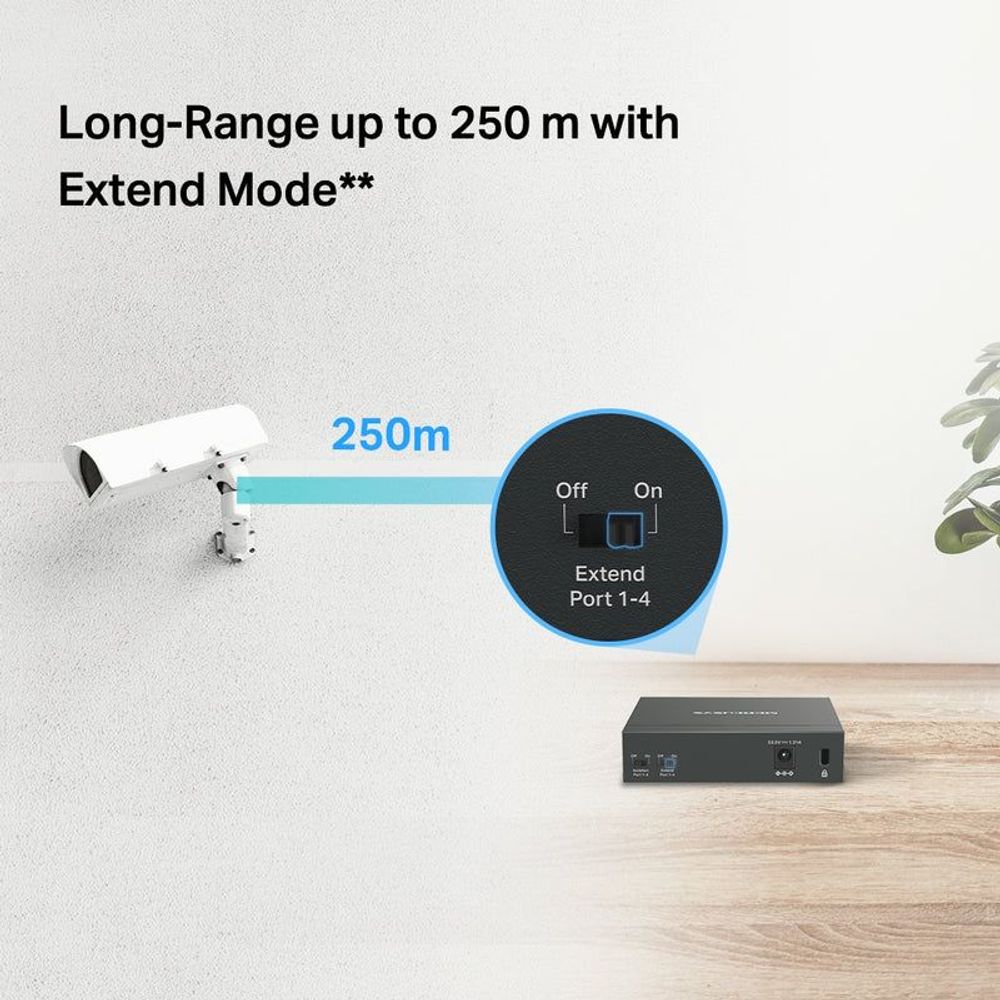

Mercusys desktop switch shown with extend mode control diagram and small unit

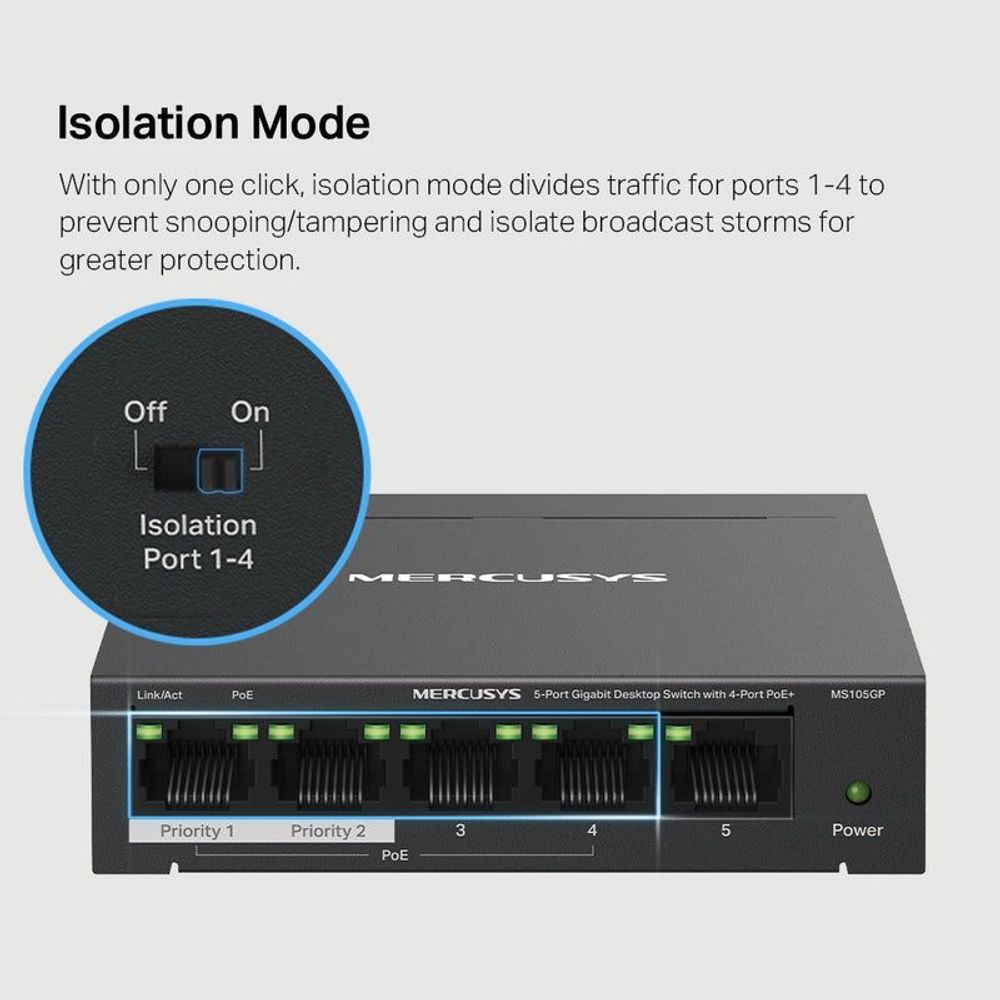

Mercusys PoE+ desktop switch with isolation mode indicator and front port panel

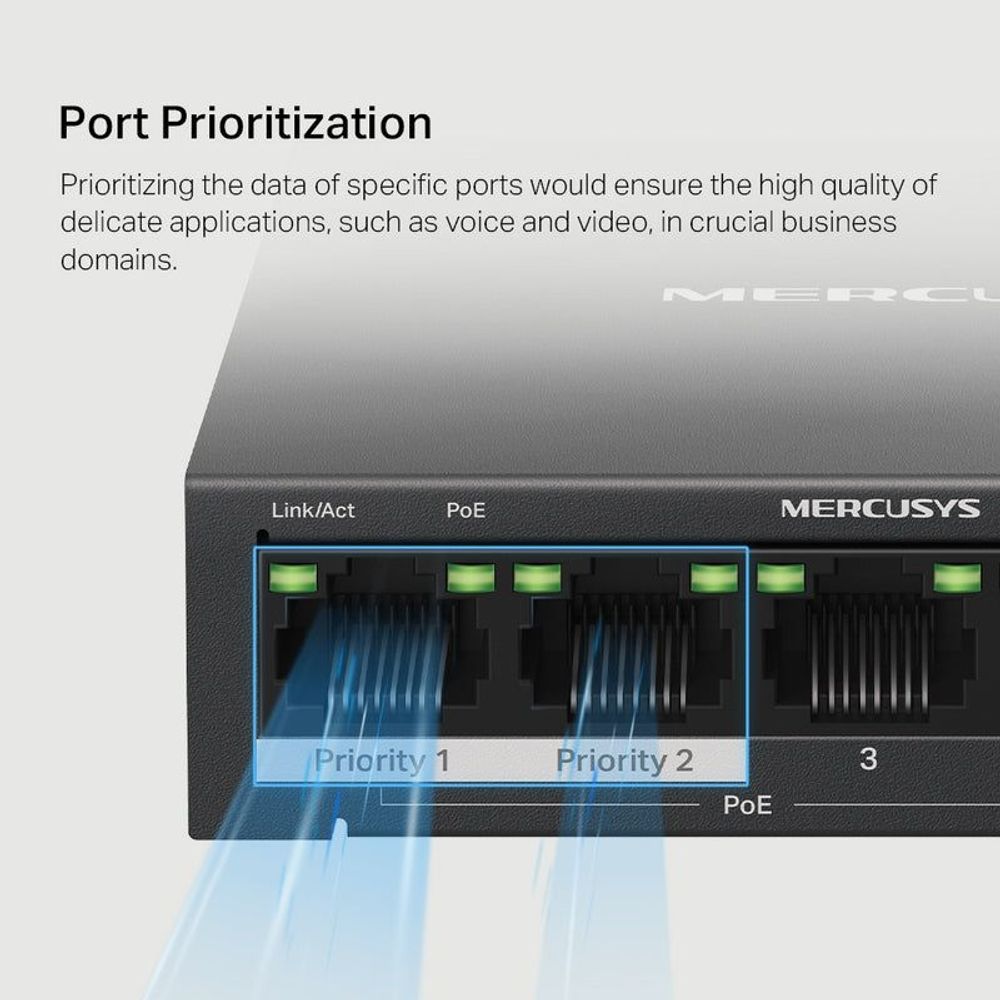

Mercusys desktop switch with highlighted priority ports and Link/Act and PoE labels

MER-MS105GP - Mercusys MS105GP, 5-Port Gigabit Desktop Switch with 4-Port PoE+

MER-MS105GP

$87.86

Tax included.

Out of stock

Select quantity

Description

MER-MS105GP – Mercusys MS105GP, 5-Port Gigabit Desktop Switch with 4-Port PoE+

Description

5-Port Gigabit Desktop Switch with 4-Port PoE+

Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort

Hardware

Dimensions (W X D X H) : 99.8*98*25mm

PoE Ports
RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

Interfaces : 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame

9 KB

Mac Address Table

Max Power Consumption

3.13W（220 V / 50 Hz, no PD connected）

75.15W（220 V / 50 Hz, with 65W PD connected）

Max Heat Dissipation
10.64 BTH/h （no PD connected)

255.51 BTH/h（with 65W PD connected）

Package Contents
• 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)

• Power Adapter
• Quick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
