• 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
• 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network
• Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

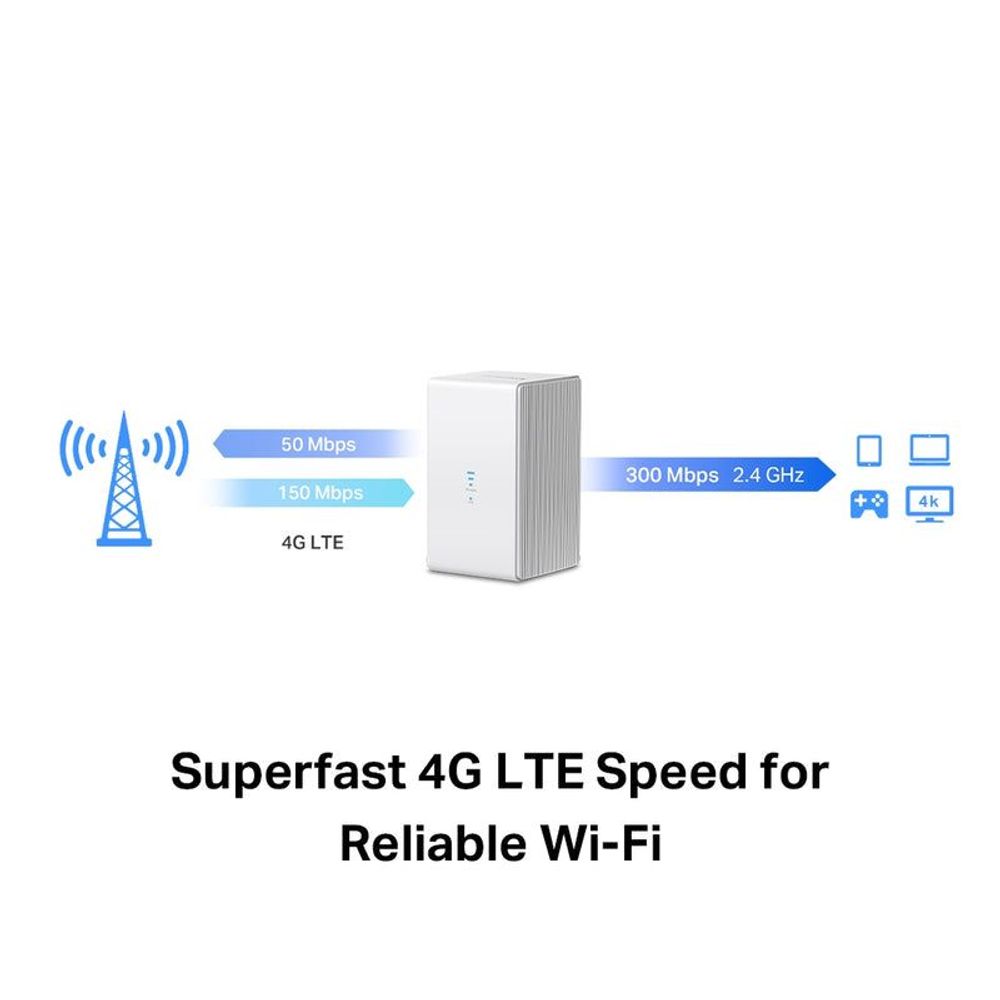

Superfast 4G LTE Speed for Reliable Wi-Fi

Working as a 4G router, the MB110-4G uses 4G LTE technology to achieve super fast speeds up to 150 Mbps download and 50 Mbps upload.

It can also share a Wi-Fi network with maximum speed of 300 Mbps on 2.4 GHz for gaming, streaming, and more.

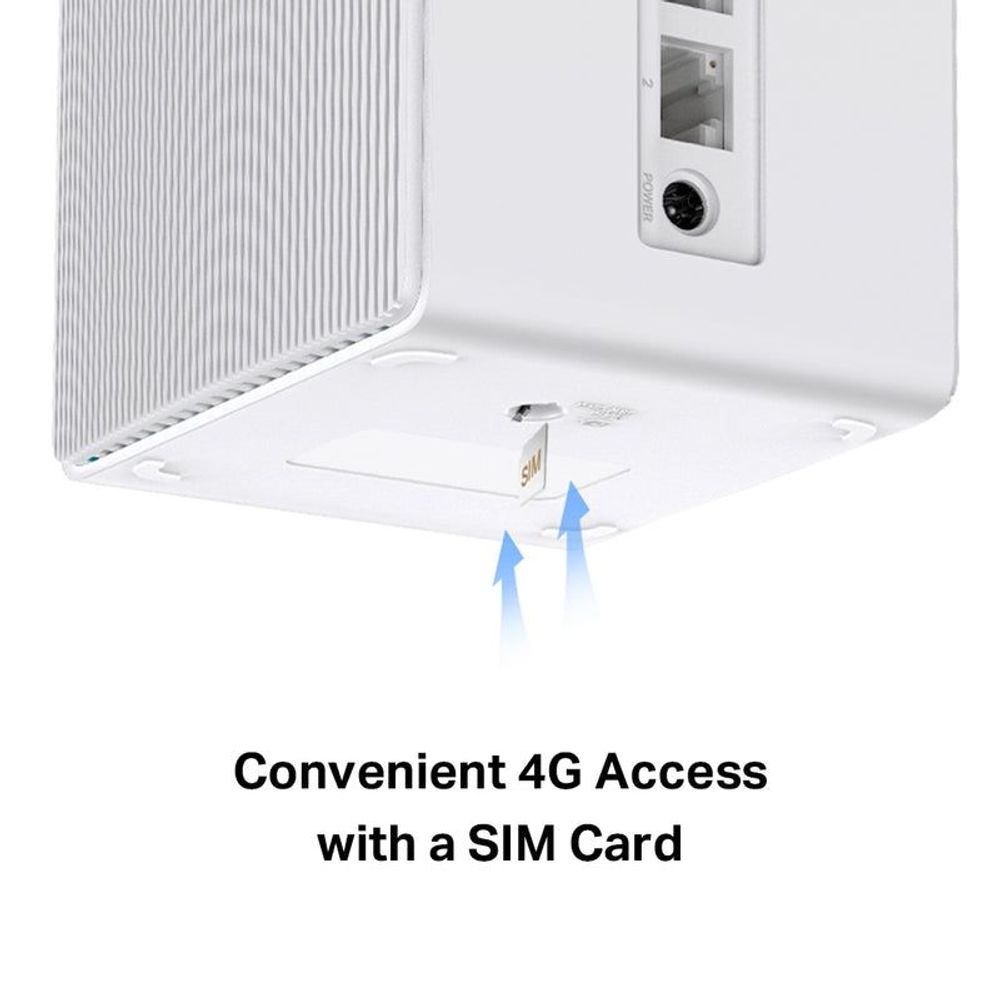

Convenient 4G Access with a SIM Card

Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.

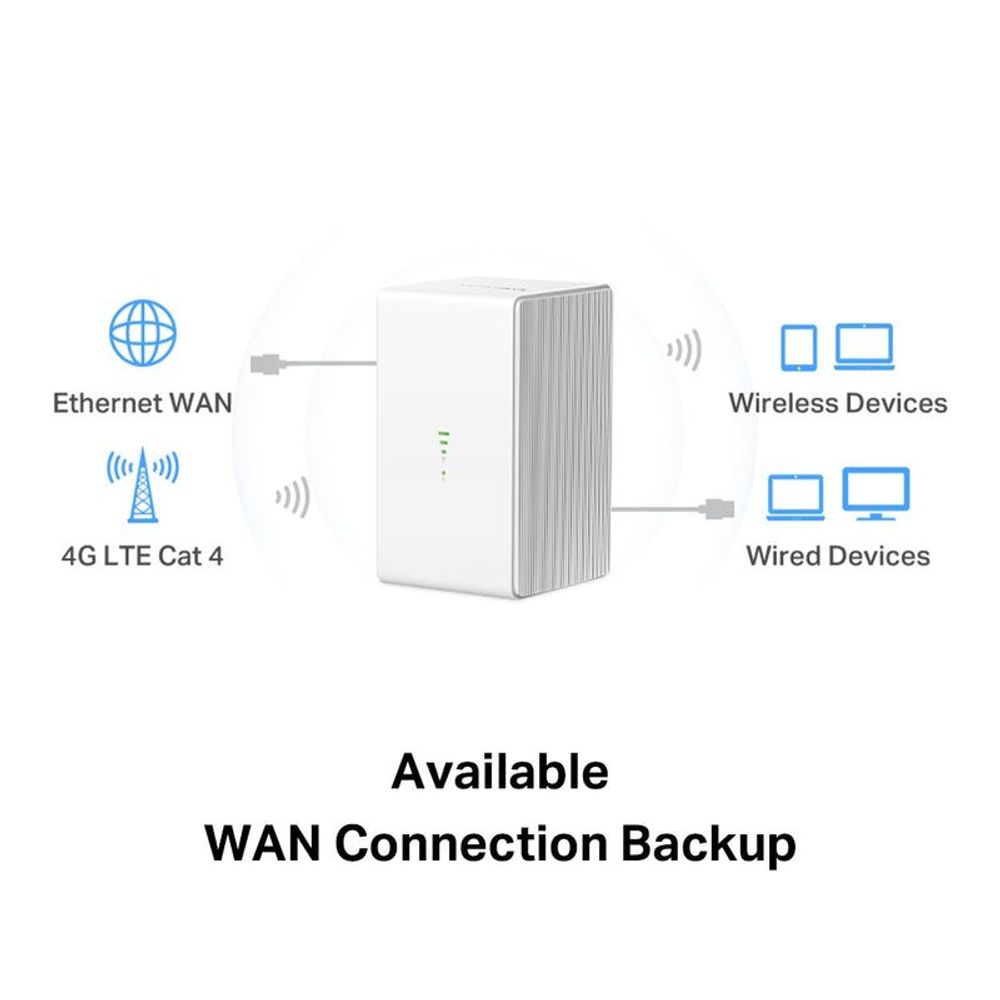

Available WAN Connection Backup

With a fully functional WAN/LAN port, MB110-4G can work as a router which is compatible with cable, fiber, and DSL modems, or provide internet for wired devices.

The reliable access is for up to 32 devices Simultaneously.

Get Wi-Fi Where You Need It

Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with advanced LTE antennas to deliver a smooth connection. Enjoy the utilize fast and stable Wi-Fi, whether you’re at home or working remote.

Wireless

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.4 GHz

Signal Rate

300 Mbps

Reception Sensitivity

11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmission Power

< 20 dBm (2.4 GHz)

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

Software

DHCP

Server

Hardware

Dimensions (W X D X H)

90×92×150.5 mm

Interfaces

1× 10/100Mbps LAN/WAN Port

1× 10/100Mbps LAN Port

2× 4G/3G External Antenna Ports

1× Nano SIM Card Slot

Button

WPS/Reset Button

Ethernet Ports

1× 10/100 Mbps LAN/WAN Port +

1× 10/100 Mbps LAN

Network Type

EU:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 MHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)

TDD-LTE: B40 (2300 MHz)

HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

Others

Package Contents

300 Mbps Wireless N 4G LTE Router (MB110-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
