Name: MER-HALOH90X-2P - Mercusys Halo H90X AX6000 Whole Home Mesh WiFi 6 System - 2 Pack
Brand: MERCUSYS
SKU: MER-HALOH90X-2P
Price: 444.35 NZD
Availability: InStock

White Mercusys Halo H90X mesh Wi-Fi 6 units, two-pack

White Mercusys mesh Wi-Fi 6 router with rear port panel and labels

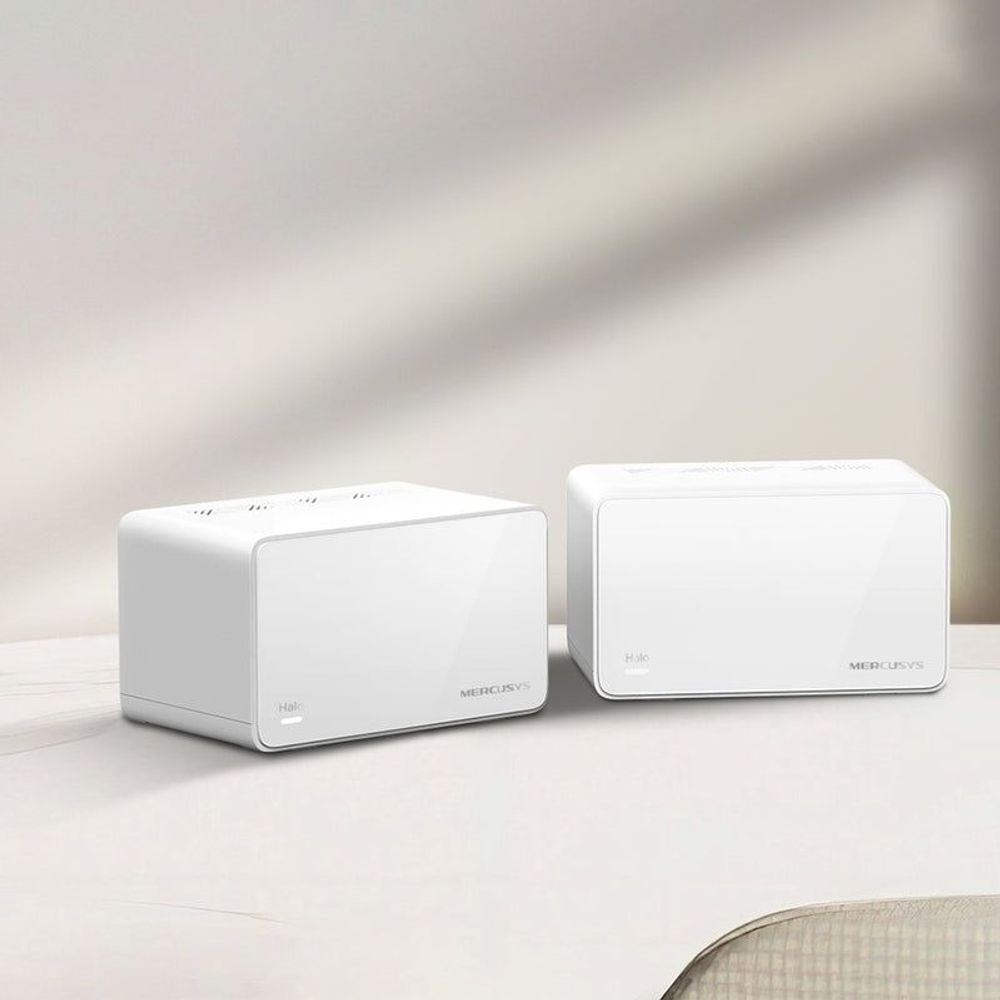

Two white Mercusys mesh Wi-Fi 6 routers, side-by-side

Wi-Fi 6 mesh coverage graphic with two white Mercusys routers

White Mercusys Wi-Fi 6 mesh router shown with dual-band speed graphic

Whole-home Wi-Fi 6 mesh system graphic with white Mercusys routers

Red Mercusys AX6000 Wi-Fi 6 mesh system retail box, two-pack set

MER-HALOH90X-2P - Mercusys Halo H90X AX6000 Whole Home Mesh WiFi 6 System - 2 Pack

MER-HALOH90X-2P

$444.35

Tax included.

5 items available

Select quantity

Description

Halo H90X

AX6000 Whole Home Mesh WiFi 6 System

Dual Band WiFi 6 Speeds up to 6000 Mbps – 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz.†
Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.‡
Whole Home Coverage – Blanket up to 550 m² with high-speed WiFi, eliminating WiFi dead zones at your home.†
Connect over 150 Devices – Provide fast and stable connections to over 150 devices.†
Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and content.
2.5 Gbps Multi-Gig Ports – 1× 2.5 Gpbs and 2× Gigabit ports per Halo unit for lightning-fast wired connections.**

*Please note that the Halo H series and S series cannot work together.

Dual Band Wi-Fi 6 Speeds up to 6000 Mbps

Armed with Wi-Fi 6 , it improves virtually every aspect of your network: speed, efficiency, and support capacity. ^△

A Whole Home WiFi Solution

Nothing’s worse than unreliable connections and internet speeds unable to keep up with your digital lifestyle. Halo works as a unified system to guarantee a strong WiFi signal in every corner of your home, providing an incredibly fast and stable network experience. Interruption and buffering will be a thing of the past.^†

True Seamless Roaming with One Unified Network

The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging WiFi when you’re walking around the house. ^‡

Ultra-Fast Speed with Multi-Gig Port

A 2.5 Gbps port and 2× Gigabit ports allow you to take full advantage of your broadband speed. Plug your PCs, smart TVs, game consoles or NAS devices into the ports for blazing-fast wired connections.

MERCUSYS App Helps You Set Up in Minutes

Without understanding technical knowledge or reading installation instructions in advance, just follow the on-screen directions with the MERCUSYS app to set up your mesh network in minutes.

Powerful Parental Controls

Easily manage your kids’ online time and content to create a safe and healthy online environment.

Create User Profiles

Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.
Online Time Limits
Block Inappropriate Websites
Pause Internet Connection

Improved Capacity

Enhanced by WiFi 6, featuring with OFDMA and MU-MIMO technology, Halo H90X allows you to connect over 150 devices. Enjoy a more efficient network that loads faster without dragging down performance. ^†

150⁺
Devices

Easily Extend Your Coverage

The Halo Whole Home WiFi kit includes multiple units to fit any type of your house. If that’s not enough, you can expand Mesh WiFi coverage anytime by simply adding more Halos.^*

Internet

H90X
Work as the main router

H90X
Works as a satellite

H80X

H50G

5 GHz

2.4 GHz

Optional Gigabit Ethernet Backhaul

*Please note that the Halo H series and S series cannot work together.

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Seamless roaming requires clients to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device. △Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, HE160, BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. This product may not support all the mandatory features of IEEE 802.11AX specifications. Further software upgrades for feature availability may be required. §Use of WPA3 requires clients to also support WPA3. *Please note that the Halo H series and S series cannot work together. Halo H90X is compatible with other units from the Halo H series to form a Mesh network. **All WAN/LAN ports will operate as either WAN or LAN ports. 2.5 Gbps internet speeds require compatible service plans and equipment. 2.5 Gbps and Gigabit ports cannot be concurrently configured as WAN ports.

Wireless

Wireless Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

Signal Rate

4804 Mbps on 5 GHz, 1148 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS11:-66dBm
11ax HE40 MCS11:-62.5dBm

5GHz:
11a 6Mbps:-94.5dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72.5dBm
11ax HE80 MCS11:-59dBm
11ax HE160 MCS11:-55dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

Software

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,
5 GHz Guest Network

Hardware

Dimensions (W X D X H)

5.9 × 3.7 × 3.4 in(150 × 94 × 86.7 mm))

Interfaces

1× 2.5 Gbps Port + 2× Gigabit Ports (WAN/LAN auto-sensing)

Button

Reset button

Others

Package Contents

3-pack

3× Halo H90X Units
1× RJ45 Ethernet Cable
3× Power Adapters
Quick Installation Guide

2-pack

2× Halo H90X Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

Warranty

Brand

MERCUSYS

Restock ETA (if applicable)

Product Details

Specifications

MERCUSYS
