Name: MER-HALOH80X-3P - Mercusys Halo H80X AX3000 Whole Home Mesh WiFi 6 System - 3 Pack
Brand: MERCUSYS
SKU: MER-HALOH80X-3P
Price: 609.95 NZD
Availability: OutOfStock

Mercusys Halo H80X mesh Wi-Fi nodes, 3-pack, white compact router units

Mercusys Halo H80X mesh Wi-Fi nodes with front ports, white, 3-pack

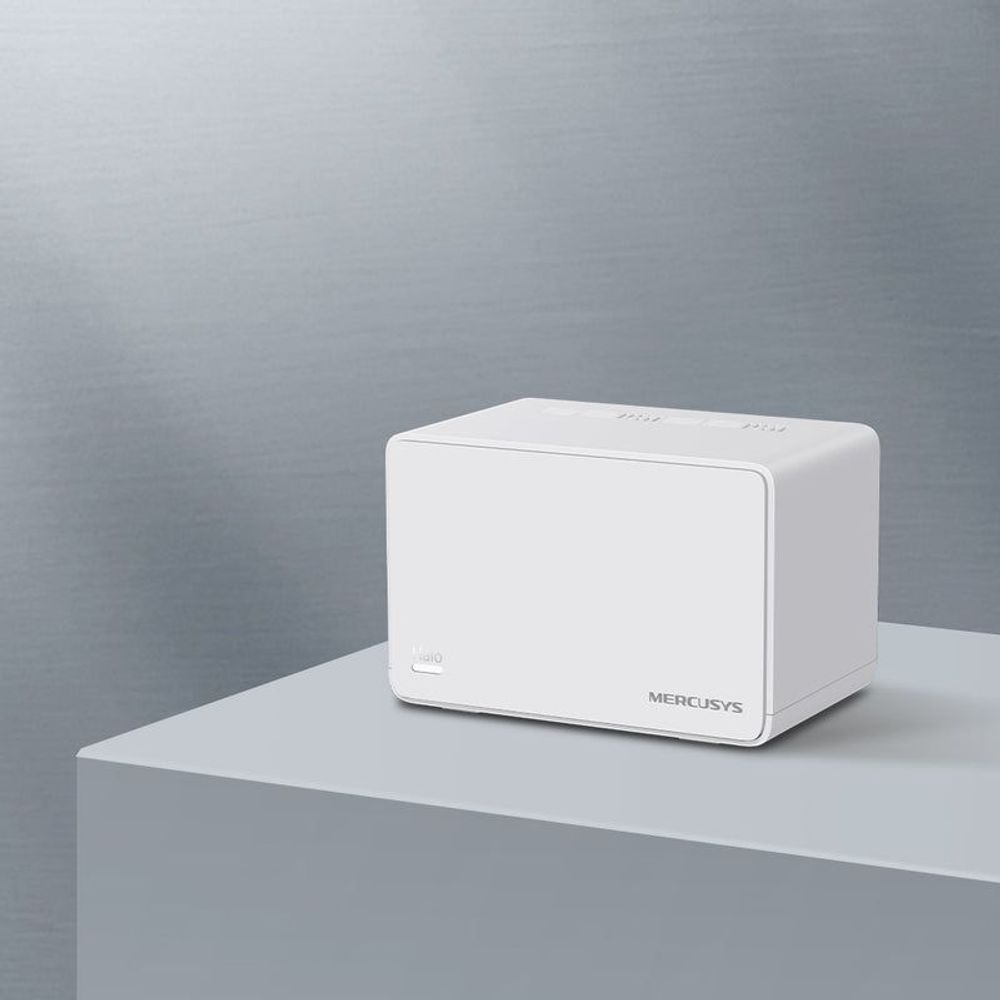

Mercusys Halo H80X mesh Wi-Fi node, white compact unit

Wi-Fi 6 mesh system feature card showing coverage up to 7000 ft² / 650 m²

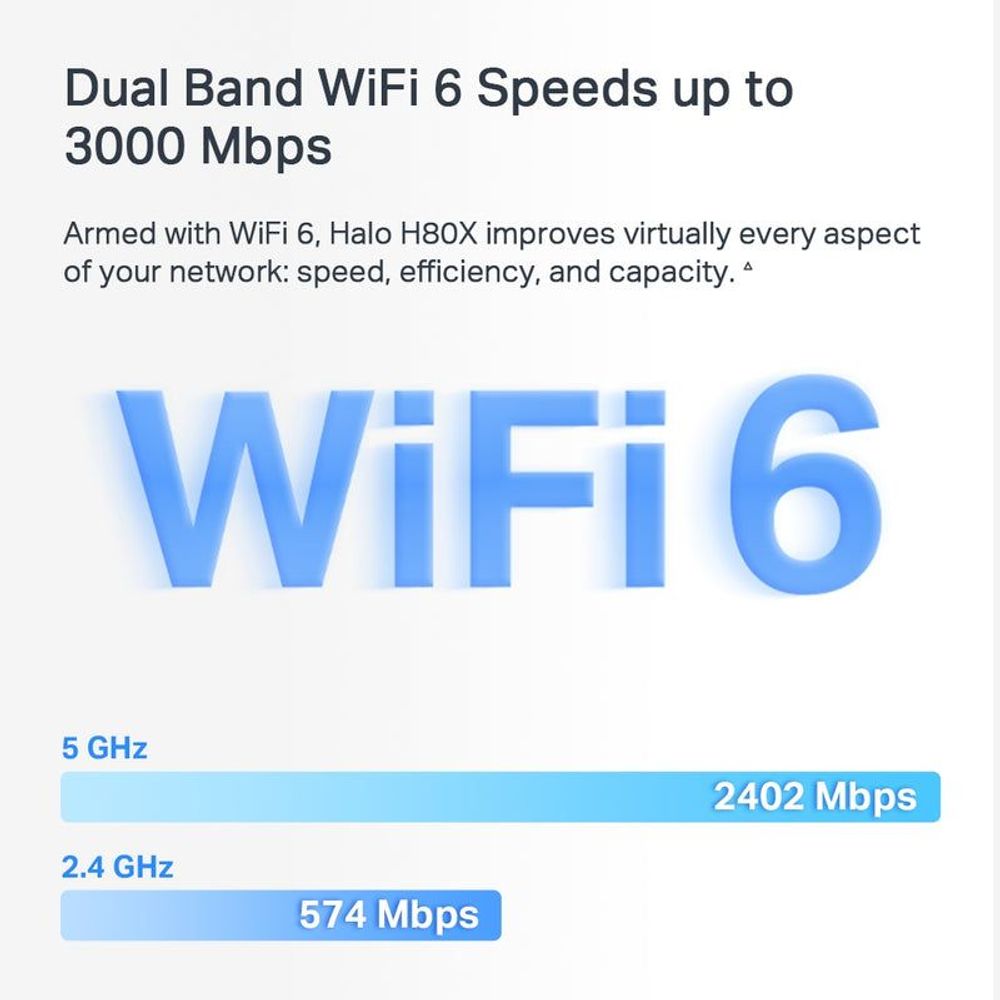

Wi-Fi 6 mesh speed chart with Dual Band up to 3000 Mbps

Wi-Fi 6 mesh feature icons for OFDMA, MU-MIMO, 160 MHz channels

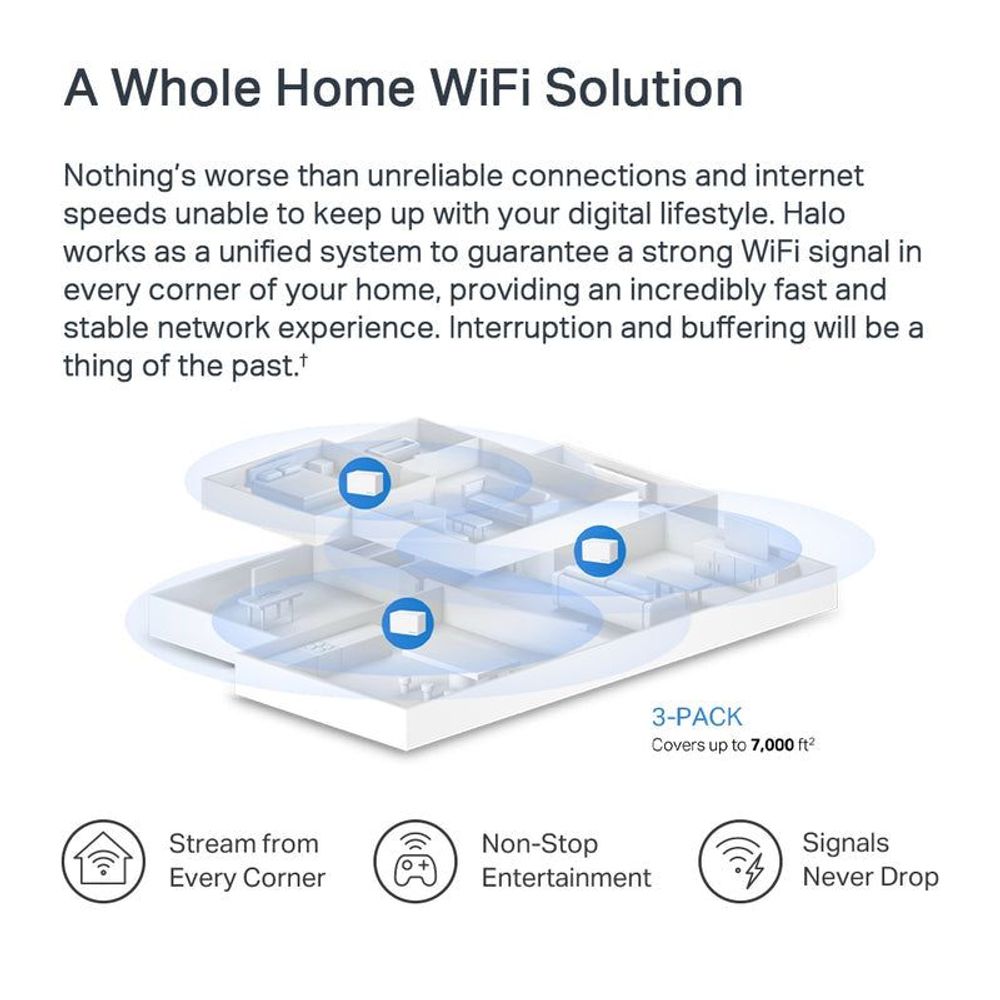

Whole-home Wi-Fi solution infographic with 3-pack coverage up to 7000 ft²

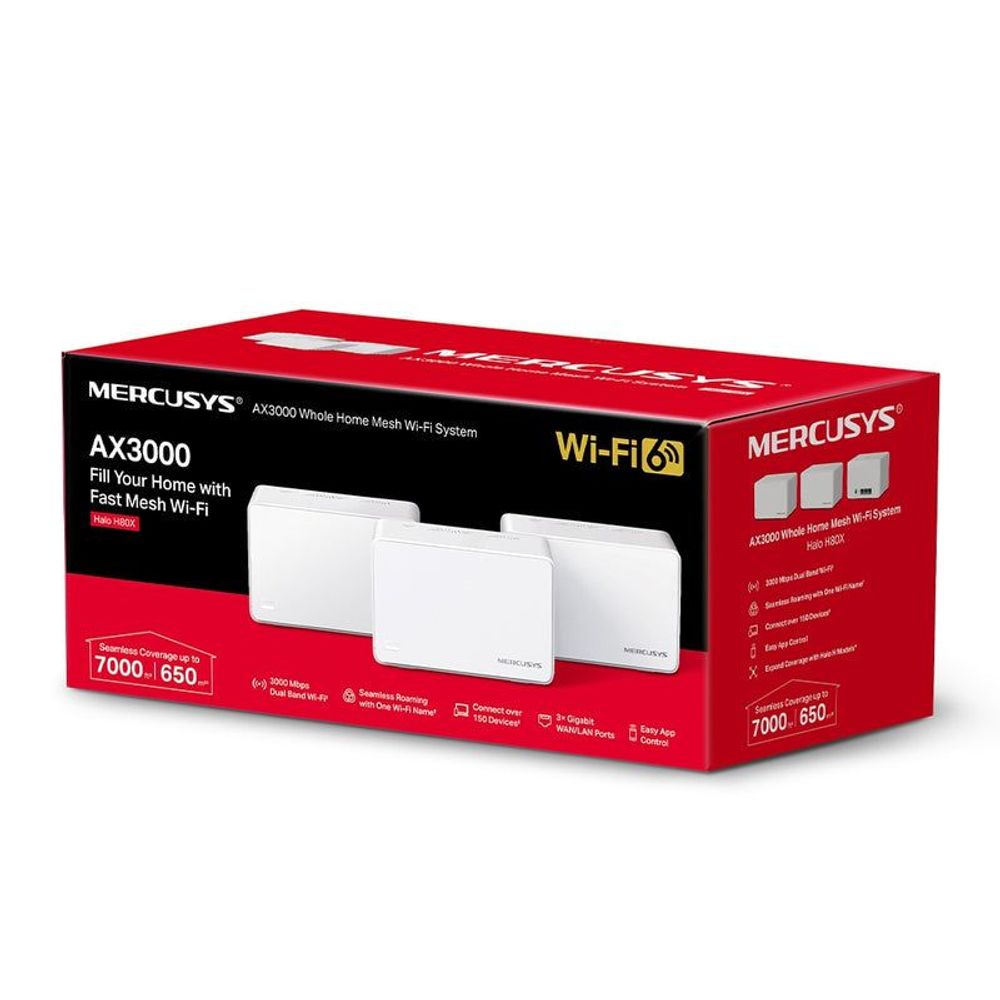

Mercusys Halo H80X AX3000 Wi-Fi 6 mesh system 3-pack retail box, red

MER-HALOH80X-3P - Mercusys Halo H80X AX3000 Whole Home Mesh WiFi 6 System - 3 Pack

MER-HALOH80X-3P

$609.95

Tax included.

Out of stock

Select quantity

Description

Halo H80X

AX3000 Whole Home Mesh WiFi 6 System

Dual Band WiFi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.‡
Whole Home Coverage – Blanket up to 7,000 ft² (650 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.†
Connect over 150 Devices – Provide fast and stable connections over 150 devices.†
Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections.**

*Please note that the Halo H series and S series cannot work together.

Wireless

Wireless Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:

11g 6Mbps:-96.5dBm

11g 54Mbps:-78dBm

11AX HE20 MCS0:-96.5dBm

11AX HE20 MCS11:-65dBm

11AX HE40 MCS0:-93.5dBm

11AX HE40 MCS11:-63dBm

5GHz:

11a 6Mbps:-96dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74.5dBm

11ac VHT40 MCS9:-70.5dBm

11ac VHT80 MCS9:-66.5dBm

11AX HE20 MCS11:-66dBm

11AX HE40 MCS11:-63dBm

11AX HE80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

Software

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,
5 GHz Guest Network

Hardware

Dimensions

5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)

Interfaces

3× Gigabit Ports per Halo Unit
(WAN/LAN auto-sensing)

Button

Reset button

Others

Package Contents

3-pack

3× Halo H80X Units
1× RJ45 Ethernet Cable
3× Power Adapters
Quick Installation Guide

2-pack

2× Halo H80X Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

Warranty

Brand

MERCUSYS

Restock ETA (if applicable)

Product Details

Specifications

MERCUSYS
HeadingMER-HALOH80X-3P - Mercusys Halo H80X AX3000 Whole Home Mesh WiFi 6 System - 3 Pack

Description

Halo H80X

AX3000 Whole Home Mesh WiFi 6 System

Dual Band WiFi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.‡
Whole Home Coverage – Blanket up to 7,000 ft² (650 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.†
Connect over 150 Devices – Provide fast and stable connections over 150 devices.†
Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections.**

*Please note that the Halo H series and S series cannot work together.

Wireless

Wireless Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:

11g 6Mbps:-96.5dBm

11g 54Mbps:-78dBm

11AX HE20 MCS0:-96.5dBm

11AX HE20 MCS11:-65dBm

11AX HE40 MCS0:-93.5dBm

11AX HE40 MCS11:-63dBm

5GHz:

11a 6Mbps:-96dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74.5dBm

11ac VHT40 MCS9:-70.5dBm

11ac VHT80 MCS9:-66.5dBm

11AX HE20 MCS11:-66dBm

11AX HE40 MCS11:-63dBm

11AX HE80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

Software

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,
5 GHz Guest Network

Hardware

Dimensions

5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)

Interfaces

3× Gigabit Ports per Halo Unit
(WAN/LAN auto-sensing)

Button

Reset button

Others

Package Contents

3-pack

3× Halo H80X Units
1× RJ45 Ethernet Cable
3× Power Adapters
Quick Installation Guide

2-pack

2× Halo H80X Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
