Name: MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over Coax - High
Brand: MDS Link
SKU: MGC-2.5-H
Price: 175.95 NZD
Availability: InStock

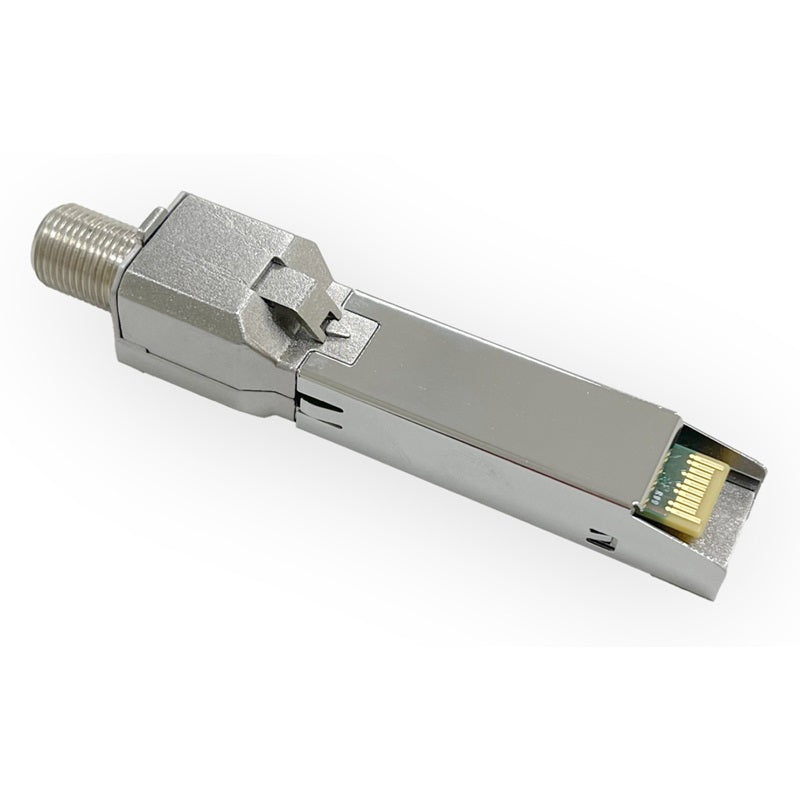

Gray SFP transceiver module with threaded coax connector and gold contact edge

MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over Coax - High

MGC-2.5-H

$175.95

Tax included.

14 items available

Select quantity

Description

MDSlink MGC-2.5-H MaGiC SFP – MoCA SFP 2.5Gbps Full Duplex over Coax – High

Description

MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over Coax - High

MDSlink MGC-2.5-H MaGiC SFP - MoCA SFP 2.5Gbps Full Duplex over 75 Ohm Coax High. The MaGiC-SFP (Multi-Gigabit over Coax, Small Form-factor Profile Pluggable) is the most cost-effective solution for last mile connectivity. MaGIC-SFP uses existing coaxial cable in the home and/or building, is easy to install and works with existing network equipment. MaGIC-SFP extends fiber and coaxial based networks, and has been tested to symmetrical data rates of up to 2.5Gbps.

Note: For MikroTik 2.5G to function the switch must support 2.5G forced/fixed with auto negotiate off

Features

MaGiC-SFP offers up to 2.5Gbps of symmetrical data
Plugs into SFP+ cage found in gateways, ONU’s, Ethernet switches, APs and media converters, that support 1000BaseT/SGMII
SFP/+ must support 2 watts
Simple to install, fast to deploy, highly reliable
No management software.

Details
Manufacturer's Code	MGC-2.5-H (MGRF-2G)
support MoCA 2.5	Backward interoperable with MoCA 2.0, 1.5 and 1.0
Interfaces	SFP+ Interface Port, F-Type Connecter
Regulatory Approvals	FCC, CE, UL, CSA
Protection	OCP, OVP and SCP
Max PER	1e-6 / 1e-8
Latency	<6.1mS/<3mS(LLF)
Max Transmit Power	4dBm
Receiver Sensitivity	-55dBm
RF Interface	F- Type Connector
RF Impedance	75 E
RF Frequency Band	400 MHz – 1675 MHz
Modulation	Up to 1024 QAM
Throughput	Up to 1.0Gbps - 2.5Gbps
