Name: MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - Low
Brand: MDS Link
SKU: MGC-1G-L
Price: 159.85 NZD
Availability: InStock

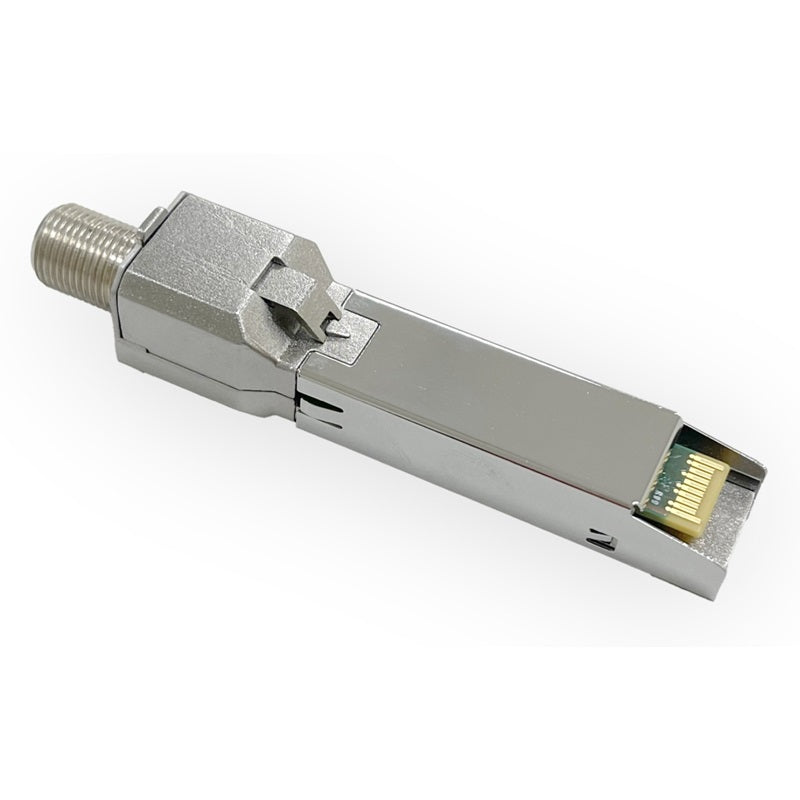

Grey SFP transceiver module with coax screw connector and gold edge contact

MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - Low

MGC-1G-L

$159.85

Tax included.

2 items available

Select quantity

Description

MDSlink MGC-1G-L MaGiC SFP – MoCA SFP 1Gbps Full Duplex over Coax – Low

Description

MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over Coax - Low

MDSlink MGC-1G-L MaGiC SFP - MoCA SFP 1Gbps Full Duplex over 75 Ohm Coax - Low. The MaGiC-SFP (Small Form-factor Pluggable) is the most cost-effective solution for last mile connectivity. MaGIC-SFP uses existing twisted pair wiring in the home and/or building, is easy to install and works with existing network equipment. MaGiC-SFP extends fiber and RF coaxial-based networks and has been tested to symmetrical data rates of up to 1.7 Gbps.

Features

Works over coaxial cable regardless of type or age. Works over RG59, RG6, RG7 and RG11
Range up to 300m

Details
Manufacturer's Code	MGC-1G-L (MGRF-1G)
support MoCA 2.5	Backward interoperable with MoCA 2.0, 1.5 and 1.0
Interfaces	SFP Interface Port, F-Type Connecter
Regulatory Approvals	FCC, CE, UL, CSA
Protection	OCP, OVP and SCP
Max PER	1e-6 / 1e-8
Latency	<6.1mS/<3mS(LLF)
Max Transmit Power	4 dBm
Receiver Sensitivity	-55 dBm
RF Interface	F- Type Connector
RF Impedance	75 E
RF Frequency Band	400 MHz – 1675 MHz
Modulation	Up to 1024 QAM
Throughput	Up to 1.0 Gbps
