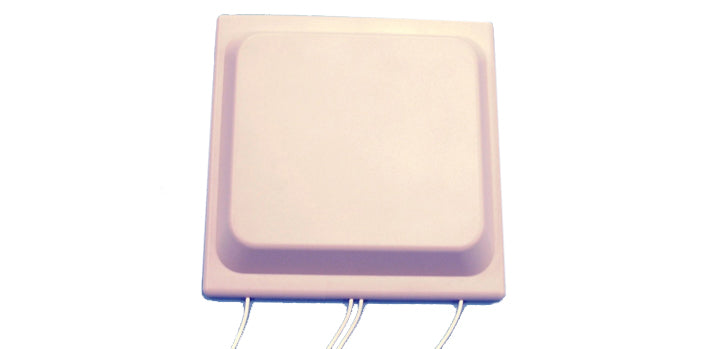

Name: MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Degree Sector Antenna
Brand: Mars Antennas
SKU: ANT-268
Price: 281.75 NZD
Availability: InStock

MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Degree Sector Antenna

ANT-268

$281.75

Tax included.

In stock, ready to be shipped

Select quantity

Description

MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Deg Sector Antenna

The MARs 2.3-2.7 GHz & 4.9-6.1 GHz Dual Band MIMO Applications 120 Deg Sector Antenna with Pole Mount-22. MARS Dual Band Sector antenna provides coverage of 2.3 to 2.7 GHz & 4.9 to 6.1 GHz in a single antenna radome.

Features

Simultaneous coverage of 802.11 a, b, g, e, n, ac, ax, WiMAX & 4.9 GHz Public Safety Bands
Light weight and durable construction.
UV protected radome made of plastic.

Details
Manufacturer's Product Code	MA-WE2458-MIMO4-5B
Frequency Range	2.3-2.7 GHz and 4.9-6.1 GHz
GAIN	4 x 5 dBi @ 2.4GHz, 4 x 5 dBi @ 5GHz
VSWR typ	1.5 : 1
VSWR, max	2 : 1
Polarization	Double dual Slant ±45deg
3 dB Beam-Width, H-Plane, typ	120deg
3 dB Beam-Width, E-Plane, typ	70deg
Input power, max	20 Watt
Input Impedance	50 Ohm
Dimensions (HxWxD)	200 x 200 x 33 mm (7.9" x 7.9" x 1.25")
Weight	260 gr.
Connectors	RA RP-SMA Male
Back Plane	Aluminum; protected through chemical passivation
Radome	UV Protected Polycarbonate
Mount	MNT-22Z Included
Operating Temp Range	-40°C to +70°C
Vibration	According to IEC 60721-3-4
Flammability	UL94
Humidity	ETS 300 019-1-4, EN 302 085 (annex A.1.1)

Details
Pole Mount	Yes, MNT-22 Included

Warranty

1 Year

Brand

Mars Antennas

Restock ETA (if applicable)

Product Details

Specifications

Mars Antennas
HeadingMARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Degree Sector Antenna

Description

MARS 2.3-2.7 GHz and 4.9-6.1 GHz Dual Band MIMO 120 Deg Sector Antenna

Features

Simultaneous coverage of 802.11 a, b, g, e, n, ac, ax, WiMAX & 4.9 GHz Public Safety Bands
Light weight and durable construction.
UV protected radome made of plastic.

Details
Manufacturer's Product Code	MA-WE2458-MIMO4-5B
Frequency Range	2.3-2.7 GHz and 4.9-6.1 GHz
GAIN	4 x 5 dBi @ 2.4GHz, 4 x 5 dBi @ 5GHz
VSWR typ	1.5 : 1
VSWR, max	2 : 1
Polarization	Double dual Slant ±45deg
3 dB Beam-Width, H-Plane, typ	120deg
3 dB Beam-Width, E-Plane, typ	70deg
Input power, max	20 Watt
Input Impedance	50 Ohm
Dimensions (HxWxD)	200 x 200 x 33 mm (7.9" x 7.9" x 1.25")
Weight	260 gr.
Connectors	RA RP-SMA Male
Back Plane	Aluminum; protected through chemical passivation
Radome	UV Protected Polycarbonate
Mount	MNT-22Z Included
Operating Temp Range	-40°C to +70°C
Vibration	According to IEC 60721-3-4
Flammability	UL94
Humidity	ETS 300 019-1-4, EN 302 085 (annex A.1.1)
