Name: MARS 16dBi 90deg 5GHz Dual Pol Sector Antenna
Brand: Mars Antennas
SKU: ANT-144
Price: 339.25 NZD
Availability: InStock

MARS 16dBi 90deg 5GHz Dual Pol Sector Antenna

ANT-144

$339.25

Tax included.

In stock, ready to be shipped

Select quantity

Description

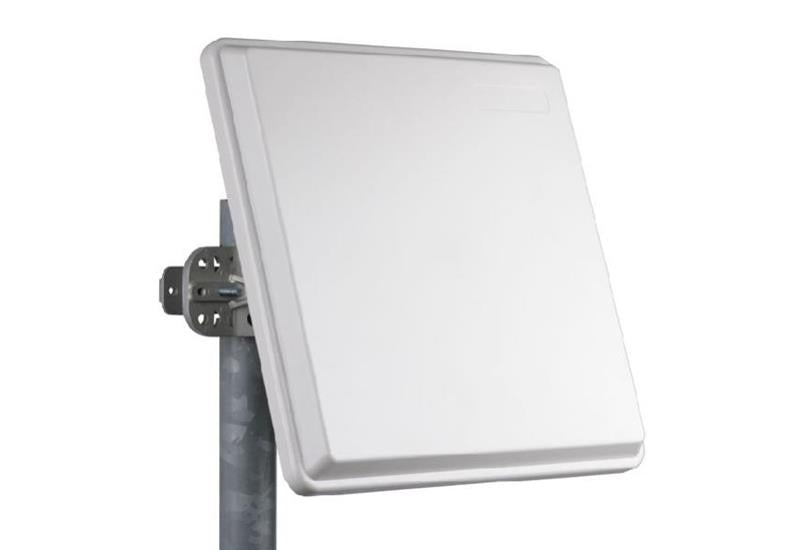

Mars 16dBi 90deg 5GHz Dual Polarized Broadband Sector Antenna MA-WD56-DP16B

The MARS 16dBi 90° 4.9GHz-6.1GHz Broadband Dual Polarized Sector Antenna (MA-WD56-DP16B) provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, Public Safety, Municipal MESH Networks and Point-to-Multi-Point applications.

Features

Stable performance with 16 dBi of gain
Compact size allowing for easy blending with any environment
Tilt mount allowing for quick and easy installations
UV protected radome suitable for harsh environment installations
Antenna Mount MNT-22 included

Details
Manufacturer's Product Code	MA-WD56-DP16B
Frequency Range	4.9-6.1 GHz
Gain	16 dBi
Polarisation	Vertical and Horizontal
Vertical Beamwidth	8deg
Horizontal Beamwidth	90deg
Connector Type	2x N-Type Female
Dimensions	370 x 370 x 40 mm
Pole Mount Diameter	30-63mm

Details
Pole Mount	Yes, MNT-22 Included
Warranty	Standard 12 Month RTB

Warranty

1 Year

Brand

Mars Antennas

Restock ETA (if applicable)

Product Details

Specifications

Mars Antennas
HeadingMARS 16dBi 90deg 5GHz Dual Pol Sector Antenna

Description

Mars 16dBi 90deg 5GHz Dual Polarized Broadband Sector Antenna MA-WD56-DP16B

Features

Stable performance with 16 dBi of gain
Compact size allowing for easy blending with any environment
Tilt mount allowing for quick and easy installations
UV protected radome suitable for harsh environment installations
Antenna Mount MNT-22 included

Details
Manufacturer's Product Code	MA-WD56-DP16B
Frequency Range	4.9-6.1 GHz
Gain	16 dBi
Polarisation	Vertical and Horizontal
Vertical Beamwidth	8deg
Horizontal Beamwidth	90deg
Connector Type	2x N-Type Female
Dimensions	370 x 370 x 40 mm
Pole Mount Diameter	30-63mm
