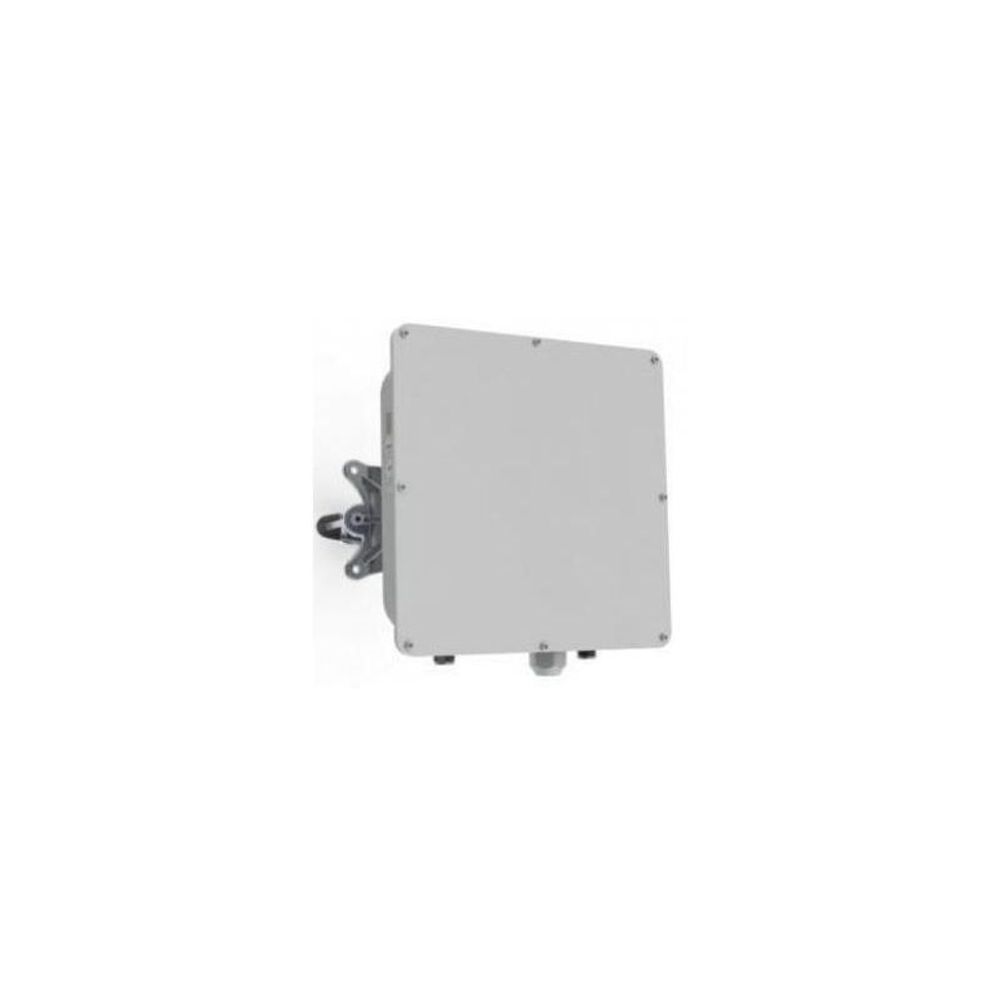

LW-PTP-5-N-PRO - LigoWave PTP-5-N-PRO MIMO Long Range Wireless Bridge

LigowaveSKU: LW-PTP-5-N-PRO

Price:
Sale price$373.75 NZD

Tax included

Stock:
In stock

Description

LigoWave unleashes its highest capacity, license-free PTP device with the release of the LigoPTP PRO series product line. Making use of ground breaking 2x2 MiMo technology and Gigabit Ethernet ports, the LigoPTP 5-23/5-N PRO delivers real aggregate through­put capability of up to 220 Mbps (110 Mbps full-duplex) combined with high packets-per-second performance. Additionally, the new product is compatible with previous LigoPTP 5-23 MiMo and LigoPTP 5-N MiMo models. This product enables carrier-class point-to-point capability, ideal for dedicated access or backhaul applications (in­cluding VOIP or other small packet applications). The Ligo PTP PRO product family couples flexible channel width capability (20 or 40 MHz) and industry-leading proprietary software mechanisms to set the utmost standard in spectral efficiency. The LigoPTP 5-23/5-N PRO products feature either an integrated dual-polarized antenna or two N-type connectors. They are housed in rugged, cast aluminium enclosures. Combining digital signal processing, dual polarization an­tennas and proprietary W-Jet 2 MiMo protocol these bridg­es have a high spectral efficiency of 7.5bit/Hz.
Features
  • Great spectral efficiency (7.5 bit/ Hz)
  • Low packet latency (2ms)
  • Advanced software mechanisms that provide optimal point-to-point connectivity for high-throughput, long distance links
  • Proprietary PTP mechanisms utilize techniques such as Dynamic Time Division Duplexing (TDD) to dynami­cally allocate bandwidth in the direction needed, thus increasing link efficiency and greatly decreasing the impact that distance has on throughput of the link
  • Selective repeat ARQ technology, an enhanced error-correction software mechanism that optimizes data traffic to provide very high throughput over high-bandwidth, long-range links even in the presence of interference.
  • Integrated 30 dB (1000mW) radio which allows building solid long-distance links even with an integrated antenna. The output power on highest modulation (MCS 15) is 24 dBi which is hard to find elsewhere in the market today
  • Gigabit Ethernet port and 802.3af standard support makes the PRO series product line even more flexible. Improvements on the SURGE and ESD protection side make this product ideal for mission critical and harsh-weather condition installations. SURGE and ESD protection was de­signed according to IEC 61000-4-2 (ESD) and IEC 61000-4-5 (SURGE) standards
  • Compatible with LigoWave’s online link calculator and WNMS, a centralized configuration, firmware, and statistics server offered by LigoWave for remote diagnostic and configuration.
Details
Manufacturer's Code LigoPTP 5-N PRO
Tx Power 30dBm
Operating Modes Master / Slave
Frequency Range 5.150 - 5.915 GHz
Real Data Throughput 220 Mbps aggregate (110 Mbps full-duplex)
Max Packets Per Second 60,000
Wireless standards Proprietary W-Jet protocol, 2x2 MIMO
Temperature Range -40°C (-40 F) ~ +85°C (+185 F)
PoE In 802.3af
Max Power consumption 8W
Interfaces 1x 10/100/1000 BaseT, 2x N-Type Female Connectors
Number of chains 2x2
IP Rating IP67
Typical Range Up to 100km+ (Antenna Dependent)



Details
Power Supply IEC Power Cord
Power Injector 48VDC 802.3af PoE Included





Specifications





Details
Manufacturer's Code LigoPTP 5-N PRO
Tx Power 30dBm
Operating Modes Master / Slave
Frequency Range 5.150 - 5.915 GHz
Real Data Throughput 220 Mbps aggregate (110 Mbps full-duplex)
Max Packets Per Second 60,000
Wireless standards Proprietary W-Jet protocol, 2x2 MIMO
Temperature Range -40°C (-40 F) ~ +85°C (+185 F)
PoE In 802.3af
Max Power consumption 8W
Interfaces 1x 10/100/1000 BaseT, 2x N-Type Female Connectors
Number of chains 2x2
IP Rating IP67
Typical Range Up to 100km+ (Antenna Dependent)
