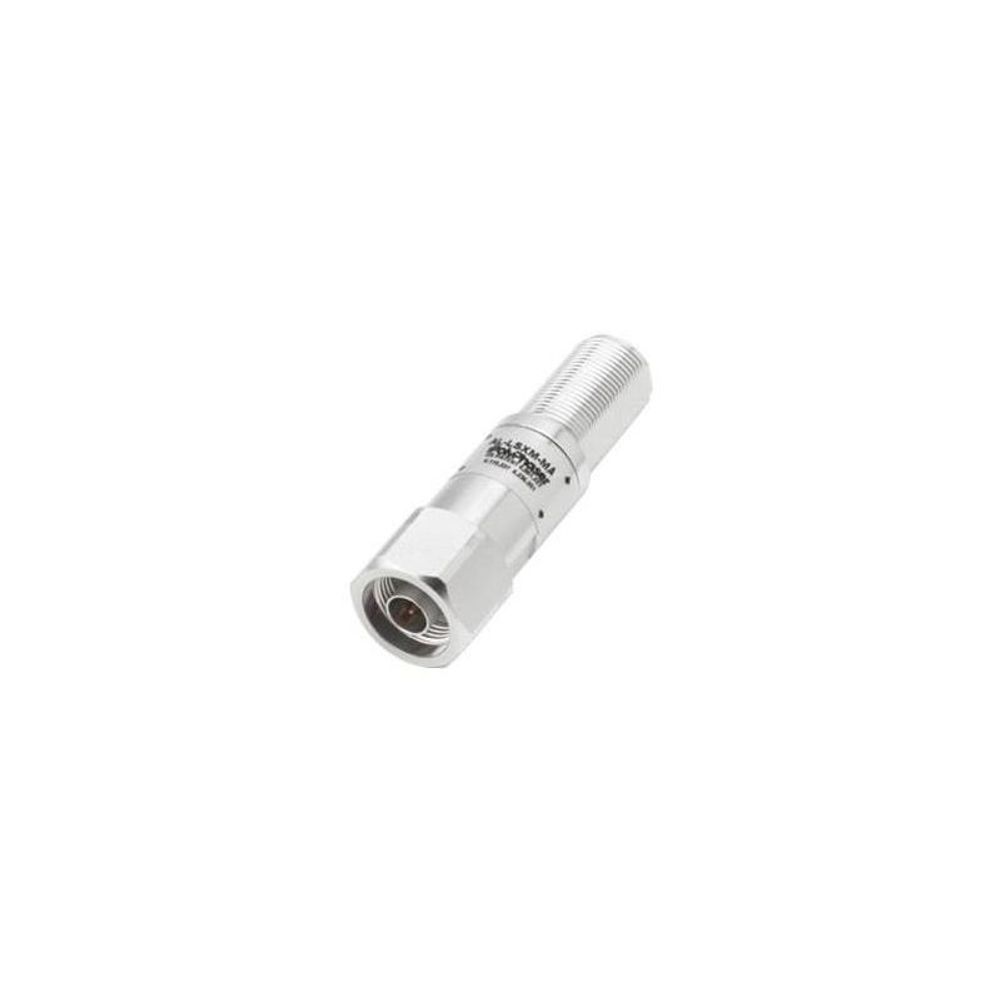

Name: LP-29 - PolyPhaser 2GHz - 6GHz High Pass Filter Lightning Protector N-Male to N-Female Bulkhead
Brand: PolyPhaser
SKU: LP-29
Price: 51.75 NZD
Availability: InStock

LP-29 - PolyPhaser 2GHz - 6GHz High Pass Filter Lightning Protector N-Male to N-Female Bulkhead

LP-29

$51.75

Tax included.

In stock, ready to be shipped

Select quantity

Description

PolyPhaser 2GHz - 6GHz High Pass Filter Lightning Protector N-Male to N-Female Bulkhead. The PolyPhaser AL-LSXM-MA High Pass Filter is a Patented SX radio frequency dc blocked filter lightning protector which is ideal for RF coaxial applications where dc is not required.

Features

RoHS compliant
High surge current capability
Low let-through voltage and throughput energy
DC shorted filter design, no dc continuity between center pins
Ideal use for applications where dc is not required on the coaxial cable
Fully weatherized housing
Elongated female connector allows for mounting through a 1/4" bulkhead or grounding bar
Multi-strike capability

Details
Manufacturer's Product Code	AL-LSXM-MA
Connector Type 1	N-Type Male
Connector Type 2	N-Type Female Bulkhead
Frequency Range	2.0 GHz to 6.0GHz
VSWR	= 1.2 to 1 over frequency range
RF Power	10 W
Insertion Loss	= 0.1 dB Typical, (= 0.2 dB Max)
Dimensions	7.11 x 2.57 x 2.57cm

Details
Warranty	Standard 12 Month RTB

Specifications

Details
Manufacturer's Product Code	AL-LSXM-MA
Connector Type 1	N-Type Male
Connector Type 2	N-Type Female Bulkhead
Frequency Range	2.0 GHz to 6.0GHz
VSWR	= 1.2 to 1 over frequency range
RF Power	10 W
Insertion Loss	= 0.1 dB Typical, (= 0.2 dB Max)
Dimensions	7.11 x 2.57 x 2.57cm
