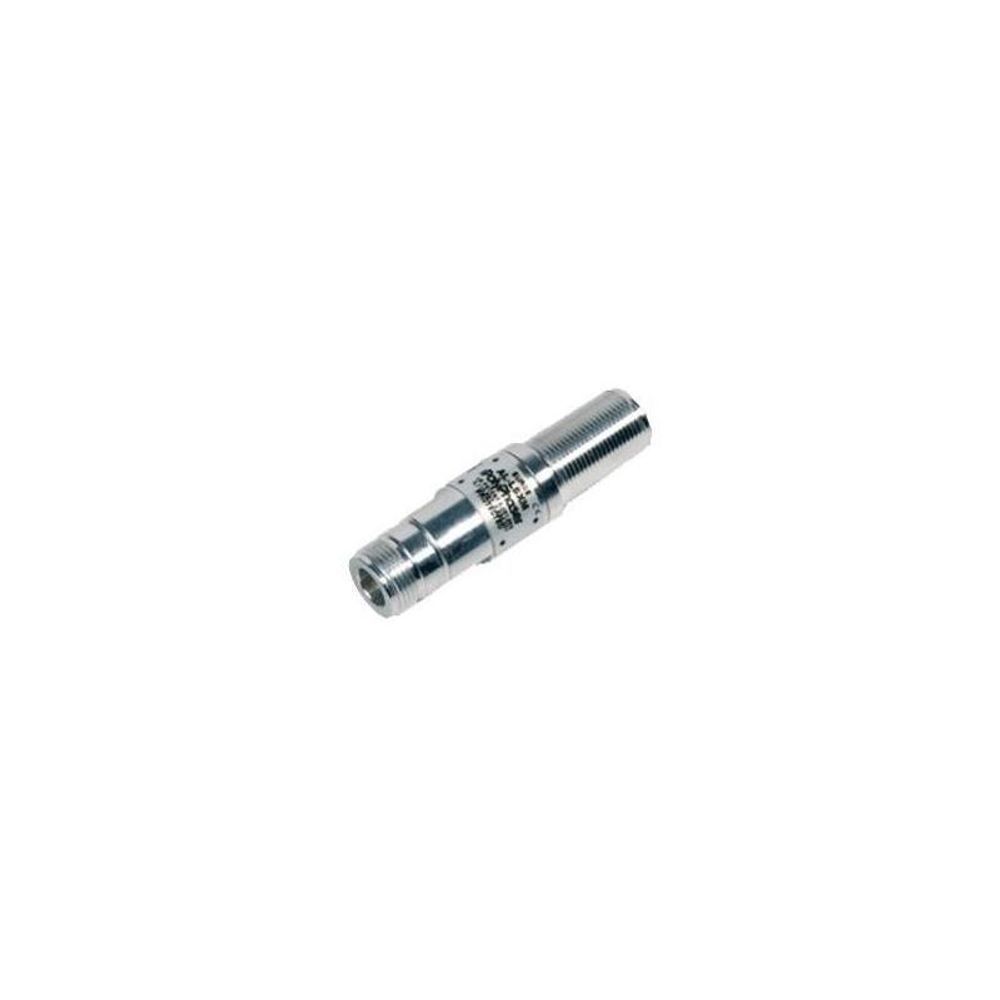

Name: LP-28 - PolyPhaser 2GHz - 6GHz High Pass Filter Coax Lightning Protector
Brand: PolyPhaser
SKU: LP-28
Price: 51.75 NZD
Availability: InStock

LP-28 - PolyPhaser 2GHz - 6GHz High Pass Filter Coax Lightning Protector

LP-28

$51.75

Tax included.

14 items available

Select quantity

Description

PolyPhaser 2GHz - 6GHz High Pass Filter Coax Lightning Protector. The PolyPhaser AL-LSXM High Pass Filter is a Patented SX radio frequency dc blocked filter lightning protector which is ideal for RF coaxial applications where dc is not required.

Features

RoHS compliant
High surge current capability
Low let-through voltage and throughput energy
DC shorted filter design, no dc continuity between center pins
Ideal use for applications where dc is not required on the coaxial cable
Fully weatherized housing
Elongated female connector allows for mounting through a 1/4" bulkhead or grounding bar
Multi-strike capability

Specifications

Details
Manufacturer's Product Code	AL-LSXM
Connector Type 1	N-Type Female
Connector Type 2	N-Type Female Bulkhead
Frequency Range	2.0 GHz to 6.0GHz
Impedance	50 Ohm
VSWR	=1.2 to 1 Typical (1.3 TO 1 Max.)
RF Power	10 W
Insertion Loss	=0.1 dB Typical, (0.2 dB Max)
Dimensions	6.9 x 1.3 x 1.3cm
