Description

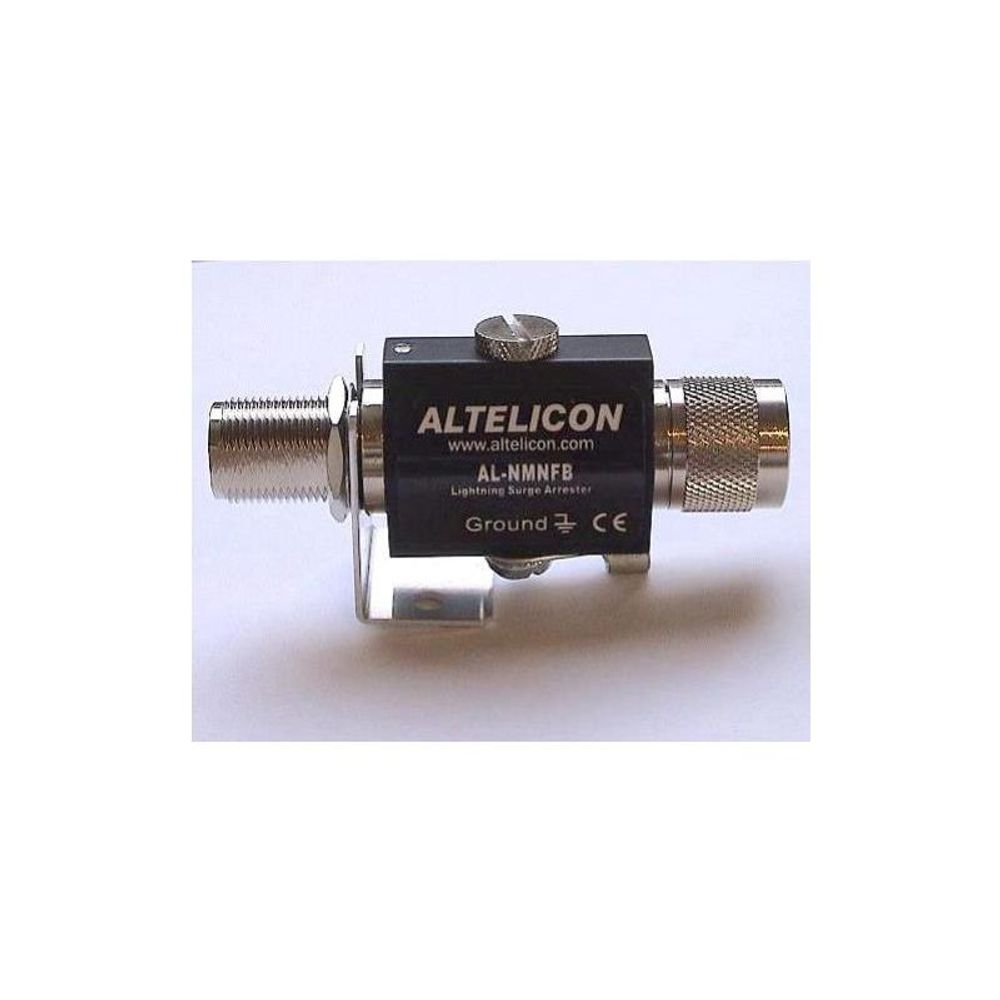

This is a 90V gas discharge tube suppressor featuring wide-band operation up to 3 GHz. This unit features a N-Male to N-Female Bulkhead connector with a rubber O-ring seal for mounting through an enclosure wall or with the included aluminum mounting bracket. This unit is ideal for IEEE 802.11b and 802.11g Wireless LAN applications. Insertion loss 0.4 dB max at 3Ghz. This protector will pass DC, so it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LNAs. Both connector ports of this unit are equally protected.
| Details | |
|---|---|
| Manufacturer's Product Code | AL-NMNFB-9 |
| Connector Type 1 | N-Type Female Bulkhead |
| Connector Type 2 | N-Type Male |
| Replacement Tube | Yes, LPX090 |
| Frequency Range | 0-3GHz |
| Impedance | 50 Ohm |
| Voltage Rating | 90 V ± 20% |
| Details | |
|---|---|
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | AL-NMNFB-9 |
| Connector Type 1 | N-Type Female Bulkhead |
| Connector Type 2 | N-Type Male |
| Replacement Tube | Yes, LPX090 |
| Frequency Range | 0-3GHz |
| Impedance | 50 Ohm |
| Voltage Rating | 90 V ± 20% |
