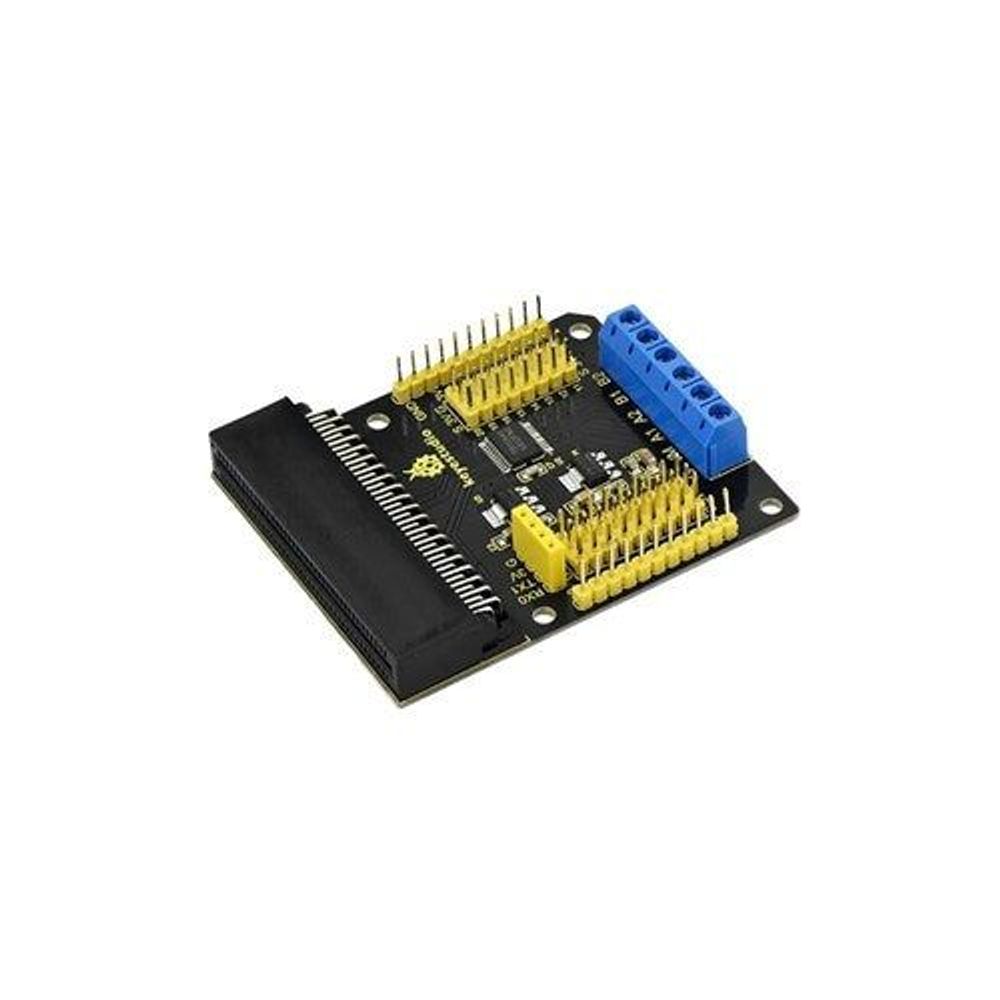

XC4637 This board is a versatile expansion board designed to enhance the capabilities of the BBC Micro: Bit by enabling it to control DC motors and other peripherals. This board is particularly useful for robotics and DIY electronics projects.Key Features Motor Driver Chip: Equipped with the TB6612FNG dual H-bridge motor driver, allowing control of two DC motors. Current Capacity: Each channel supports a continuous current of up to 1.2A, with peak currents of 2A and 3.2A. Motor Control Modes: Supports four modes: Forward, Reverse, Brake, and Stop. PWM Support: Compatible with PWM frequencies up to 100 kHz for precise speed control.Voltage Regulation: Includes integrated 3.3V and 5V voltage regulators, providing stable power outputs for additional modules.3-Pin Interfaces: Features multiple 3-pin headers for easy connection to sensors and other devices.Serial Communication Port: Facilitates connection with Bluetooth modules and other serial devices.

Specifications

Keyes
