Description
Active Optical HDMI Cable PRS3 Series, 4K UHD 18Gbps – Kordz
The Active Optical HDMI Cable AOC cable is incredibly lightweight, flexible and durable and is designed and engineered specifically with Home Technology Professionals and Commercial integrators in mind, whilst the end user will enjoy its performance capabilities to provide 4K resolutions with HDR and more. The design elements that make it stand out from the rest, is the really smooth, thin outer jacket making it easy to pull through joists and studs and the 20kg (44 pounds) pull rating. The connector head-shell has been designed to be incredibly compact, and only 18mm wide, making it easy to pull through 25mm (1”) conduit. It is currently available in lengths of 25.0m & 30.0 meters.
Features
Active Optical Cable (AOC) 25m & 30m, 4K/UHD 18Gbps certified by DPL Labs™
18mm wide connector engineered to fit through a 1”/25mm conduit
Reinforced internals for superior flexibility and pull strength during installation
Lightweight & flexible
No external power requirements – works just like a 1m HDMI Cable
100% of units tested on the production line for electrical continuity on all pins with additional
4K (2160p/60), 4:4:4, 17.82Gbps application test
High Speed, all lengths
LSZH fire rated
5 Year Warranty
DPL Laboratories 4K-18G Deep Colour
DPL Laboratories, Inc. are experts on high-bandwidth digital signalling solutions. The respected DPL 4K Product Certification Program is designed to combat the fears of cable and display manufacturers and end users alike.
Technical Specifications
HDMI CERTIFICATION 25m – 30.0m ACTIVE OPTICAL
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
Supported HDMI Clock: 27-340MHz

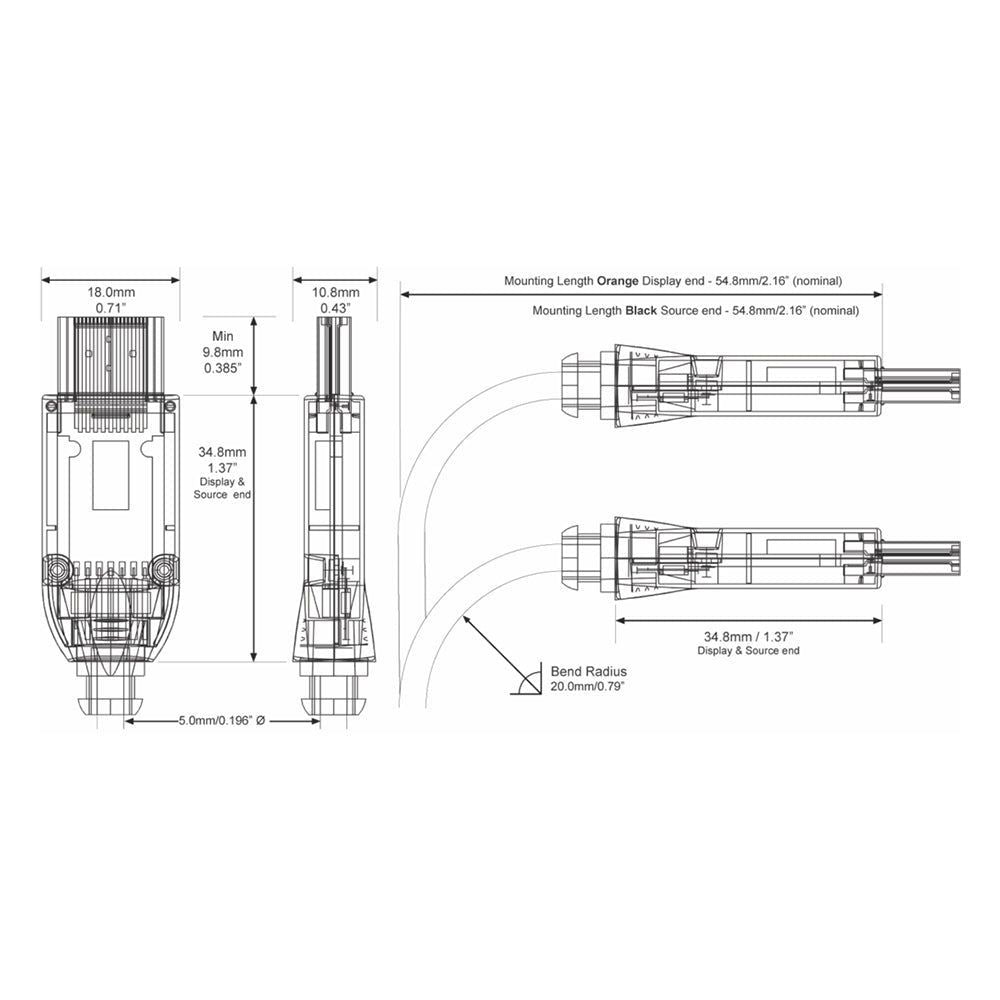

MECHANICAL
Cable Diameter: 5.00mm±0.2mm / 0.19” Ø
Mounting Length: 70.0mm/2.76”
Cable Bend Radius: 20.0mm/0.78”
Retention Force (nom): 9.8N (1kg / 2.2lbs) +10/-5%
CONSTRUCTION
TDMS: 4x Polymer Insulated Glass Fibres
Conductors: 32AWG Tinned copper wire
Insulation on TMDS: Polymer
Insulation on 4C + HEAC Pairs: Solid Polyolefin ? 2.0 relative permittivity
Shielding Overall: AL/Mylar
Cable Jacket Material: LSZH Composite, 25m-30m lengths
HDMI Connector Shell: Premium gauge folded steel, 1?” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15?” 24K Gold plated
Active Technology: Directional, In-shell Optical Light Engine
Termination: Contactless IR induction soldering
HDMI Backshells: Orange & Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly
Product SKUs
K36212-1000-CH 10 Meter
K36212-1500-CH 15 Meter
K36212-2000-CH 20 Meter
K36212-2500-CH 25 Meter
K36212-3000-CH 30 Meter
