Description
Active Copper HDMI Cable PRS3 Series, 4K UHD 18Gbps – Kordz
The K36136- Active Copper HDMI Cable PRS3 Series, 4K UHD 18Gbps – Kordz is a reliable cable designed to provide a high-quality connection. It features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity. It is DPL Certified 4K 18G-DC High Speed with Ethernet, all lengths Spectra 7 Active 7.5m – 12.5m lengths, optimized with VerifEYE™ 18mm wide connector engineered to fit through 1”/25mm conduit. It is UL CMG fire rated in all lengths and comes with a 5 Year Warranty.
Features
DPL Certified 4K 18G-DC
High Speed with Ethernet, all lengths
Spectra 7 Active 7.5m – 12.5m lengths, optimized with VerifEYE™
18mm wide connector engineered to fit through 1”/25mm conduit
Induction soldered pin transitions for benchmark inter-terminal uniformity
Unique grip tab connectors for permanent installations
100% of units tested on the production line for electrical continuity on all pins, with Bit Error Rate (BER) application test
UL CMG fire rated in all lengths
5 Year Warranty
Technical Specifications
HDMI CERTIFICATION 10.0m – 30.0m ACTIVE
HDMI CTS Certification: High Speed with Ethernet
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: ? 6.0Gbpsc, 17.82Gbps agg (4K UHD)
Supported HDMI Clock: 27-340MHz
Construction
Primary Conductors: Solid 24-28AWG OFC, length-dependent
Insulation on TMDS: HDPE
Insulation on 4C + HEAC Pairs: HDPE/Foamed PE/Polyolefin, length-dependent
Shielding on TMDS Pairs: Al/Mylar
Shielding Overall: AL/Mylar + AL braid 80% coverage
Cable Jacket: UL CMG fire-rated PVC
HDMI Connector Shell: Pressed steel with dual grip tabs, 1?” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15?” 24K Gold plated
Termination: Contactless IR induction soldering
HDMI Backshell: Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly
HDMI Active Backshell: Orange & Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly

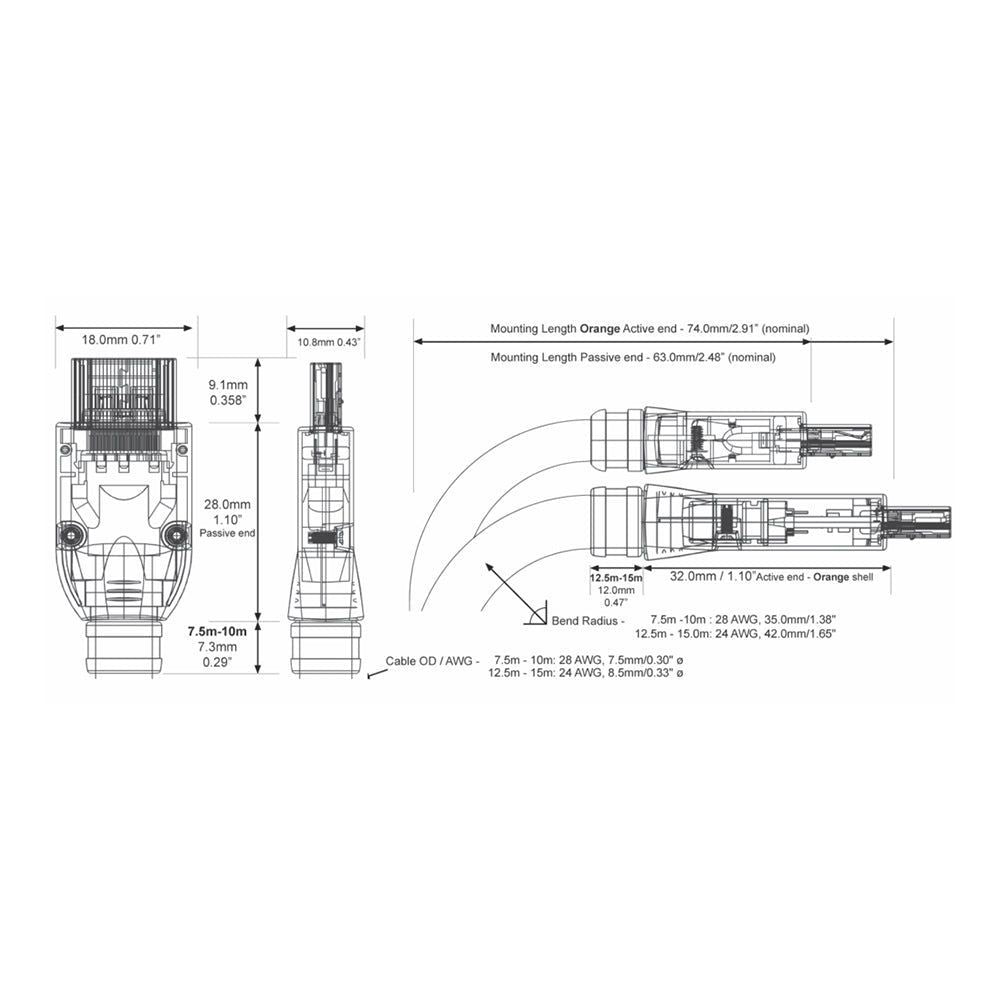

Mechanical
Cable Diameter: 7.5m – 10.0m: 28 AWG, 7.5mm/0.30” ø | 12.5m: 24 AWG, 8.5mm/0.33” ø
Mounting Length: Source End: 63.0mm/2.48” & Display End: 74.0mm/2.91”
Cable Bend Radius: 7.5m – 10.0m: 28 AWG, 35.0mm/1.38” | 12.5m: 24 AWG, 24.0mm/1.65”
Retention Force (nom): 29.7N (3kg / 6.6lbs) +10/-5%
Product SKUs
K36136-0750-CH 7.5 Meter
K36136-1000-CH 10 Meter
K36136-1250-CH 12.5 Meter
