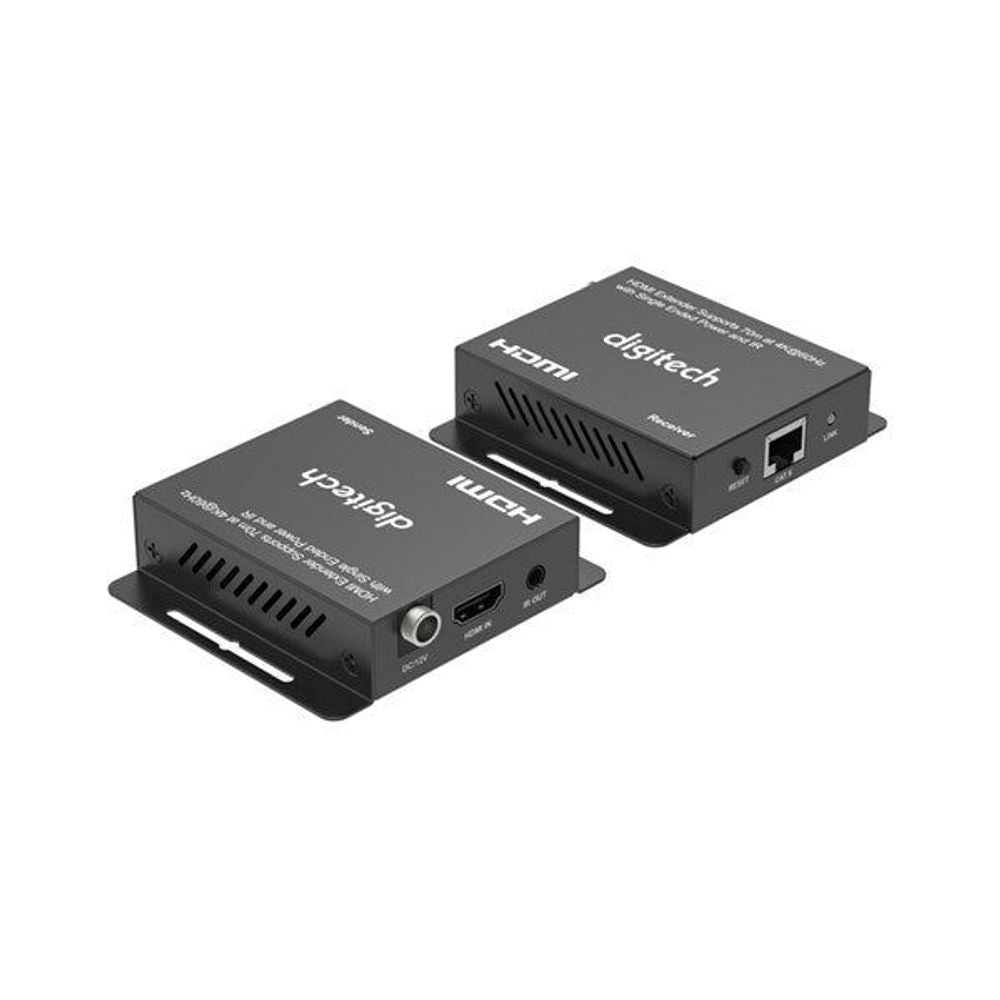

AC1824 The HDMI™ extender is an ideal device for remote viewing, using CAT6 or higher spec network cable.It features an extension function and extends the input of the HDMI™ signal to the remote output up to 70m(230 feet), perfect for point-to-point digital signage applications that require high-quality HDMI™ video up to 4K@60Hz 4:4:4.It also works to extend Infrared IR signals from remote controls, ideal for controlling your video source from your video destination.It features a single-ended power supply enabling either the transmitter or receiver to be powered by a single 12V power supply.Features: Support high resolution up to 4K@60Hz YUV 4:4:4 at 70m. Support HDCP 2.2 and HDCP 1.4. Support High Dynamic Range (HDR) video. Support EDID and HDCP bypass. Support the highest data transfer rate up to 6.0Gbps per channel (18Gbps for all channels). TMDS clock can be up to 600MHz. Support 12bit per channel (36bit all channels) deep color. Support uncompressed audio such as LPCM. Support compressed audio such as DTS, and Dolby Digital. Supports single-ended power supply feature with 12V power transmitting from sender to receiver.In the box: Sender Receiver 12v 1A Mains power supply with 120cm cable and locking barrel plug IR sender with 120cm cable and 3.5mm plug IR receiver with 120cm cable and 3.5mm plug Manual

Specifications

Digitech
