Description

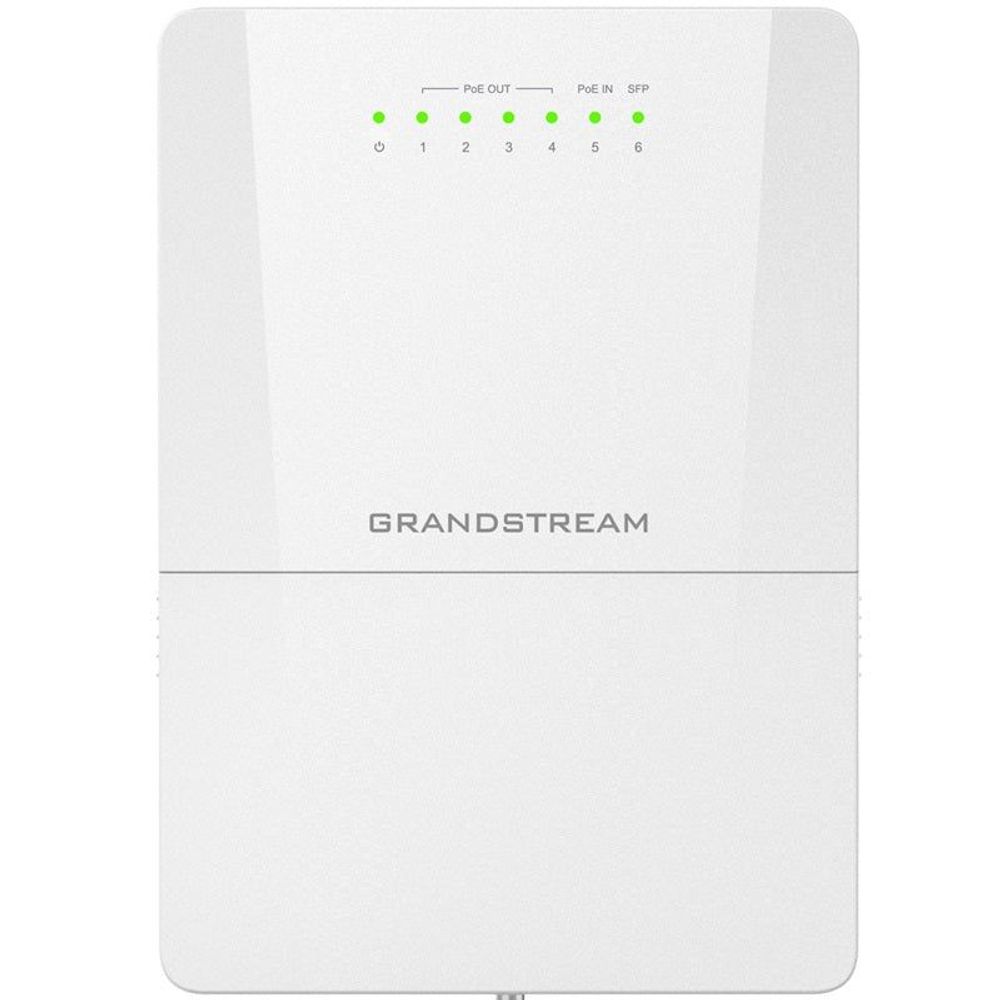

Grandstream GWN7710R Outdoor Layer 2 Lite Managed PoE Switch with SFP. The GWN7710R is a 6-Port (5GE+1SFP) outdoor lite managed PoE switch that features an IP66-rated waterproof and dustproof casing to protect against harsh weather conditions, including rain, snow, and high temperatures.
supports IEEE 802.3 at/af or 24V/48V DC passive PoE out, up to 60W on Port 1 and up to 30W on Port 2-4; supports PoE Watchdog function.
To ensure a stable and powerful network performance, the GWN7710R supports flexible and complex traffic segmentation with global or per port VLANs, provides DSCP/802.1p QoS priority management modes, bandwidth control, and storm control. It provides 4 Gigabit ports that provide passive PoE++ output, 1 Gigabit port with PoE++ input, and one 2.5G SFP port. The GWN7710R can be managed in a variety of ways, including locally through the web user interface, through the cloud with GDMS, and on-premises with GWN Manager. This outdoor lite managed switch supports pole, DIN-rail, and wall-mounted installation to support a variety of outdoor and indoor applications.
supports IEEE 802.3 at/af or 24V/48V DC passive PoE out, up to 60W on Port 1 and up to 30W on Port 2-4; supports PoE Watchdog function.
To ensure a stable and powerful network performance, the GWN7710R supports flexible and complex traffic segmentation with global or per port VLANs, provides DSCP/802.1p QoS priority management modes, bandwidth control, and storm control. It provides 4 Gigabit ports that provide passive PoE++ output, 1 Gigabit port with PoE++ input, and one 2.5G SFP port. The GWN7710R can be managed in a variety of ways, including locally through the web user interface, through the cloud with GDMS, and on-premises with GWN Manager. This outdoor lite managed switch supports pole, DIN-rail, and wall-mounted installation to support a variety of outdoor and indoor applications.
Features
- 5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
- IEEE 802.3 at/af or 24V/48V DC passive PoE out, Up to 60W on Port 1 and up to 30W on Port 2-4; supports PoE Watchdog function
- SFP Fiber Port for long-distance transmission
- DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
- IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
- supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Network Management
- STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
- Built-in QoS allows for prioritization of network traffic
| Details | |
|---|---|
| Manufacturer's Code | GWN7710R-AU |
| Network Protocol | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Communication Ports | 5x Gigabit Ethernet Ports, 1x 1G/2.5G SFP Port |
| Power Supply | 12V-57V DC input or Standard PoE /PoE+/PoE ++ |
| PoE In and PoE Out Ports | PoE In: Port 5; PoE Out: Ports 1 to 4 |
| PoE Output | Standard PoE output Mode (Default), Passive 24VDC or 48VDC output Mode (Configured via UI) |
| PoE Output Power Budget | Powered by Standard PoE In (802.3af/at/bt): 802.3af input: 3W output budget, 802.3at input: 15W output budget, 802.3bt input: 60W output budget; Powered by DC In (12V~57V): DC In>12V: 60W output budget, DC In>24V: 72W output budget, DC In>36V: 100W output budget, Note: When using the DC input, the budget of PoE output depends on the external DC input power |
| Max Output Power Per Port | Standard PoE output Mode: Port 1 - Port 4 up to 30W on each PoE port; Passive PoE output Mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W, Port 2 - Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W; Note: 4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-), 2-Pair: Powered on pins: 4,5(+),7,8(-) |
| Auxillary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 6Gbps |
| Switching Capability | 15Gbps |
| Jumbo Frame | 2K/3K/4K/5K/6K/7K/8K/9K/12K/15K |
| Forwarding Rate | 11.16Mpps |
| Packet Buffer | 4Mb |
| MAC | 8K MAC address capacity |
| VLAN | supports up to 32 VLANs (Out of 4K VLAN IDs), port-based VLAN, 802.1Q VLAN |
| LAG | 3 |
| Multicast | IGMP snooping, Report Message Suppression |
| QoS | Auto prioritization of the incoming port of the packet, supports port priority, 802.1P priority, and DSCP priority, Bandwidth control, Rate limit |
| DHCP | DHCP client |
| Maintenance | Backup and restore, System reboot, Factory reset, Firmware upgrade, support MAC address search, SNMP, LLDP, Monitoring including port statistics, Port mirroring, Cable test, and Ping |
| Security | Storm control, DHCP Snooping, Spanning Tree, Loop prevention, PoE Watchdog |
| Mounting | Pole/Wall-Mount/DIN-Rail |
| LED Indicators | Per device System on: Green, Per Ethernet port Link/Activity: Green, Per Passive PoE out port 48VDC: Orange, Per Passive PoE out port 24VDC: Blue, support LED indicator switch |
| ESD | ± 16kV Air, ± 16kV Contact |
| Environmental | Operating Temperature: -40 to 60 °C (-40 to 140 °F), Storage Temperature: -40 to 70 °C (-40 to 158 °F), Operating Humidity: support IP66 waterproof , Storage Humidity: 10% to 95% Non-condensing |
| Dimensions (LxWxH) | Unit: 210 x 150 x 52mm, Package: 466 x 286 x 258mm |
| Weight | Unit: 0.75KG, Entire Package :1.35 KG |
| Compliance | FCC, CE, RCM, IC |
| Details | |
|---|---|
| Package Content | 1x Switch, Rack-mounting Standard Brackets , 1x QIG,4x assembled screw, 4x expansion screw ,2 x Metal straps,1x Phoenix connector |
Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7710R-AU |
| Network Protocol | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Communication Ports | 5x Gigabit Ethernet Ports, 1x 1G/2.5G SFP Port |
| Power Supply | 12V-57V DC input or Standard PoE /PoE+/PoE ++ |
| PoE In and PoE Out Ports | PoE In: Port 5; PoE Out: Ports 1 to 4 |
| PoE Output | Standard PoE output Mode (Default), Passive 24VDC or 48VDC output Mode (Configured via UI) |
| PoE Output Power Budget | Powered by Standard PoE In (802.3af/at/bt): 802.3af input: 3W output budget, 802.3at input: 15W output budget, 802.3bt input: 60W output budget; Powered by DC In (12V~57V): DC In>12V: 60W output budget, DC In>24V: 72W output budget, DC In>36V: 100W output budget, Note: When using the DC input, the budget of PoE output depends on the external DC input power |
| Max Output Power Per Port | Standard PoE output Mode: Port 1 - Port 4 up to 30W on each PoE port; Passive PoE output Mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W, Port 2 - Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W; Note: 4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-), 2-Pair: Powered on pins: 4,5(+),7,8(-) |
| Auxillary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 6Gbps |
| Switching Capability | 15Gbps |
| Jumbo Frame | 2K/3K/4K/5K/6K/7K/8K/9K/12K/15K |
| Forwarding Rate | 11.16Mpps |
| Packet Buffer | 4Mb |
| MAC | 8K MAC address capacity |
| VLAN | supports up to 32 VLANs (Out of 4K VLAN IDs), port-based VLAN, 802.1Q VLAN |
| LAG | 3 |
| Multicast | IGMP snooping, Report Message Suppression |
| QoS | Auto prioritization of the incoming port of the packet, supports port priority, 802.1P priority, and DSCP priority, Bandwidth control, Rate limit |
| DHCP | DHCP client |
| Maintenance | Backup and restore, System reboot, Factory reset, Firmware upgrade, support MAC address search, SNMP, LLDP, Monitoring including port statistics, Port mirroring, Cable test, and Ping |
| Security | Storm control, DHCP Snooping, Spanning Tree, Loop prevention, PoE Watchdog |
| Mounting | Pole/Wall-Mount/DIN-Rail |
| LED Indicators | Per device System on: Green, Per Ethernet port Link/Activity: Green, Per Passive PoE out port 48VDC: Orange, Per Passive PoE out port 24VDC: Blue, support LED indicator switch |
| ESD | ± 16kV Air, ± 16kV Contact |
| Environmental | Operating Temperature: -40 to 60 °C (-40 to 140 °F), Storage Temperature: -40 to 70 °C (-40 to 158 °F), Operating Humidity: support IP66 waterproof , Storage Humidity: 10% to 95% Non-condensing |
| Dimensions (LxWxH) | Unit: 210 x 150 x 52mm, Package: 466 x 286 x 258mm |
| Weight | Unit: 0.75KG, Entire Package :1.35 KG |
| Compliance | FCC, CE, RCM, IC |
