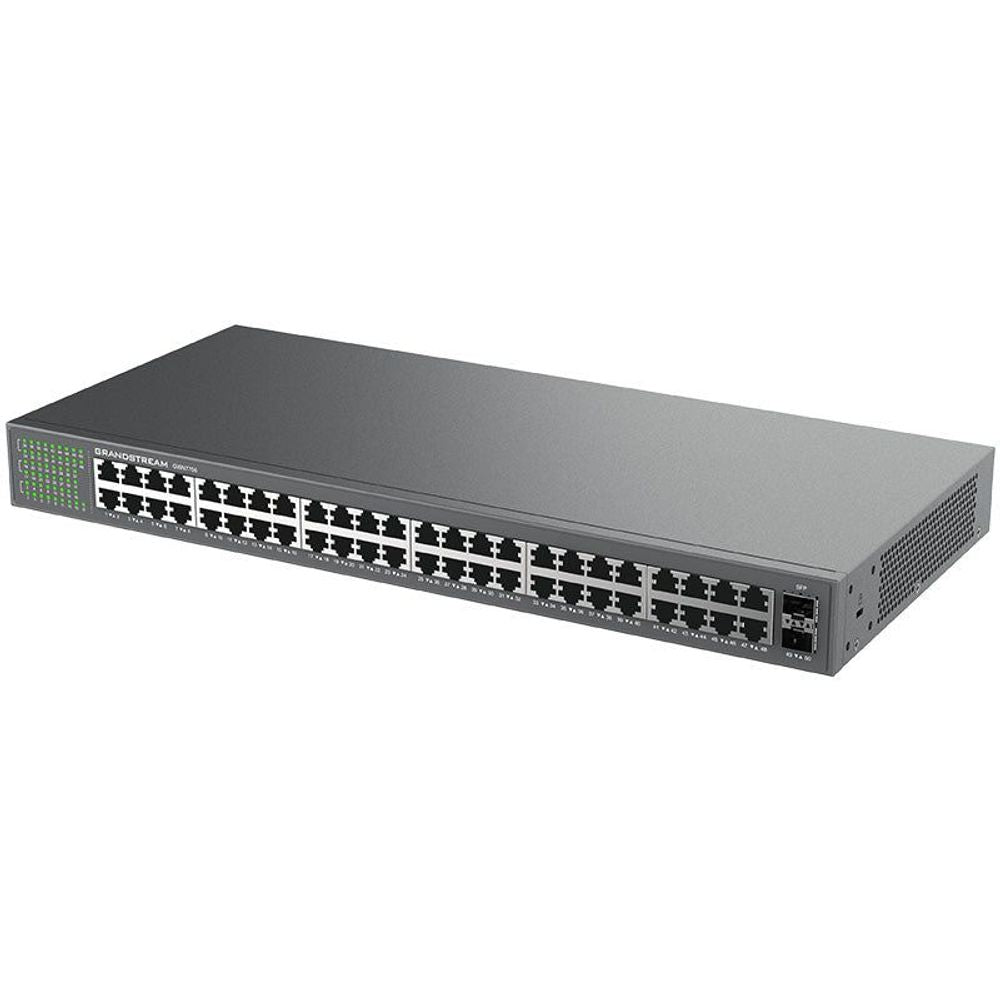

GWN7706 - Grandstream GWN7706 48 Port Gigabit Unmanaged Network Switch with 2 SFP


Price:
Sale price$388.70 NZD

Tax included

Stock:
In stock

Description

Grandstream GWN7706 48 Port Gigabit Unmanaged Network Switch with 2 SFP.

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
Features
  • 48 Gigabit RJ45 ports
  • Green technology reduces power consumption
  • LED Indicators; Per port: Link/Activity/Speed
  • Auto MDI/MDIX crossover for all ports
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • supports long cable connection
  • QoS - supports Default Strict Priority when present
Details
Manufacturer's Code GWN7706
Gigabit Ports 48
Enclosure Metal
Mounting Desktop/ Rack-Mount
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Port Feature 48× 10/100/1000 Mbps RJ-45 Ports, 2× SFP Fiber Ports, AUTO Negotiation, AUTO MDI/MDIX
Network Media 1000Base-X, 1000Base-T/100Base-TX/10Base-Te, Half/Full-Duplex
LED Indicators Per port: Link/Activity Green, Per device: Power Green
Mac Address Table 16K
Switching Capacity 100Gbps
Jumbo Frame 9KB
Advanced Features Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS
Power Adapter Internal 100-240V AC,50/60Hz,40W
Max Power Consumption by Base System 30W@220V/50Hz
Environmental Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H) Unit : 440 x 200 x 44mm, Package: 500*335*89mm
Weight Unit: 2.80Kg, Entire Package: 3.60Kg
Compliance FCC, CE, RCM, IC, UKCA
Details
Included 1x Switch 1x 1.2m AC Cable Rack-mounting Standard Brackets 4x Rubber Fee 1x GND Cable 1x QIG





Specifications





Details
Manufacturer's Code GWN7706
Gigabit Ports 48
Enclosure Metal
Mounting Desktop/ Rack-Mount
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Port Feature 48× 10/100/1000 Mbps RJ-45 Ports, 2× SFP Fiber Ports, AUTO Negotiation, AUTO MDI/MDIX
Network Media 1000Base-X, 1000Base-T/100Base-TX/10Base-Te, Half/Full-Duplex
LED Indicators Per port: Link/Activity Green, Per device: Power Green
Mac Address Table 16K
Switching Capacity 100Gbps
Jumbo Frame 9KB
Advanced Features Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS
Power Adapter Internal 100-240V AC,50/60Hz,40W
Max Power Consumption by Base System 30W@220V/50Hz
Environmental Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H) Unit : 440 x 200 x 44mm, Package: 500*335*89mm
Weight Unit: 2.80Kg, Entire Package: 3.60Kg
Compliance FCC, CE, RCM, IC, UKCA
