Description

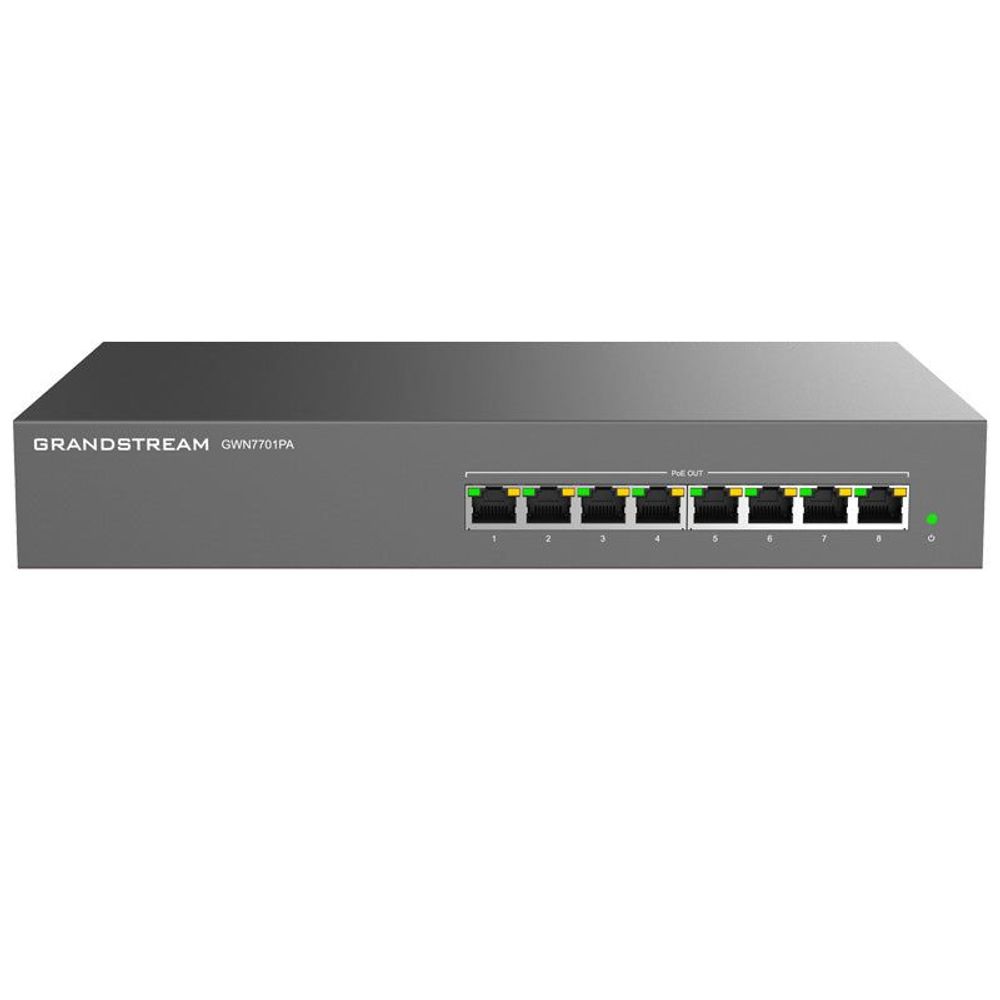

The Grandstream GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to-medium businesses.
Features
- 8 Gigabit RJ45 ports, 8 port PoE+ output (GWN7701PA)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Unlink clear FDB Feature
- QoS - supports Default Strict Priority when present
| Details | |
|---|---|
| Manufacturer's Code | GWN7701PA |
| Gigabit Ports | 8 |
| PoE Port | 8 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | (8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Port Feature | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | Ports 1-8 802.3af/at compliant, 30W per port, total power budget 145W |
| LED Indicators | Per port: Link/Activity Green, Per device: Power Green |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP |
| Power Adapter | Internal 100-240VAC, 50-60Hz, 150W |
| Max Power Consumption by Base System | 6.7W @220V/50Hz (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm |
| Details | |
|---|---|
Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7701PA |
| Gigabit Ports | 8 |
| PoE Port | 8 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | (8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Port Feature | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | Ports 1-8 802.3af/at compliant, 30W per port, total power budget 145W |
| LED Indicators | Per port: Link/Activity Green, Per device: Power Green |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP |
| Power Adapter | Internal 100-240VAC, 50-60Hz, 150W |
| Max Power Consumption by Base System | 6.7W @220V/50Hz (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm |
