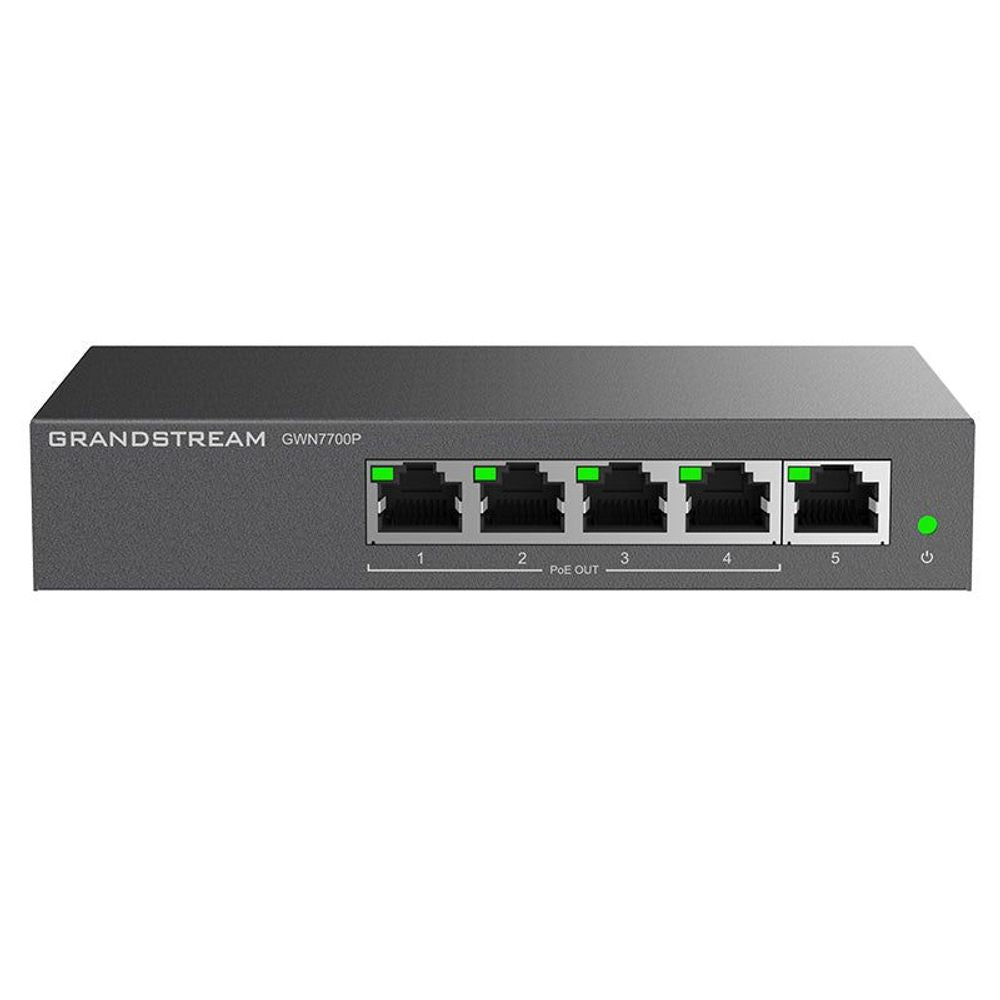

GWN7700P - Grandstream GWN7700P 5 Port Gigabit Unmanaged Ethernet PoE Switch

Grandstream NetworksSKU: GWN7700P

Price:
Sale price$69.00 NZD

Tax included

Stock:
In stock

Description

The Grandstream GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
Features
  • 5 Gigabit RJ45 ports, 4 port PoE+ output
  • Auto MDI/MDIX crossover for all ports
  • 802.3 af/at compliant Up to 30W on each port
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • QoS - supports Default Strict Priority when present
  • Green technology reduces power consumption
Details
Manufacturer's Code GWN7700P
Gigabit Ports 5
PoE Ports 4
Enclosure Metal
Mounting Desktop/Wall Mount
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature 5× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
Network Media 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration 1~4 Ports 802.3 af/at compliant, Up to 30 W on Each Port, Total 60W Power, Budget; Overload to cut off the lowest-priority port. Priority: Port 4 to Port 1
LED Indicators Per Port: Link/Activity Green, Per Device: Power Green
Mac Address Table 2K
Switching Capacity 10Gbps
Jumbo Frame 9KB
Advanced Features Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control 802.1p/DSCP, QoS, IGMP
Power Adapter External 48V-53.5V/1.22A
Max Power Consumption by Base System 2W (Excluding PoE output power)
Environmental Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H) Unit:120 x 65 x 24.5mm
Weight Unit 0.1KG
Details
Power Supply Included





Specifications





Details
Manufacturer's Code GWN7700P
Gigabit Ports 5
PoE Ports 4
Enclosure Metal
Mounting Desktop/Wall Mount
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature 5× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
Network Media 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration 1~4 Ports 802.3 af/at compliant, Up to 30 W on Each Port, Total 60W Power, Budget; Overload to cut off the lowest-priority port. Priority: Port 4 to Port 1
LED Indicators Per Port: Link/Activity Green, Per Device: Power Green
Mac Address Table 2K
Switching Capacity 10Gbps
Jumbo Frame 9KB
Advanced Features Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control 802.1p/DSCP, QoS, IGMP
Power Adapter External 48V-53.5V/1.22A
Max Power Consumption by Base System 2W (Excluding PoE output power)
Environmental Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H) Unit:120 x 65 x 24.5mm
Weight Unit 0.1KG
