Description

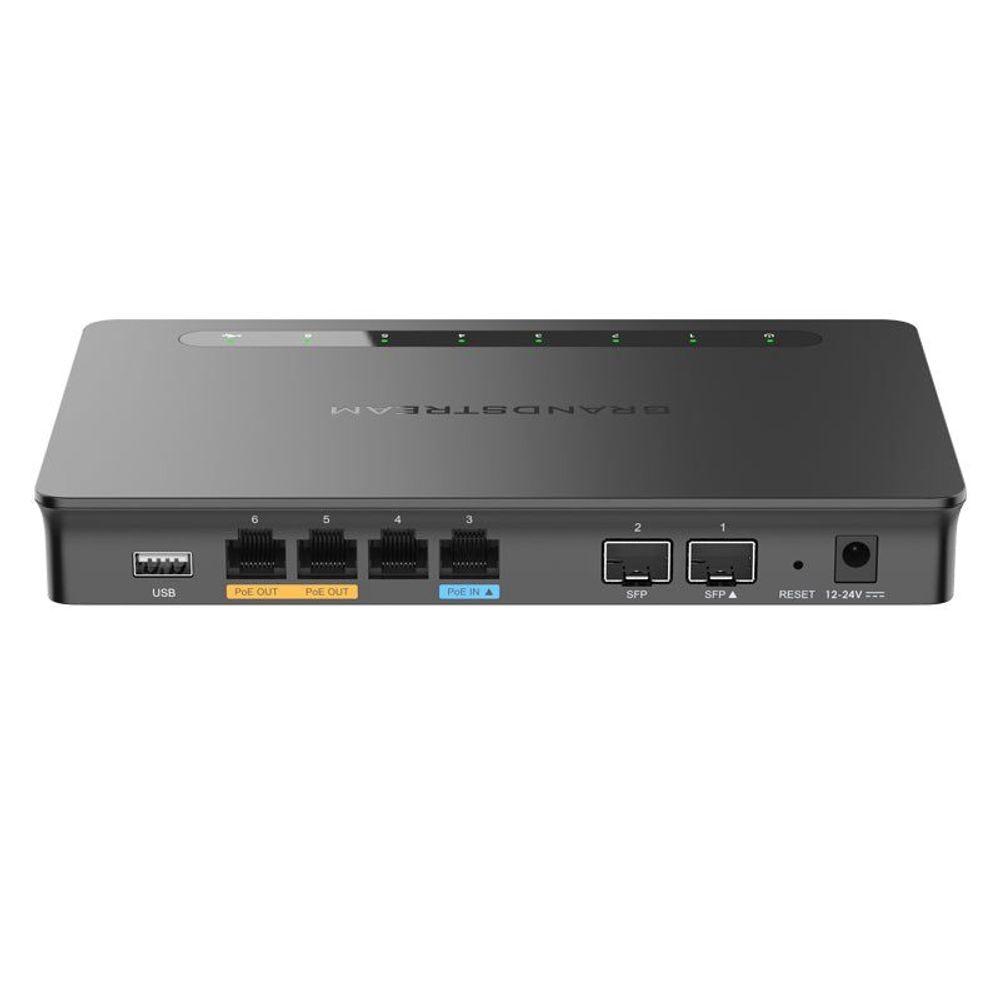

The Grandstream GWN7001/2/3 are Multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations. They offer high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity. To provide enterprise-grade security protection and ensure stable network operation, the GWN 7001/7002/7003 features a built-in firewall with advanced content security, filtering, threat detection, attack prevention and more. To maximize network reliability, they support traffic load balancing, failover and bandwidth management capabilities. The GWN7001 includes 6 Gigabit ethernet ports.The GWN7002/7003 include 2 Gigabit SFP ports, 4/9 Gigabit ethernet ports, and 2 PoE output ports that allow them to provide power to other endpoints. These routers can manage themselves and up to 150 Grandstream GWN Series Wi-Fi APs thanks to an embedded controller located in the products’ web user interface. These routers can also be managed with GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise network management . By providing high-performance routing, VPN support, powerful security protection and easy-to-use network management , the GWN Gigabit VPN routers are ideal for a wide variety of deployments including small-to- medium businesses, retail, education, hospitality, healthcare and more.
Features
- 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af (GWN7002/GWN7003)
- supports multiple Gigabit RJ45 ports and Gigabit SFP ports
- Built-in VPN support allows easy access to corporate networks for remote employees
- Multiple WAN ports with load balancing and failover to maximize connection reliability
- Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
- supports application/ protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
- Advanced QoS to ensure real-time performance of low-latency applications
- supports application, URL,DNS, and web content filtering to block access from unsecure contents
- Embedded controller can manage itself and up to 150 GWN APs; GWN. Cloud offers a free cloud management platform for unlimited routers and GWN APs
| Details | |
|---|---|
| Manufacturer's Code | GWN7002 |
| CPU | Dual ARM Cortex A53 1GHz |
| Memory and NAT Sessions | 256MB RAM, 256MB Flash, 30K NAT sessions |
| Network Interfaces | 2x Gigabit SFP ports and 4x Gigabit Ethernet ports (All ports are WAN/LAN configurable) |
| NAT Throughput | 2.2Gbps |
| IPsec VPN Throughput | 530Mbps |
| Auxiliary Ports | 1x USB 2.0 port, 1x Reset Pinhole |
| Mounting | Desktop and wall mounting |
| LEDs | 8x single-color LEDs for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Network Protocols | IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | VLAN, TOS, support multiple traffic classes, filter by port, IP address, DSCP, and policing, App Qos, VoIP Prioritization |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG |
| Security | Application/protocol monitoring and traffic statistics, Content filtering: supports Application/URL/DNS/Web Content Filtering, Safe Search |
| VPN | SSL, IPSec, PPTP, LT2P (Client), Wireguard (pending) |
| Max Concurrent VPN Tunnels | Up to 50 Tunnels |
| Network Management | GWN7002 embedded controller can manage itself and up to 100 GWN APs |
| PoE Input | Standard: IEEE 802.3af/at |
| PoE Output | 2x PoE out ports, Passive 48V or IEEE802.3af |
| PoE Power Budget | 24V DC 1A: 12.8W, 24V DC 1.5A: 24.8W |
| Power & Green Energy Efficiency | Universal power adaptor included, Input: 100-240VAC 50-60Hz. Output: 24V DC 1A (24W) |
| Dimensions | 260mm(L)x149.35mm(W)*35mm(H) |
| Details | |
|---|---|
| Power Supply | Universal power adaptor included, Input: 100-240VAC 50-60Hz. Output: 24V DC 1A (24W) |
Specifications
| Details | |
|---|---|
| Manufacturer's Code | GWN7002 |
| CPU | Dual ARM Cortex A53 1GHz |
| Memory and NAT Sessions | 256MB RAM, 256MB Flash, 30K NAT sessions |
| Network Interfaces | 2x Gigabit SFP ports and 4x Gigabit Ethernet ports (All ports are WAN/LAN configurable) |
| NAT Throughput | 2.2Gbps |
| IPsec VPN Throughput | 530Mbps |
| Auxiliary Ports | 1x USB 2.0 port, 1x Reset Pinhole |
| Mounting | Desktop and wall mounting |
| LEDs | 8x single-color LEDs for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE, PPTP, L2TP |
| Network Protocols | IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| QoS | VLAN, TOS, support multiple traffic classes, filter by port, IP address, DSCP, and policing, App Qos, VoIP Prioritization |
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG |
| Security | Application/protocol monitoring and traffic statistics, Content filtering: supports Application/URL/DNS/Web Content Filtering, Safe Search |
| VPN | SSL, IPSec, PPTP, LT2P (Client), Wireguard (pending) |
| Max Concurrent VPN Tunnels | Up to 50 Tunnels |
| Network Management | GWN7002 embedded controller can manage itself and up to 100 GWN APs |
| PoE Input | Standard: IEEE 802.3af/at |
| PoE Output | 2x PoE out ports, Passive 48V or IEEE802.3af |
| PoE Power Budget | 24V DC 1A: 12.8W, 24V DC 1.5A: 24.8W |
| Power & Green Energy Efficiency | Universal power adaptor included, Input: 100-240VAC 50-60Hz. Output: 24V DC 1A (24W) |
| Dimensions | 260mm(L)x149.35mm(W)*35mm(H) |
