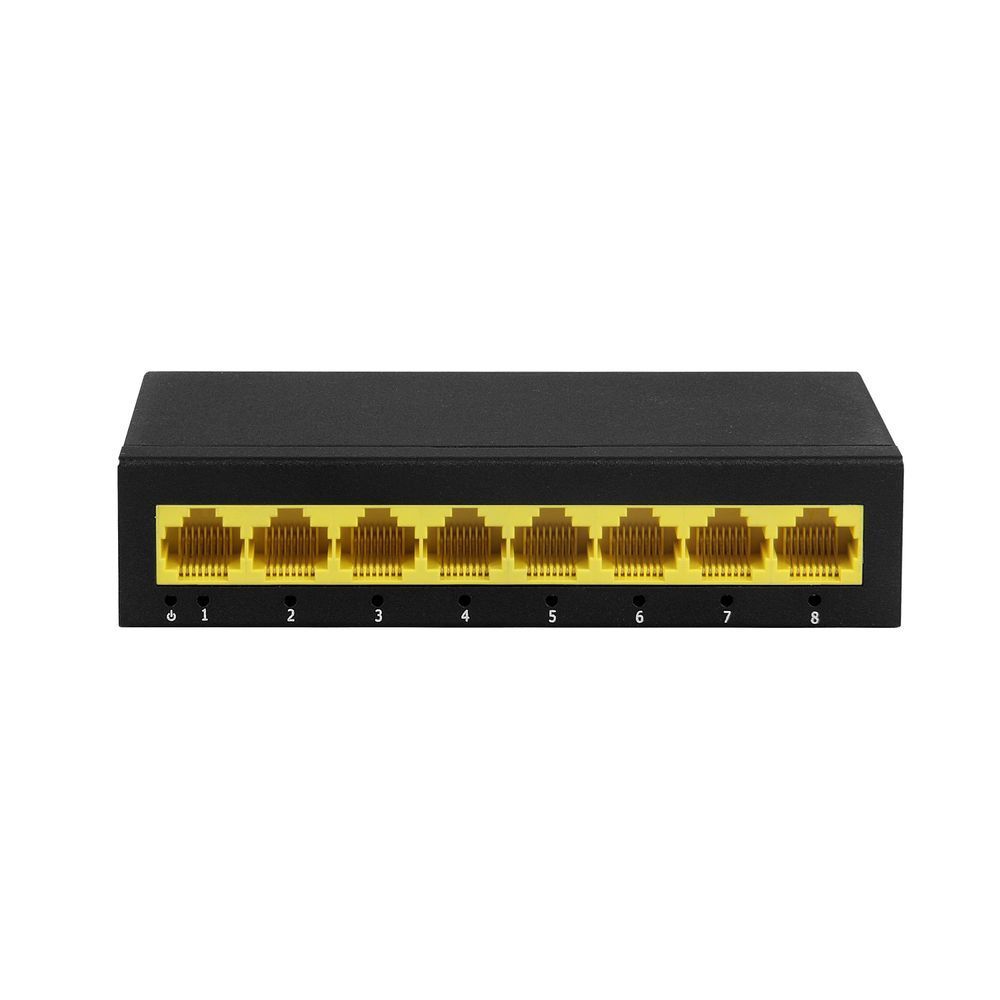

Name: GW-SW-8Gv2 - 8 Port 100/1000Mbps Network Switch
Brand: Tech Supply Shed
SKU: GW-SW-8Gv2
Price: 54.05 NZD
Availability: InStock

GW-SW-8Gv2 - 8 Port 100/1000Mbps Network Switch

GW-SW-8Gv2

$54.05

Tax included.

In stock, ready to be shipped

Select quantity

Description

The GW-SW-8Gv2 is 8 port Gigabit unmanaged network switch, with 8 port Gigabit self-adaptive port. All ports support the full speed forward. All ports have up to 4kv lightning protection function, up to 1000Mbps transmission rate. Provides the high reliability for the hd video monitoring, Simple, economic, energy saving, high-performance, it is suitable for cybercafe, company, school and intelligence community with the video monitoring application.

Features

All ports provide second line speed exchange ability,
guarantee all port forward packets non-blocking.
Accord with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet
standard;
In full duplex and half duplex mode, support IEEE802.3X
standard traffic control
Under the online speed, support 9216 byte Jumbo Frame
support IEEE 802.1x channel control protocol
Provide 8 adaptive RJ45 port, support 10/100/1000Mbps
Negative Link Velocity
Provide up to 16Gbps bandwidth and Non-blocking line
speed forward;
Provide LED indicators realize simple work statement
reminder and trouble clearing;
support up to 4KV port of lightning protection;
Fanless design realize saving energy and environment
protection
Desktop or wall installation

Details
Manufacturer's Code	GW-SW-8Gv2
Network Port	8 10/100/1000Mbps RJ45 port
Transmission Rate	10 or 100Mbps half duplex,100/1000Mbps full duplex, Network port: 100BASE-Tor 1000BASE-TX Ethernet RJ-45port
Performance	Bandwidth: 16Gbps(no block), MAC address capacity: 4K, Frames filter and transfer rate, 10Mport maximum 14,880pps, 100Mport maximum 148,809pps, 1000Mport maximum 1,488,009pps
Network protocol and standards	IEEE802.3 Ethernet standard, IEEE802.3u Fast Ethernet standard, IEEE802.3ab Gigabit Ethernet standards, IEEE802.3x Full-duplex Ethernet data link layers
LEDs indicator	Power, Each port :LINK/ACT
Power	Input power: 100-240V,50/60Hz, Output power: 12VDC ,0.5A
Dimensions	Size(LxWxH): 125×75×27mm, Weight: 0.45kg
Environment	Operating Temperature: 0°~40°C(32°~104°F), Storage Temperature: -40°C~70°C(-104°~158°F), Operating Humidity: 10%~90%(Non-condensing), Storage Humidity: 5%~90%(Non-condensing)
EMC	CE ClassB, FCC Part15,ClassB, VCCI ClassB, C-Tick
Certifications	CE/LVD
Warranty	1 year

Details
Power Supply	12VDC, 0.5A
Mounting Hardware	Desktop/Wall
Warranty	Standard 12 Month RTB

Specifications

Details
Manufacturer's Code	GW-SW-8Gv2
Network Port	8 10/100/1000Mbps RJ45 port
Transmission Rate	10 or 100Mbps half duplex,100/1000Mbps full duplex, Network port: 100BASE-Tor 1000BASE-TX Ethernet RJ-45port
Performance	Bandwidth: 16Gbps(no block), MAC address capacity: 4K, Frames filter and transfer rate, 10Mport maximum 14,880pps, 100Mport maximum 148,809pps, 1000Mport maximum 1,488,009pps
Network protocol and standards	IEEE802.3 Ethernet standard, IEEE802.3u Fast Ethernet standard, IEEE802.3ab Gigabit Ethernet standards, IEEE802.3x Full-duplex Ethernet data link layers
LEDs indicator	Power, Each port :LINK/ACT
Power	Input power: 100-240V,50/60Hz, Output power: 12VDC ,0.5A
Dimensions	Size(LxWxH): 125×75×27mm, Weight: 0.45kg
Environment	Operating Temperature: 0°~40°C(32°~104°F), Storage Temperature: -40°C~70°C(-104°~158°F), Operating Humidity: 10%~90%(Non-condensing), Storage Humidity: 5%~90%(Non-condensing)
EMC	CE ClassB, FCC Part15,ClassB, VCCI ClassB, C-Tick
Certifications	CE/LVD
Warranty	1 year
