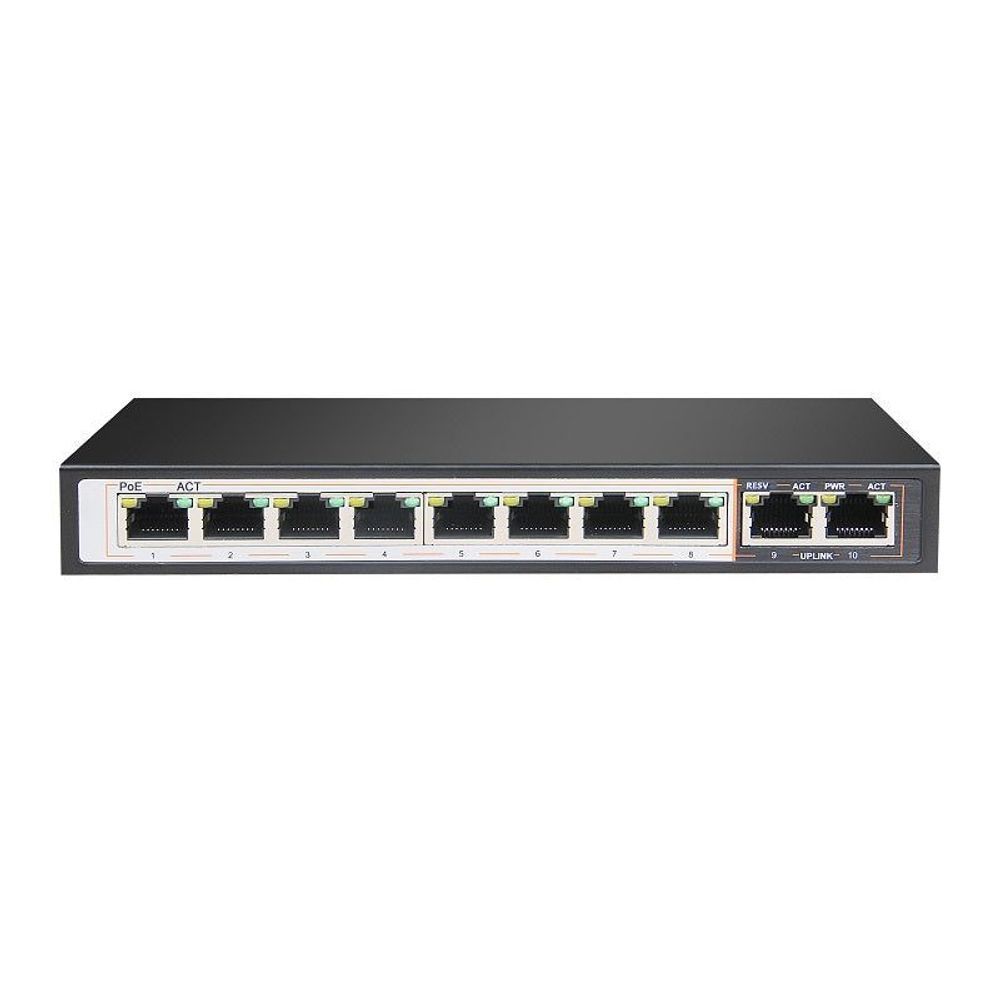

Name: GW-SW-10G-POE - 10 Port Gigabit Ethernet Switch with 8 ports 802.3af/at PoE
Brand: Tech Supply Shed
SKU: GW-SW-10G-POE
Price: 139.15 NZD
Availability: InStock

GW-SW-10G-POE - 10 Port Gigabit Ethernet Switch with 8 ports 802.3af/at PoE

GW-SW-10G-POE

$139.15

Tax included.

In stock, ready to be shipped

Select quantity

Description

The 10 Port Ethernet Switch GW-SW-10G-POE supports 8 ports of IEEE 802.3af/at standard, which can automatically detect and identify the POE devices that comply with the IEEE 802 af/at standard and provide power to them. There is no need to worry about PoE or non-PoE devices that can damage non PoE equipment

The GW-SW-10G-POE has a total PoE budget of 96W with a maximum of 30W per port.

Features

supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard and supply power to it
support Auto MDI/MDIX
Adopt store-and-forward exchange method
Intelligent power supply, the lowest power consumption, ensure PD power needs
With power circuit protection, protect the safety of PD
No configuration characteristics of the power supply is automatically supplied to the adaptive equipment
Fanless design, energy saving and environmental protection; no noise, reduce the impact on the environment
Compact size design
support port without link power saving function
All ports have wire-speed forwarding capability
Plug and play, easy to use

Details
Manufacturer's Code	GW-SW-10G-POE
Total Network Ports	10 x 10/100/1000Mbps RJ45 port
Total PoE Ports	8 x 802.3af/at
Transmission Rate	10 or 100Mbps Half duplex,100/1000Mbps Full duplex, Network port: 100BASE-Tor 1000BASE-TX Ethernet RJ-45port
Performance	Bandwidth: 16Gbps(no block), MAC address capacity: 4K, Frames filter and transfer rate 10M port maximum 14,880pps, 100M port maximum 148,800pps, 1000M port maximum 1,488,000pps
LED Indicator	Power, RESV, LINK/ACT
POE Power Pins	1/2(+), 3/6(-)
Power	Max. output power single port: 30W, Max Power supply: 96W
Dimensions	Size (LxWxH): 184mm94mm27mm
Environment	Operating Temerature 0°~40°C, Operating Humidity:: 10%~90%, Non-condensing
Ssafety Regulations	CE/ROHS/FCC/CCC

Details
Power Supply	Jug cord, 52v 96W power supply
Mounting Hardware	Desktop Switch - No Hardware
Warranty	Standard 12 Month RTB
