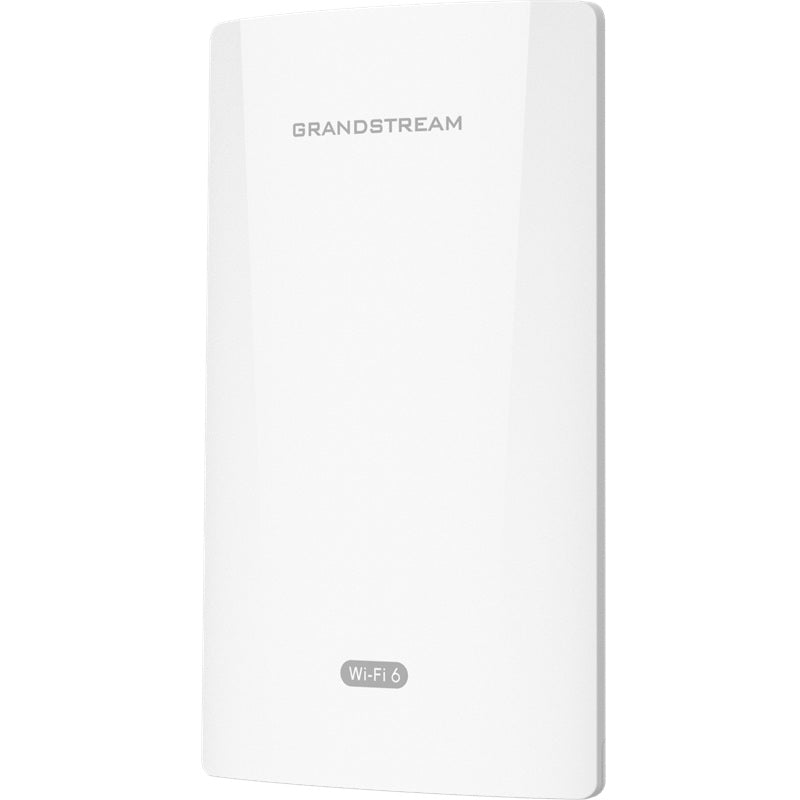

Name: Grandstream Outdoor GWN7302 802.11ax PTP/PTMP Radio
Brand: Grandstream Networks
SKU: GWN7302
Price: 171.35 NZD
Availability: InStock

Grandstream Outdoor GWN7302 802.11ax PTP/PTMP Radio

GWN7302

$171.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

Grandstream GWN7302 Outdoor 802.11ax PTP/PTMP Radio

Grandstream GWN7302 PTP/PTMP 802.11ax Radio. The GWN7302 is a new enterprise PtP/PtMP Fixed Wireless Bridge, ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 2x2:2 MIMO and a sophisticated antenna design with TDMA technology to improve spectrum utilization efficiency, reduce interference, and enhance network stability. It supports PtP and PtMP modes to meet different scenarios.

It offers IP66-level weatherproof capability to ensure equipment stability. One key pairing can quickly synchronize and connect devices, combined with the signal strength LEDs to guide the antenna alignment, simplifying the installation and use of the device.

To ensure easy installation and management, the GWN7302 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7302 is also supported by the GWN App, which can be configured by connecting Wi-Fi broadcasted by the device itself when it is not convenient to access the LAN and the GDMS cloud platform offers remote management.

It has a 2x1 Gigabit network port, supporting PoE IN and PoE OUT respectively. GWN7302 is an ideal long-range wireless bridge for factories, construction sites, parking lots, scenic locations, and more.

Features

2.4Gbps aggregate wireless throughput, 2x1 Gigabit Ethernet port
Single-band 2x2:2 MIMO with TDMA technology
Up to 5-kilometer coverage range
Advanced QoS to ensure real-time performance of low-latency applications
IP66 level weatherproof
PoE out on 2nd Ethernet Port

Details
Manufacturer's Code	GWN7302
Wi-Fi Data Rates	IEEE 802.11a/n/ac/ax up to 7.3 Mbps RF carrier speeds
Antenna	13.5dBi, 2 single internal antennas: 5GHz
Beamwidth	5G: H:30°C, V:30°C
MIMO	5GHz: 2x2:2, MIMO
Frequency Bands	5GHz Radio: 5150 - 5850 MHz
Channel Bandwidth	5GHz: 20, 40, 80 and 160MHz (x2)
Maximum TX Power	5GHz: 26dBm (400mW)
Maximum RX Sensitivity	-92dBm
Coverage Range	Up to 5 kilometers *coverage range can vary based on environment
Point to Multipoint	1 to 4
Network Ports	1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input; 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output
LEDs	1 tri-color LED for device tracking and status indication, 3x LED for signal strength, 2x LED for network port status
Auxiliary Ports	1x Reset and Pairing Button
PoE Input	802.3af/at (Not Included)
DC	+24V (Compatible with 16V-48V)
PSE output	Max 13W with PoE+ input, Max 25W with +24V DC/2A input
Maximum Power Consumption	13W
WLAN	IEEE 802.11 a/n/ac/ax, SSID: Single 5G, disabled, support auto channel, support transmit power selection, support management Wi-Fi, support TDMA
Pairing	One-key pairing, Web pairing
Network	Static or DHCP IPv4, support VLAN
Security	WPA2-PSK, WPA3-PSK
System	Link Test, Antenna Alignment, Spectrum Analyzer
QOS	802.11e/WMM,802.1p, 802.1q, TOS
Management Platform	Local Web, GDMS Networking via SSH tunneling, GWN Manager, GWN App
Management Protocol	TR-069, SNMP
Dimension	Unit: 180 x 102 x 38 mm
Weight	Unit: 412g
Mounting	Wall mount or pole mount, kits included
Temperature	Operation: -30°C to 60°C, Storage: -30°C to 70°C
Humidity	5% to 95% Non-condensing
Weatherproof Guide	IP66-level weatherproof capability
Compliance	FCC, CE, RCM, IC

Details
Included	1x GWN7302 Radio, Mounting Kits, Quick Start Guide
Power Supply	Not Included

Warranty

3 Years

Brand

Grandstream Networks

Restock ETA (if applicable)
