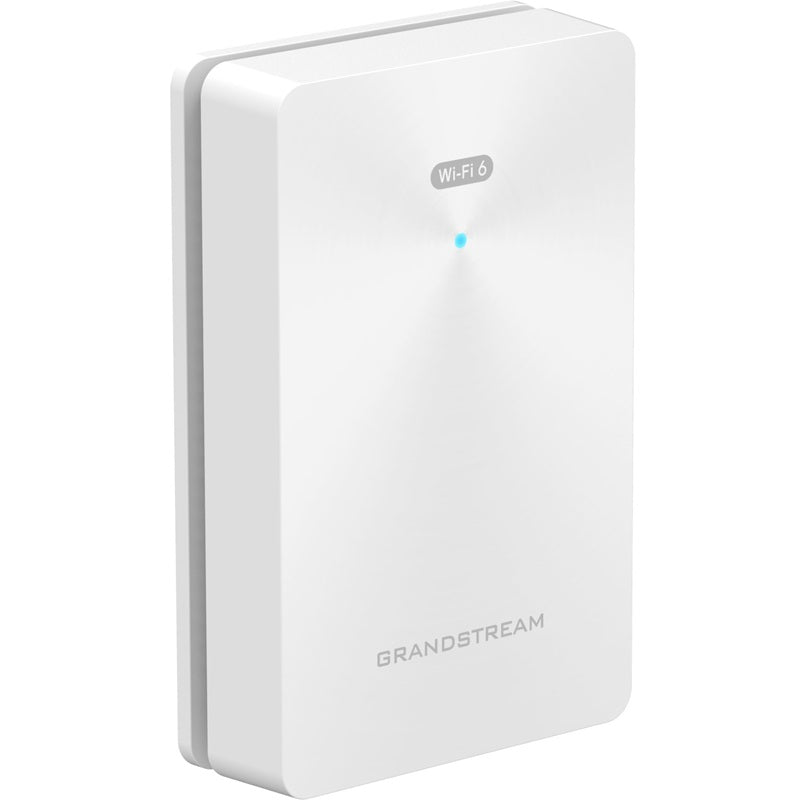

Name: Grandstream GWN7661E 2x2 802.11ax AX3000 Wi-Fi 6 In-Wall AP
Brand: Grandstream Networks
SKU: GWN7661E
Price: 164.45 NZD
Availability: InStock

Grandstream GWN7661E 2x2 802.11ax AX3000 Wi-Fi 6 In-Wall AP

GWN7661E

$164.45

Tax included.

In stock, ready to be shipped

Select quantity

Description

Grandstream GWN7661E 2x2 802.11ax AX3000 Wi-Fi 6 In-Wall AP

Grandstream GWN7661E 2x2 802.11ax AX3000 Wi-Fi 6 In-Wall AP

The GWN7661E is an in-wall AX3000 Wi-Fi 6 access point designed for offices, hotels, homes, apartments and more. It provides dual-band Wi-Fi 6, a sophisticated antenna design for up to 3Gbps wireless speeds, 100-meter coverage range, 2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO technology. The GWN7661E provides three Gigabit network ports to provide IP phones, TVs, computers and similar devices with Ethernet while also providing an uplink Gigabit network port with PoE/PoE+.

This Wi-Fi 6 access point is designed to be mounted in-wall to provide a clean and professional installation that blends into the surrounding environment. To ensure easy installation and management, the GWN7661E includes a built-in controller embedded within the product’s web user interface. The GWN7661E can also be managed by GDMS and GWN Manager, Grandstream’s free cloud and on-premise network management platforms. It is the ideal Wi-Fi AP for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and 256 concurrent clients per AP, the GWN7661E is an ideal Wi-Fi access point for in-wall installations and small-to-medium businesses deployments.

Features

3 Gbps wireless throughput and 4x Gigabit wireline ports
2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO and OFDMA technology
supports up to 256 concurrent Wi-Fi client devices
Self-power adaptation upon auto-detection of PoE or PoE+
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Details
Manufacturer's Code	GWN7661E
Client Devices	Up to 256
2.4G Throughput	573.5Mbps (2x2:2 MU-MIMO)
5G Throughput	2.4Gbps (3x3:2 MU-MIMO)
Range	Up to 100 Meters
Network Interfaces	1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port
PoE/PoE+	support 802.3az PoE 802.3af/ 802.3at; The maximum output of all PSE ports is 12W; Maximum Power Consumption: 25W
Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac/ax
Max TX Power	2.4GHz: 24dBm, 5GHz: 26dBm
Max RX Sensitivity	2.4GHz: -96dBm, 5GHz: -92dBm
SSIDs	32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Antennas	2x dual-band internal antennas,1x 5G internal antenna
Wi-Fi and Security Systems	WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions	135mm(L) x 86mm(W) x 38.5mm(H)
Mounting	In-Wall Mountable
Compliance	FCC, CE, RCM, IC

Details
Package Content	GWN7661E AP, Mounting Kits, Quick Installation Guide

Warranty

3 Years

Brand

Grandstream Networks

Restock ETA (if applicable)

Product Details

Specifications

Grandstream Networks
HeadingGrandstream GWN7661E 2x2 802.11ax AX3000 Wi-Fi 6 In-Wall AP

Description

Grandstream GWN7661E 2x2 802.11ax AX3000 Wi-Fi 6 In-Wall AP

Features

3 Gbps wireless throughput and 4x Gigabit wireline ports
2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO and OFDMA technology
supports up to 256 concurrent Wi-Fi client devices
Self-power adaptation upon auto-detection of PoE or PoE+
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Details
Manufacturer's Code	GWN7661E
Client Devices	Up to 256
2.4G Throughput	573.5Mbps (2x2:2 MU-MIMO)
5G Throughput	2.4Gbps (3x3:2 MU-MIMO)
Range	Up to 100 Meters
Network Interfaces	1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port
PoE/PoE+	support 802.3az PoE 802.3af/ 802.3at; The maximum output of all PSE ports is 12W; Maximum Power Consumption: 25W
Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac/ax
Max TX Power	2.4GHz: 24dBm, 5GHz: 26dBm
Max RX Sensitivity	2.4GHz: -96dBm, 5GHz: -92dBm
SSIDs	32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Antennas	2x dual-band internal antennas,1x 5G internal antenna
Wi-Fi and Security Systems	WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions	135mm(L) x 86mm(W) x 38.5mm(H)
Mounting	In-Wall Mountable
Compliance	FCC, CE, RCM, IC
