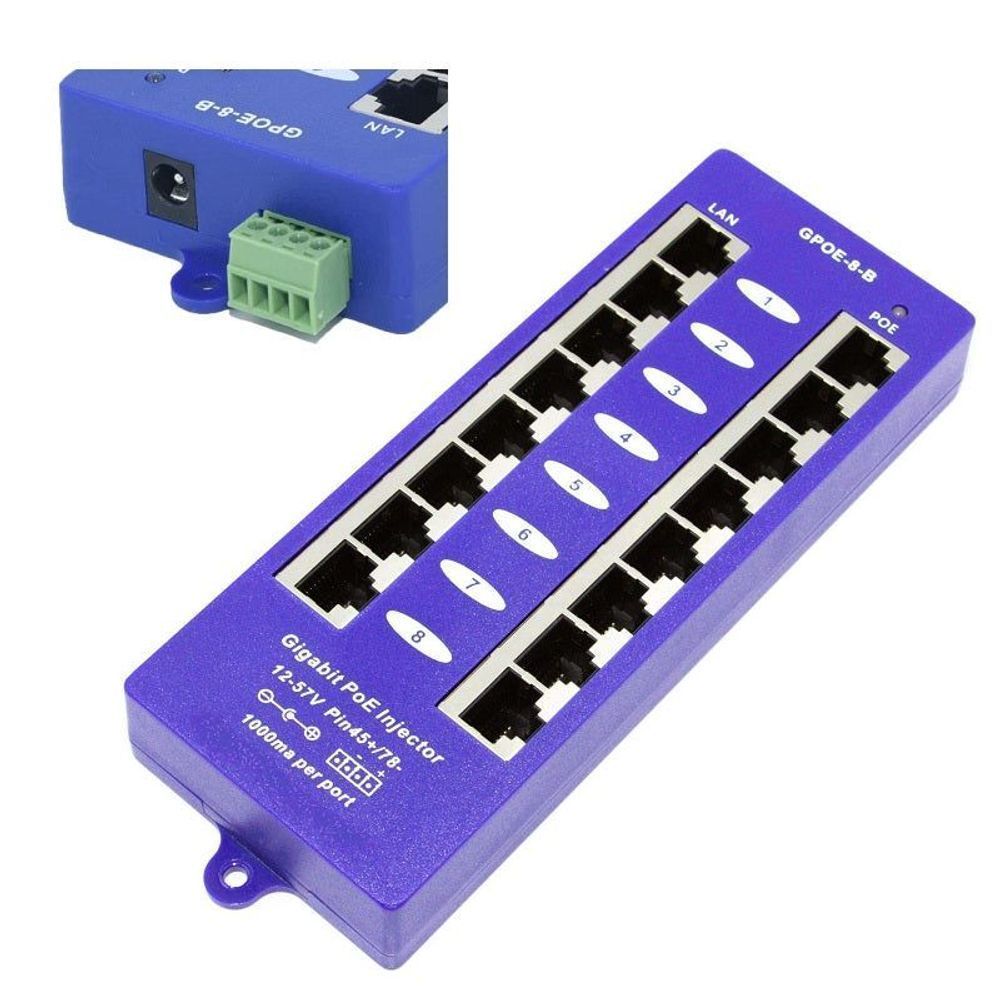

Name: GPOE-8B - PoE World 8 Port Shielded Gigabit Passive Mode B PoE injector
Brand: PoE World
SKU: GPOE-8B
Price: 40.25 NZD
Availability: InStock

GPOE-8B - PoE World 8 Port Shielded Gigabit Passive Mode B PoE injector

GPOE-8B

$40.25

Tax included.

8 items available

Select quantity

Description

PoE World 8 Port Shielded Gigabit Passive Mode B Power over Ethernet injector. Simplify installations with a multi-port midspan injector. Power up to eight IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source.

Features

Wall mountable
Use with any non-PoE switch
RJ45 (2) jacks with data + power out
RJ45 (2) jacks for data to the switch
Each port is limited to 650 ma
Gigabit speed
2.1mm x 5.5mm DC plug
Mode B input pins: 4&5 (+) and 7&8 (-)
Quiet operation - no fan or cooling required
Operating temperature: 0degC ~ 65degC

Details
Product Code	GPOE-8B
Data Rate	10/100/1000Mbps
PoE Output Voltage	12 - 57V DC
Max power Input	120 Watt
PoE Mode B input pins	4&5 (+) and 7&8 (-)
Protection	1000 mA automatic resettable fuse on each port
DC Input interface	2.1mm x 5.5mm DC plug socket and Phoenix DC connector
LED status indicator	Green standard polarity, Red for Reverse polarity
Operating Temp	0 - 65 degC

Details
Power Supply	Sold Separately

Specifications

Details
Product Code	GPOE-8B
Data Rate	10/100/1000Mbps
PoE Output Voltage	12 - 57V DC
Max power Input	120 Watt
PoE Mode B input pins	4&5 (+) and 7&8 (-)
Protection	1000 mA automatic resettable fuse on each port
DC Input interface	2.1mm x 5.5mm DC plug socket and Phoenix DC connector
LED status indicator	Green standard polarity, Red for Reverse polarity
Operating Temp	0 - 65 degC
