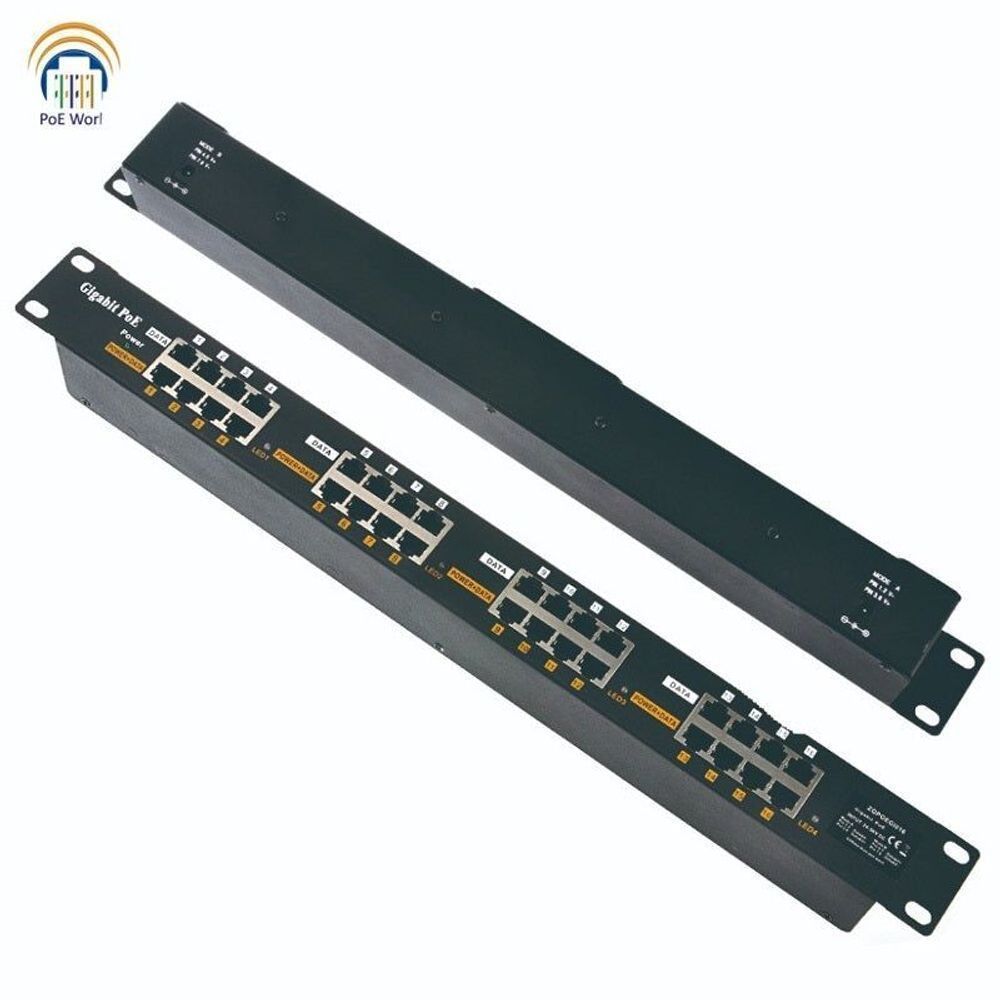

Name: GPOE-16-1U - PoE World 16 Port Gigabit Passive PoE Mode A+B 4 Wire injector
Brand: PoE World
SKU: GPOE-16-1U
Price: 187.45 NZD
Availability: InStock

GPOE-16-1U - PoE World 16 Port Gigabit Passive PoE Mode A+B 4 Wire injector

GPOE-16-1U

$187.45

Tax included.

In stock, ready to be shipped

Select quantity

Description

PoE World 16 Port Gigabit PoE Mode A+B 4 Wire injector. 16 port Gigabit PoE injector for 802.3af or passive 802.3at devices - see power supply options

This rack mountable 16 port Gigabit midspan injector is able to provide PoE power and data for 16 devices for up to 100 meters . Use this injector to power IP cameras, VoIP phones, access points, and more. This injector operates on Passive mode A and B and power is “always on”.

Features

Rack mount
Use with any PoE or non-PoE switch
802.3af /at compatible
LED power display
10/100/1000 data speed
650 ma automatic resettable fuses on each port
Operating temperature: 0 ~ 65 degC

Details
Product Code	GPOE-16-1U
Data Rate	10/100/1000Mbps
PoE Output Voltage	18 - 57V DC
Max power Input	240 Watt
PoE Mode A data pins	1&2 (-) and 3&6 (+)
PoE Mode B input pins	4&5 (+) and 7&8 (-)
DC Input interface	2.1mm x 5.5mm DC plug socket
Operating Temp	0 - 50 degC
Complaince	PELV per NFPA standard 79

Details
Power Supply	Sold Separately

Specifications

Details
Product Code	GPOE-16-1U
Data Rate	10/100/1000Mbps
PoE Output Voltage	18 - 57V DC
Max power Input	240 Watt
PoE Mode A data pins	1&2 (-) and 3&6 (+)
PoE Mode B input pins	4&5 (+) and 7&8 (-)
DC Input interface	2.1mm x 5.5mm DC plug socket
Operating Temp	0 - 50 degC
Complaince	PELV per NFPA standard 79

Warranty

Brand

PoE World

Restock ETA (if applicable)

Product Details

Specifications

PoE World
HeadingGPOE-16-1U - PoE World 16 Port Gigabit Passive PoE Mode A+B 4 Wire injector

Description

Features

Rack mount
Use with any PoE or non-PoE switch
802.3af /at compatible
LED power display
10/100/1000 data speed
650 ma automatic resettable fuses on each port
Operating temperature: 0 ~ 65 degC

Details
Product Code	GPOE-16-1U
Data Rate	10/100/1000Mbps
PoE Output Voltage	18 - 57V DC
Max power Input	240 Watt
PoE Mode A data pins	1&2 (-) and 3&6 (+)
PoE Mode B input pins	4&5 (+) and 7&8 (-)
DC Input interface	2.1mm x 5.5mm DC plug socket
Operating Temp	0 - 50 degC
Complaince	PELV per NFPA standard 79

Details
Power Supply	Sold Separately

Specifications

Details
Product Code	GPOE-16-1U
Data Rate	10/100/1000Mbps
PoE Output Voltage	18 - 57V DC
Max power Input	240 Watt
PoE Mode A data pins	1&2 (-) and 3&6 (+)
PoE Mode B input pins	4&5 (+) and 7&8 (-)
DC Input interface	2.1mm x 5.5mm DC plug socket
Operating Temp	0 - 50 degC
Complaince	PELV per NFPA standard 79
