Description

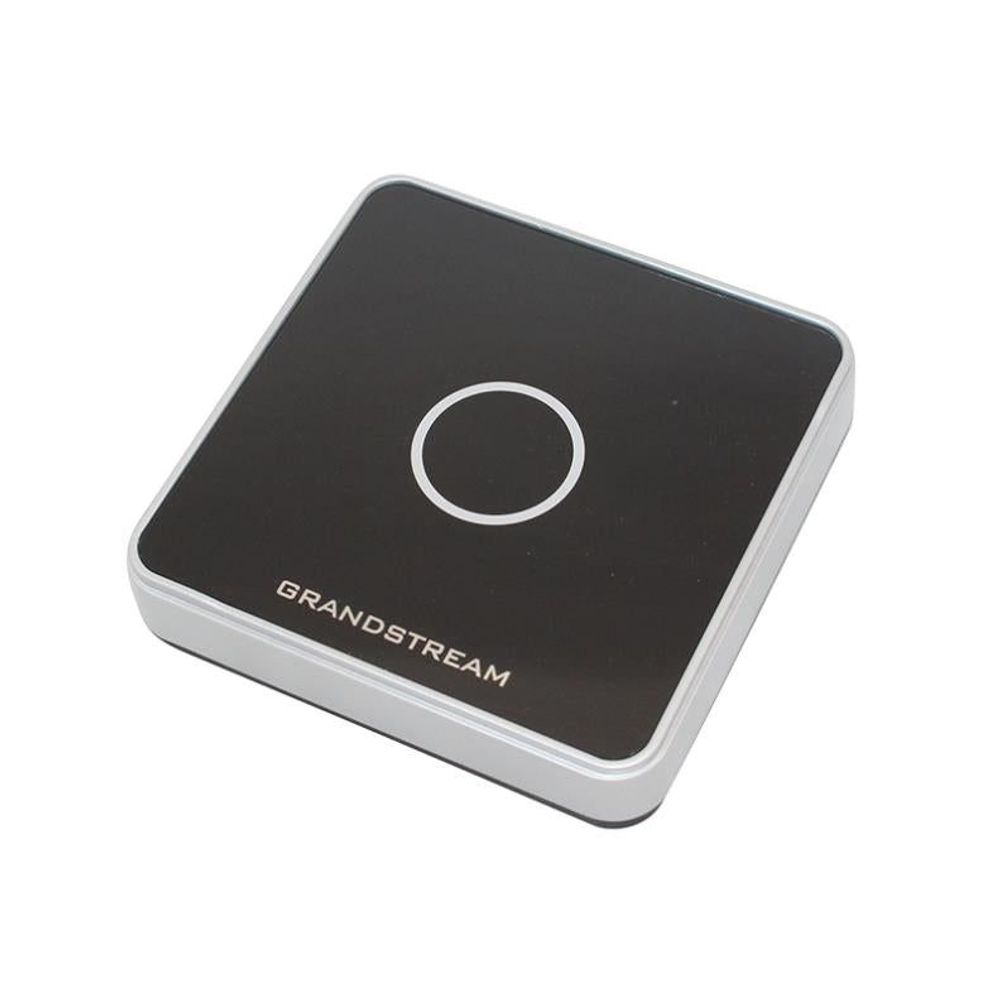

The Grandstream USB RFID Card Reader is a desktop ID card reader available for use with the GDS series of IP Door Systems.
This USB RFID Card Reader can be installed anywhere and connect via USB to any computer running Grandstream’s free GDS Manager software to allow all RFID Card Reader activity to be tracked, monitored and managed centrally by the GDS Manager. The device is fully powered through USB and offers a built-in antenna with card-seeking mode.
With high performance RF circuit design and strong anti-interference ability, the portable USB card reader provides a cost effective and user friendly solution for access control, attendance management, charge activity, security and other RFID card related applications.
This USB RFID Card Reader can be installed anywhere and connect via USB to any computer running Grandstream’s free GDS Manager software to allow all RFID Card Reader activity to be tracked, monitored and managed centrally by the GDS Manager. The device is fully powered through USB and offers a built-in antenna with card-seeking mode.
With high performance RF circuit design and strong anti-interference ability, the portable USB card reader provides a cost effective and user friendly solution for access control, attendance management, charge activity, security and other RFID card related applications.
Features
- Built-in antenna with active card seeking mode, working at 125KHz frequency
- USB interface for power and data, no driver required
- supports Windows, Linux and Android
| Details | |
|---|---|
| Manufacturer's Product Code | GDS37x0-RFID-RD |
| Card supported | Generic RFID card |
| Working Frequency | 125KHz |
| Power Supply | DC 5V (±4%) |
| Electric Current | Standby Current 20mA; Operation Current Less Than 35 mA |
| Operating Distance | 0-40mm effective distance, the use of ID card and the Reader |
| Working Temperature | -10°C ~ 70°C |
| Storage Temperature | -20°C ~ 80°C |
| Dimensions | 108.5mm x 108.5mm x 24mm |
| USB Cable Length | 1.5 Meters |
| Details | |
|---|---|
| Power Supply | Included |
Specifications
| Details | |
|---|---|
| Manufacturer's Product Code | GDS37x0-RFID-RD |
| Card supported | Generic RFID card |
| Working Frequency | 125KHz |
| Power Supply | DC 5V (±4%) |
| Electric Current | Standby Current 20mA; Operation Current Less Than 35 mA |
| Operating Distance | 0-40mm effective distance, the use of ID card and the Reader |
| Working Temperature | -10°C ~ 70°C |
| Storage Temperature | -20°C ~ 80°C |
| Dimensions | 108.5mm x 108.5mm x 24mm |
| USB Cable Length | 1.5 Meters |
