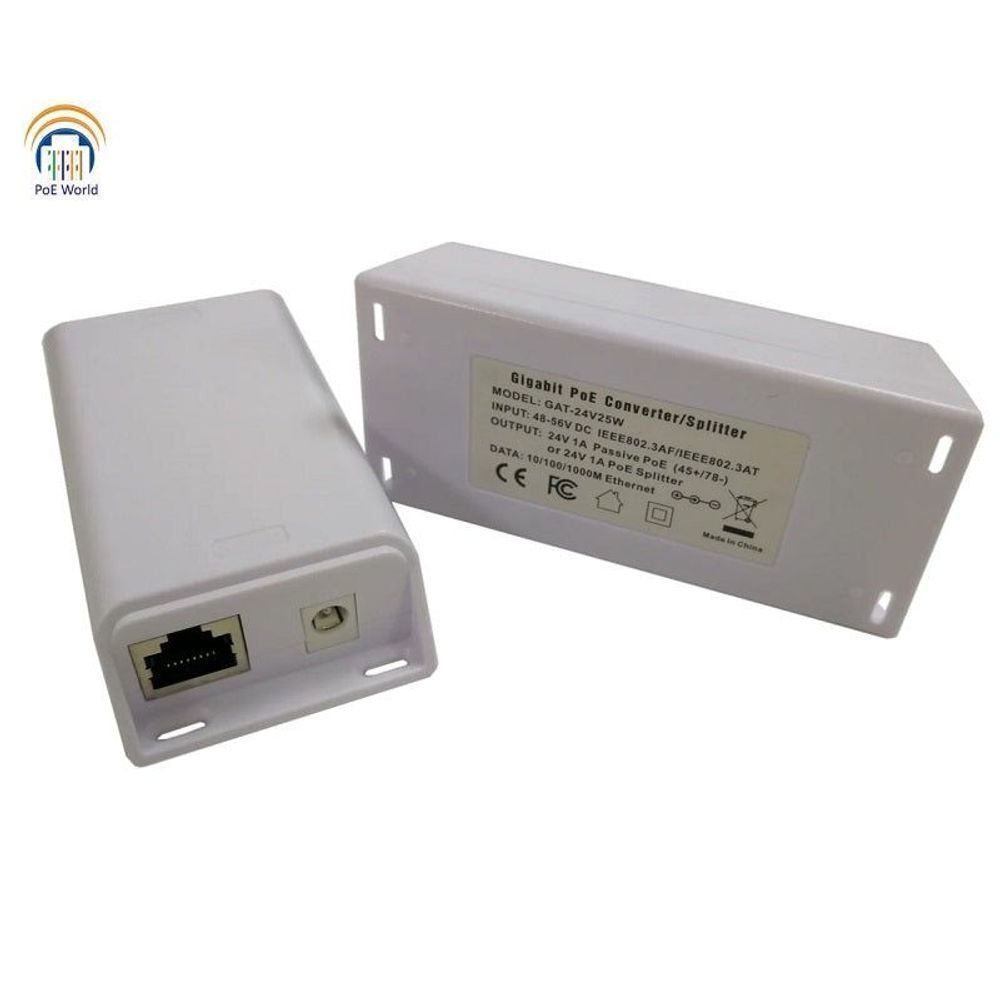

Name: GAT-24v25w - PoE World 802.3at compatible Active PoE to 24v passive Gigabit Splitter
Brand: PoE World
SKU: GAT-24v25w
Price: 47.15 NZD
Availability: InStock

GAT-24v25w - PoE World 802.3at compatible Active PoE to 24v passive Gigabit Splitter

GAT-24v25w

$47.15

Tax included.

15 items available

Select quantity

Expected delivery date Wednesday, March 19 and Saturday, March 22. if ordered today - (Sunday, March 16).

Description

The PoE World 802.3at compatible Active PoE to 24v passive Gigabit Splitter (GAF-24v25w) provides a low cost solution for delivering power to a 24 volt camera or routers over 328ft of network cable.

This device allows power to be carried on 10/100/1000 networks with either 802.3af /802.3at or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable. It also can be used as POE Converter, this device will step the 48 volts down to 24 volts.

Features

Perfect for adding a single 24v powered device to your 802.3at switch
Acts as two devices in one: Use it to convert IEEE 802.3at PoE+ standard to 24 volt passive PoE OR Connect a 2.1 mm adapter and convert PoE+ power to 24 volt DC with "split" gigabit data on the RJ45 out port
Compatible with Ubiquiti and Mikrotik
Provides continuous 24 volts, 25 watts of power - Automatically converts voltage
Offers a more secure network via direct Ethernet
Compatible with an IEEE 802.3at PoE Switch or injector (sold separately)
Mode A/B compatible
2.1mm x 5.5mm DC power plug standard output

Details
Manufacturer's Code	GAT-24v25w
RJ45 PoE Female Input	42-57v DC IEEE 802.3af / IEEE 802.3at
Power and data source	RJ 45 male connector, 802.3af or 802.3at
Input Voltage Max	Up to 57 volts
Input Current at 48v	650 ma input delivers . .1A out
Data Pins in and out	All 4 pairs for data are preserved
Data speeds	10/100/1000 mbit/s
Power input mode A	1&2 and 3&6 – either polarity
Power input mode B	4&5 (plus) and 7&8 (minus)
RJ45 Female Output	24V 1A Passive PoE 4,5 (plus) 7,8 (minus) or 24V 1A PoE Splitter
Power and data to load	RJ-45 female, 24v mode B power
DC connector	2.1mm x 5.5mm
Power Output Mode B	45 + and 78 – Isolated
Output Voltage Max load	24v +- 2% at 1.04 amps 25 watts
Output Voltage no load	24v
Operating Temperature	0°C ~ 50°C
Size	120 x 50 x 22 mm

Details

Specifications

Details
Manufacturer's Code	GAT-24v25w
RJ45 PoE Female Input	42-57v DC IEEE 802.3af / IEEE 802.3at
Power and data source	RJ 45 male connector, 802.3af or 802.3at
Input Voltage Max	Up to 57 volts
Input Current at 48v	650 ma input delivers . .1A out
Data Pins in and out	All 4 pairs for data are preserved
Data speeds	10/100/1000 mbit/s
Power input mode A	1&2 and 3&6 – either polarity
Power input mode B	4&5 (plus) and 7&8 (minus)
RJ45 Female Output	24V 1A Passive PoE 4,5 (plus) 7,8 (minus) or 24V 1A PoE Splitter
Power and data to load	RJ-45 female, 24v mode B power
DC connector	2.1mm x 5.5mm
Power Output Mode B	45 + and 78 – Isolated
Output Voltage Max load	24v +- 2% at 1.04 amps 25 watts
Output Voltage no load	24v
Operating Temperature	0°C ~ 50°C
Size	120 x 50 x 22 mm
