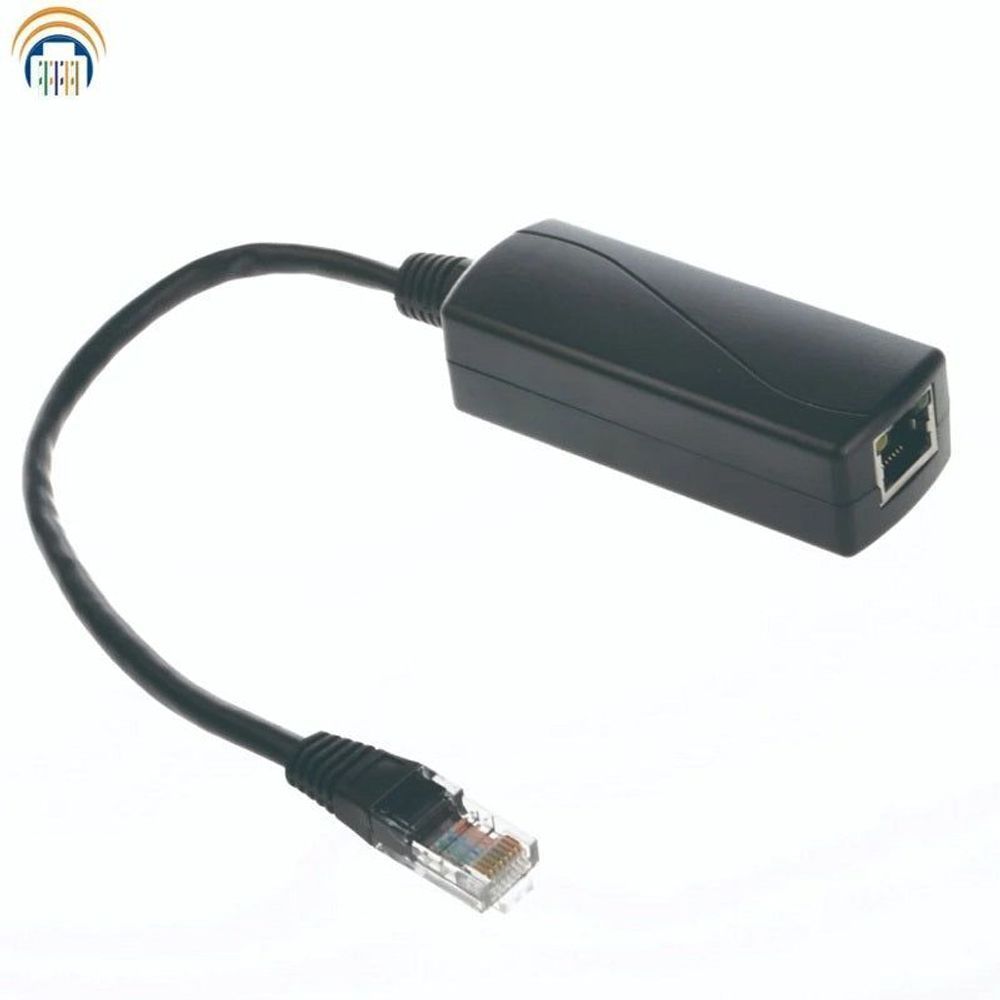

The PoE World GAT-24v24w-N 802.3af/at to 24V Passive PoE Converter provides a low cost solution for delivering power to a 24 volt PoE device over up to 100m of network cable. This device allows power to be carried on 10/100/1000 networks with either 802.3af, 802.3at or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.

This active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution. The switch supplies 48 or 56 volts DC at the source location. The splitter extracts the DC voltage from the network cable and reduces the voltage to 24v, and increases the available current by the same factor to power 24v client device via mode B power on the output female RJ45. Designed for dry indoor applications, the 24v DC output can power 24 watt devices up to 328 from the female output connector.
