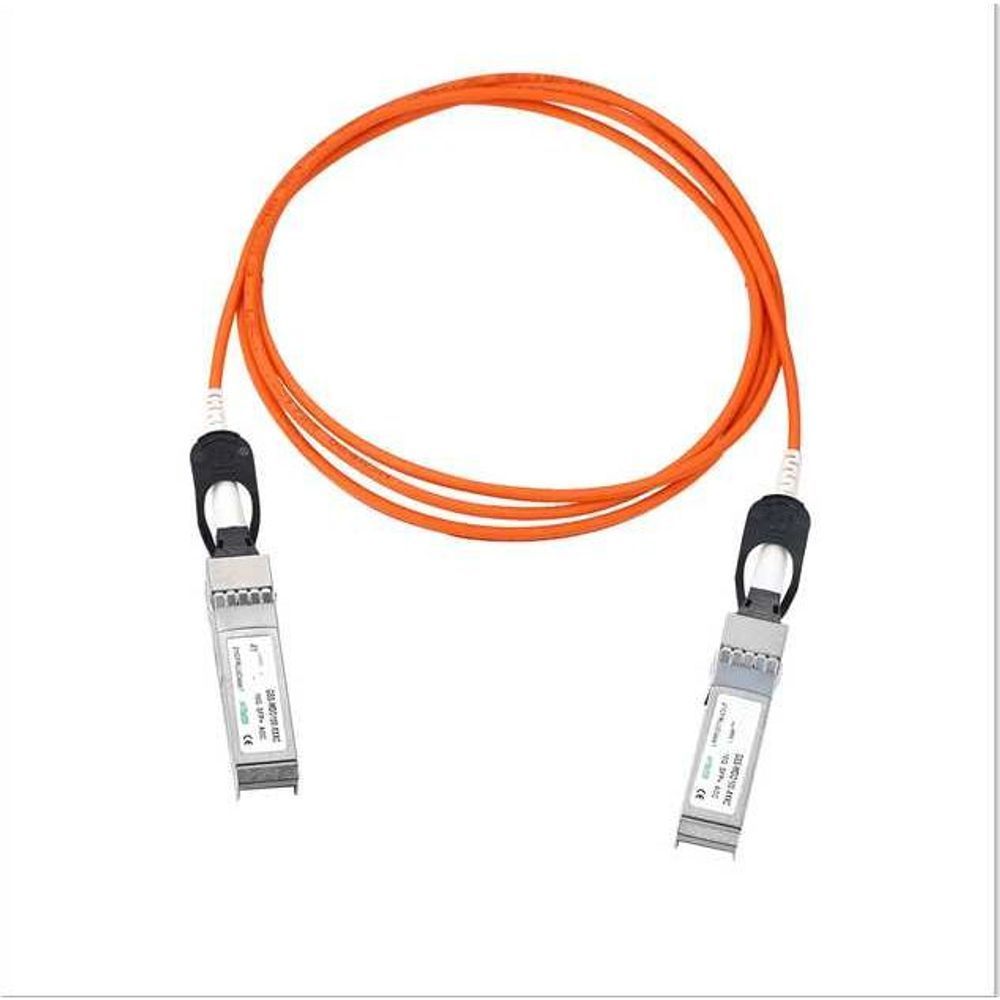

Name: FPL-SFP+10G-2 - 10G SFP+ Active Optical Cable - 2 Metre
Brand: Tech Supply Shed
SKU: FPL-SFP+10G-2
Price: 103.50 NZD
Availability: InStock

FPL-SFP+10G-2 - 10G SFP+ Active Optical Cable - 2 Metre

FPL-SFP+10G-2

$103.50

Tax included.

In stock, ready to be shipped

Select quantity

Description

10Gbps SFP+ Active Optical Cable - 2 Metre. SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. SFP+ Active Optical Cables’s length is up to 300 meters on OM3 MMF.

Tested with RB4011iGS+RM and RB4011iGS+5HacQ2HnD-IN which also require active SFP+ cables.

Features

Electrical interface compliant to SFF-8431
Hot Pluggable
850nm VCSEL transmitter, PIN photo-detector receiver
Up to 300m on OM3 MMF
Operating case temperature: 0 to 70 Degrees
All-metal housing for superior EMI performance
RoHS compliant (lead free)
10 Gigabit Ethernet
4G and 8G Fibre Channel Applications
1x InfiniBand QDR. DDR, SDR
High-performance computing clusters
Servers, switches, storage and host card adapters

Details
Connector Type 1	SFP+
Connector Type 2	SFP+
Cable Type	OM3 (50/125) multi-mode
Network Speed	up to 10Gbps
Cable Length	200CM
Module Form Factor	SFP+ (supports SFF8431/SFF8432/SFF8472)
Protocols supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate Rate	1 to 10.3125Gbps
Operating Case Temperature	0 to + 70ºC
Storage Temperature	-20 to + 85ºC
Supply Voltage	3.3V
Supply current	230mA per end typical

Details

Specifications

Details
Connector Type 1	SFP+
Connector Type 2	SFP+
Cable Type	OM3 (50/125) multi-mode
Network Speed	up to 10Gbps
Cable Length	200CM
Module Form Factor	SFP+ (supports SFF8431/SFF8432/SFF8472)
Protocols supported	InfiniBand, Ethernet, Fiber Channel
Channel Data Rate Rate	1 to 10.3125Gbps
Operating Case Temperature	0 to + 70ºC
Storage Temperature	-20 to + 85ºC
Supply Voltage	3.3V
Supply current	230mA per end typical
