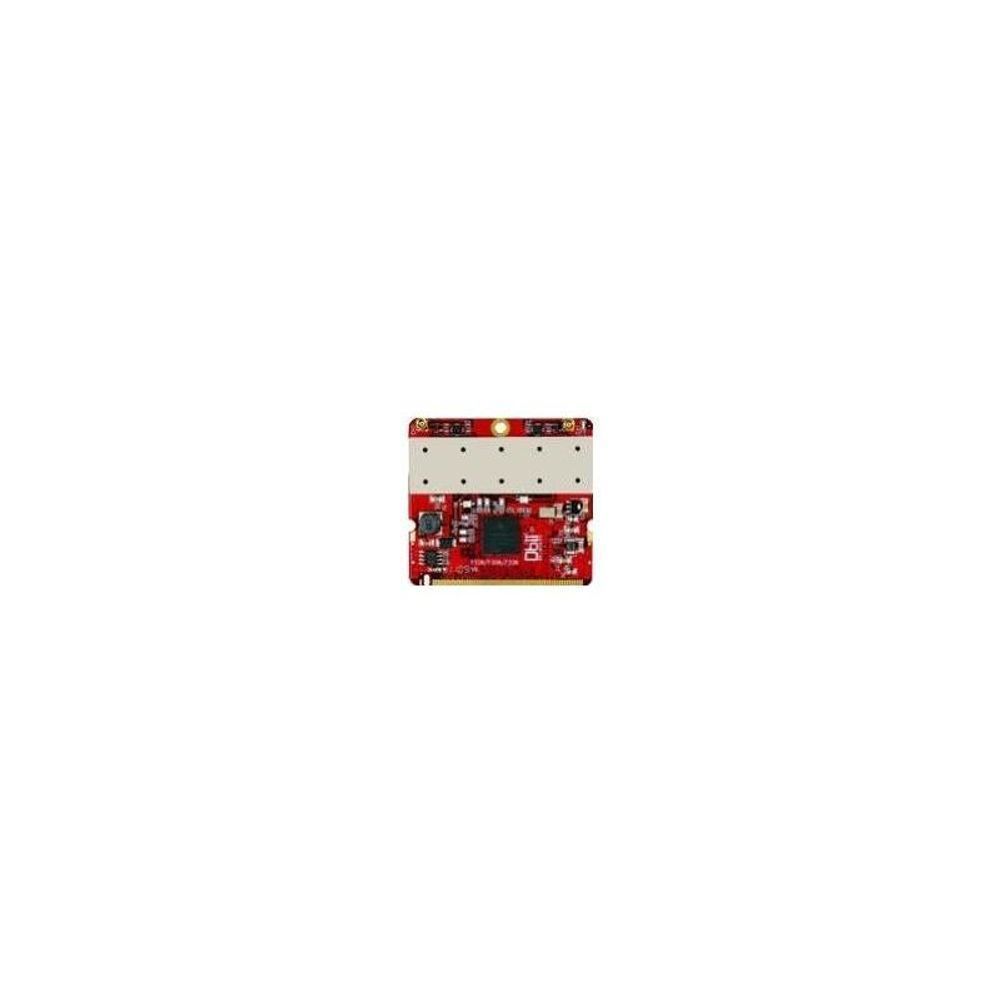

Dbii Networks F50N-PRO is a high powered 28dBm 802.11 a/n and 5GHz integrated Lightning & ESD* protected band device with robust surge protection capabilities built-in by default. It employs DBii's patent pending architecture that integrates the protection for the Radio Frequency (RF) antenna port. Output power and best in class receive sensitivity and gain are designed with long distance outdoor wireless networks in mind. The F50N-PRO card is also FCC approved for both in the 4.9GHz public safety band and use in 5GHz band. *Lightning or Surge protection is different than ESD. Other manufacturers might claim both, but they only have ESD protection. DBii PRO cards have both built-in.
Details |
|
Product code |
F50N-PRO |
Chipset |
AR9220 |
Connector |
2x MMCX |
Frequency Range |
4.9-6GHz |
Output Power |
28 dBm |
Form Factor |
MiniPCI |
Wireless Standards |
802.11a/n |
OS Compatibility |
Mikrotik RouterOS, Peplink, Ikarus, Wilibox |
Max Power Consumption |
7.5 Watts (Peak) |
Specifications
Dbii Networks F50N-PRO is a high powered 28dBm 802.11 a/n and 5GHz integrated Lightning & ESD* protected band device with robust surge protection capabilities built-in by default. It employs DBii's patent pending architecture that integrates the protection for the Radio Frequency (RF) antenna port. Output power and best in class receive sensitivity and gain are designed with long distance outdoor wireless networks in mind. The F50N-PRO card is also FCC approved for both in the 4.9GHz public safety band and use in 5GHz band. *Lightning or Surge protection is different than ESD. Other manufacturers might claim both, but they only have ESD protection. DBii PRO cards have both built-in.
Details |
|
Product code |
F50N-PRO |
Chipset |
AR9220 |
Connector |
2x MMCX |
Frequency Range |
4.9-6GHz |
Output Power |
28 dBm |
Form Factor |
MiniPCI |
Wireless Standards |
802.11a/n |
OS Compatibility |
Mikrotik RouterOS, Peplink, Ikarus, Wilibox |
Max Power Consumption |
7.5 Watts (Peak) |
