Description

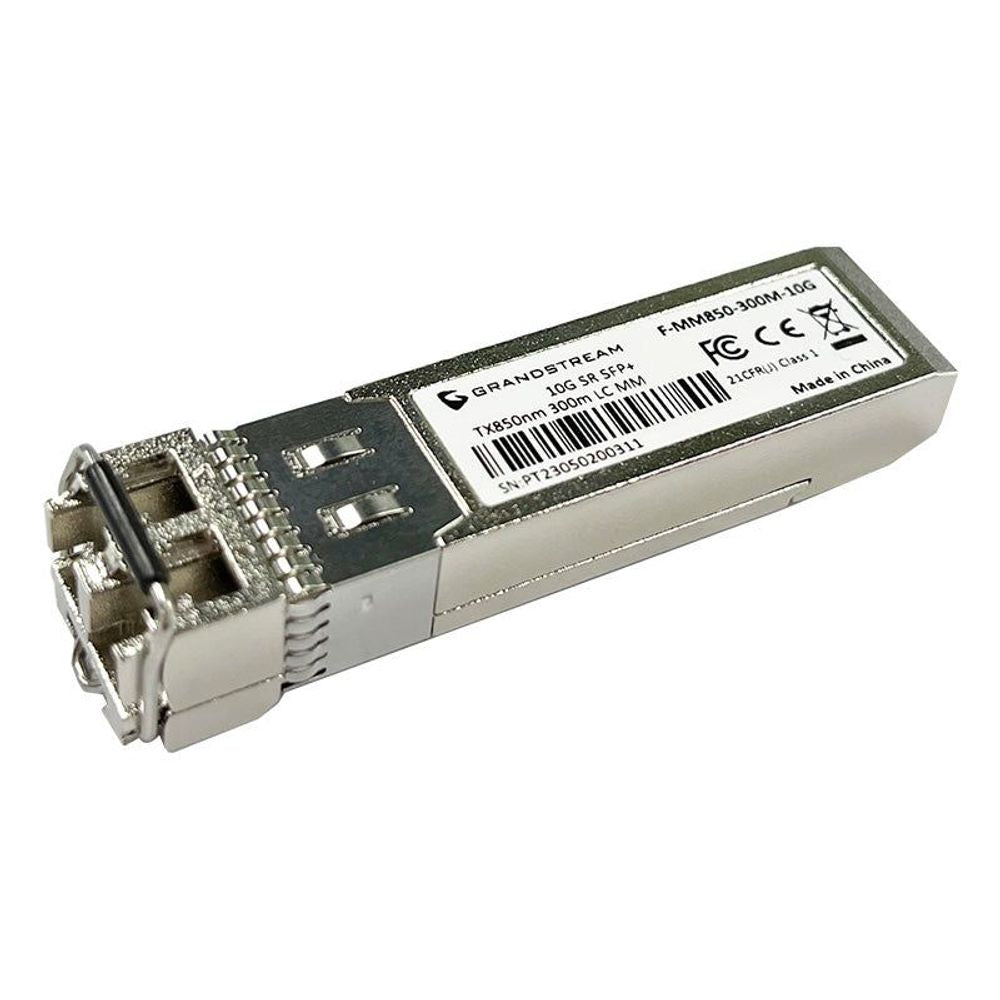

Grandstream SFP+ Fiber Module Multi-Mode, 850nm, 300-Meter, 10Gbps, LC.
Features
- Please select the fiber cable according to the module type. The multi-mode module corresponds to the multi-mode fiber, and the single-mode module corresponds to the single-mode fiber.
- Please select the same wavelength fiber cable for connection.
- Please select an appropriate fiber module according to the actual networking situation to meet different transmission distance requirements.
- The laser of the Class 1 Laser Product is harmful to eyes. Do not look directly at the fiber connectors.
| Details | |
|---|---|
| Manufacturer's Code | F-MM850-300M-10G |
| Fiber Mode | Multi-Mode Fiber |
| Connector Type | Duplex LC |
| DDM | Yes, I2C for integrated Digital Diagnostic Monitoring |
| Nominal Wavelength | 850nm |
| Data Rate | 10Gbps SFP+ |
| Max Power Consumption | 1W |
| Transfer Distance | 0.3km |
| TX Power | -6 to -1dBm, ±3dB |
| RX Power | -11.1 to 0.5dBm, ±3dB |
| Operation Voltage | 3.3V±0.3V |
| Environmental | Operation: 0? to 70?, humidity: 5% to 85%, Storage: -40? to 85? |
| Unit Weight | 18.50g |
| Standards | SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6 |
| Compliance | FCC, CE, FDA |
| Details | |
|---|---|
Specifications
| Details | |
|---|---|
| Manufacturer's Code | F-MM850-300M-10G |
| Fiber Mode | Multi-Mode Fiber |
| Connector Type | Duplex LC |
| DDM | Yes, I2C for integrated Digital Diagnostic Monitoring |
| Nominal Wavelength | 850nm |
| Data Rate | 10Gbps SFP+ |
| Max Power Consumption | 1W |
| Transfer Distance | 0.3km |
| TX Power | -6 to -1dBm, ±3dB |
| RX Power | -11.1 to 0.5dBm, ±3dB |
| Operation Voltage | 3.3V±0.3V |
| Environmental | Operation: 0? to 70?, humidity: 5% to 85%, Storage: -40? to 85? |
| Unit Weight | 18.50g |
| Standards | SFF-8472, SFP+ MSA, IEEE 802.3ae, RoHS-6 |
| Compliance | FCC, CE, FDA |
