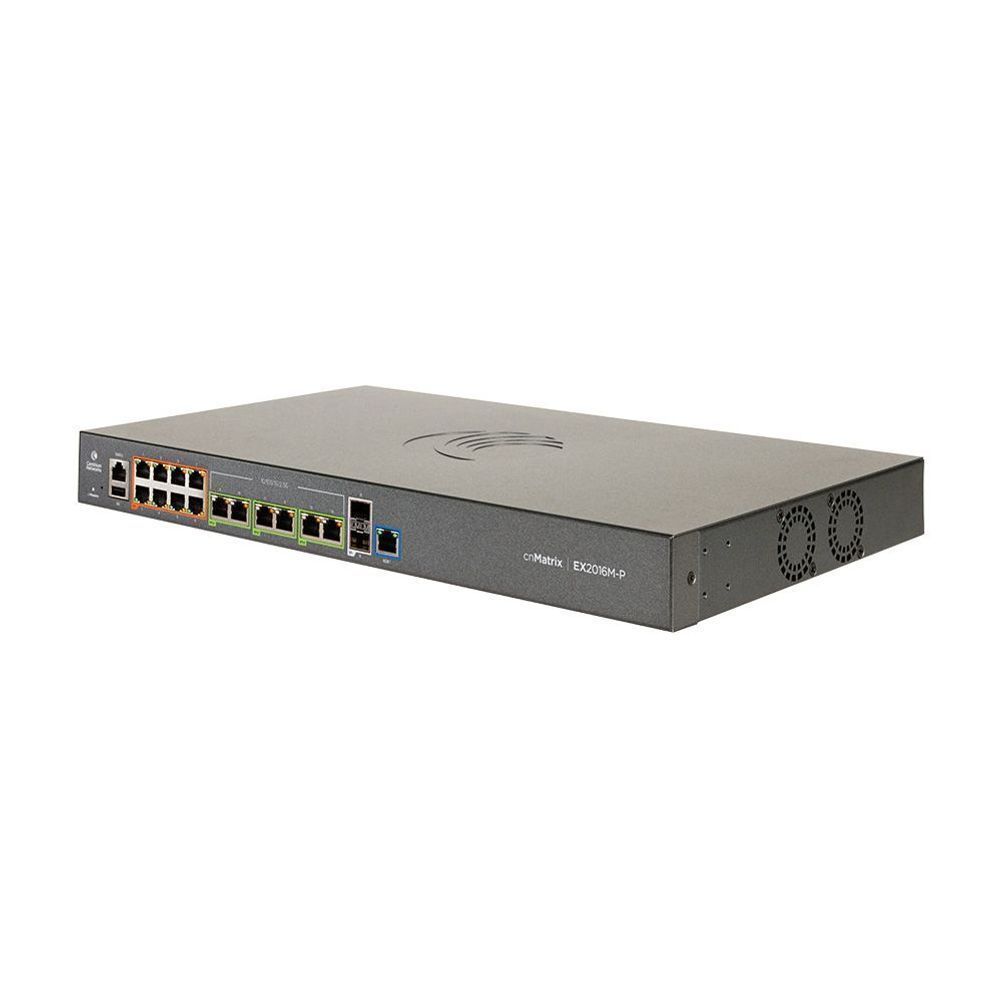

Name: EX2016M-P - Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+
Brand: Cambium Networks
SKU: EX2016M-P
Price: 3036.00 NZD
Availability: InStock

EX2016M-P - Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+

EX2016M-P

$3,036.00

Tax included.

2 items available

Select quantity

Description

Cambium cnMatrix EX2016M-P 16-Port Enterprise Cloud Managed PoE Switch with SFP+. Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports.

Features

6 x 2.5 Gigabit Compatible Ethernet Ports
Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
Zero-touch deployment of switches makes installation easy
Policy Based Automation eliminates manual and time consuming configuration
Enhanced Security with automated device profiling and segmentation
Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
Unified Wired-Wireless access solution
Non-blocking, line-rate architecture with fully featured L2/L3 switching
Limited lifetime warranty (5 Years)

Details
Manufacturers Product code	MXEX2016MXPA00
Non-Blocking Throughput	86Gbps
PoE Enabled Ports	14
PoE Power Budget	240W
Gigabit Ethernet Ports	8
2.5 G Ethernet Ports	6
Uplink Ports	2 SFP+
Serial Console Port	1 RJ45
USB	1 (Reserved for future use)
OOB Management Port	1
Internal Fans	2
Power Supply	AC/Internal
LEDs Per Port	Link/activity POE
Rack Mountable	Yes 1U
Rack Mount Kit	Included
Temperature Range	-0°C to +50°C
Operating Humidity	+55° at 95% RH
Storage Temperature	-40°C to +70°C
Weight	3.6kg
Dimensions	44 x 4.4 x 25cm

Details
Power Supply	(1) IEC Power Cord
Mounting Hardware	1U Rackmount Kit Included

Specifications

Details
Manufacturers Product code	MXEX2016MXPA00
Non-Blocking Throughput	86Gbps
PoE Enabled Ports	14
PoE Power Budget	240W
Gigabit Ethernet Ports	8
2.5 G Ethernet Ports	6
Uplink Ports	2 SFP+
Serial Console Port	1 RJ45
USB	1 (Reserved for future use)
OOB Management Port	1
Internal Fans	2
Power Supply	AC/Internal
LEDs Per Port	Link/activity POE
Rack Mountable	Yes 1U
Rack Mount Kit	Included
Temperature Range	-0°C to +50°C
Operating Humidity	+55° at 95% RH
Storage Temperature	-40°C to +70°C
Weight	3.6kg
Dimensions	44 x 4.4 x 25cm
