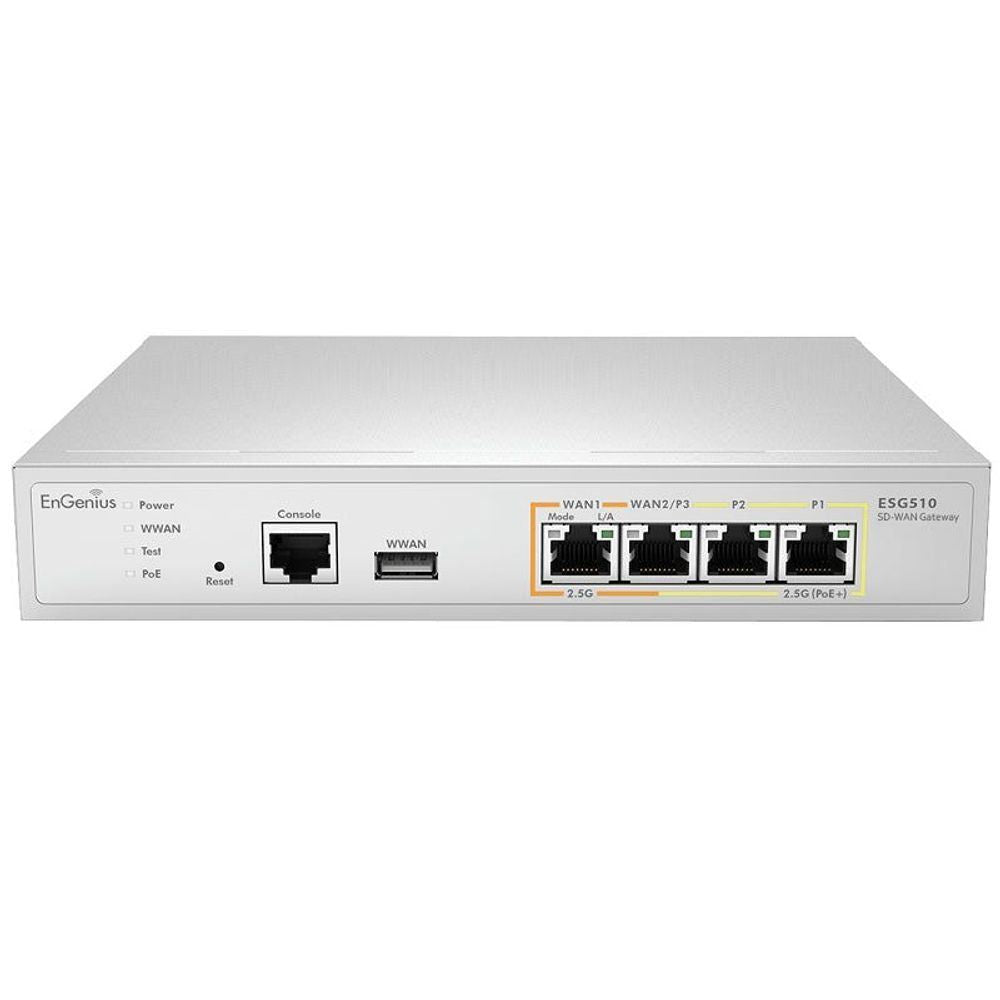

Name: ESG510 - EnGenius ESG510 Cloud Managed SD-WAN Security Gateway
Brand: EnGenius
SKU: ESG510
Price: 546.25 NZD
Availability: InStock

ESG510 - EnGenius ESG510 Cloud Managed SD-WAN Security Gateway

ESG510

$546.25

Tax included.

2 items available

Select quantity

Description

The EnGenius Cloud Managed ESG510 1.6GHz Quad-Core Security Gateway with Dual-WAN 2.5GbE, Dual-LAN 2.5GbE, cellular failover, stateful firewall, and site-to-site and client VPN. The EnGenius ESG510 Cloud SD-WAN gateway unifies your network perfectly, providing your IT team with an incredibly easy setup, enterprise-level security, and an end-to-end network solution that can be cloud-managed from absolutely anywhere.

Configure and manage for Free with EnGenius Cloud Here.

Features

Simple, unified cloud management for any size business
Intuitive and centralized device visibility from anywhere
Dual 2.5 GbE WAN and Dual 2.5 GbE LAN for maximum performance
Quad-core 1.6 GHz processor for greater speed and power
Built-in load balancing and safeguards with dual-WAN and cellular failover
2.5 GbE PoE+ to power up a Wi-Fi 6E AP, IP camera or IP phone
Stateful firewall with high-efficiency filtering and inspection to enhance security
High-speed and secure site-to-site VPN and client VPN
Quick self-healing VPN and VLAN setup for faster and easier deployments
Touchless system maintenance and automatic updates
Multi-mode passthrough and routing options
Captive portal with external radius capabilities

Details
Manufacturer's Code	ESG510
Network Ports	4 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports
Console Port	1 x 10/100/1000, RJ-45 Ethernet port
PoE+ Capable Port	1 (802.3af/at) LAN (P1)
USB	1 x USB 3.0
CPU Processor	Quad-Core
Memory	4GB
Storage	8GB
Firewall Features	Stateful Packet Inspection, Policy Rules, Port Forwarding, 1:1 NAT, Allow Inbound Services
Firewall (SPI throughput)	4 Gbps
Operating Frequency	1.6GHz
VPN Features	Site-to-Site VPN, Client VPN, Policy-based VPN, IPSec NAT traversal (NAT-T), Dead Peer Detection (DPD), Auto-VPN Connection, Auto NAT traversal
VPN Performance	970 Mbps
Max Concurrent VPN Tunnels	200
WANs	Dual (WAN 1 & WAN/P3)
Power Source	54V/1.2A
Dimensions	Weight: 0.97 kg, Width: 210mm, Length: 179.5mm, Height: 35mm
Mounting	Wall-mount

Details
Package Contents	Power adapter, Power cord, RJ-45 Console Cable, Wall Mount Kit, Quick Installation Guide

Specifications

Details
Manufacturer's Code	ESG510
Network Ports	4 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports
Console Port	1 x 10/100/1000, RJ-45 Ethernet port
PoE+ Capable Port	1 (802.3af/at) LAN (P1)
USB	1 x USB 3.0
CPU Processor	Quad-Core
Memory	4GB
Storage	8GB
Firewall Features	Stateful Packet Inspection, Policy Rules, Port Forwarding, 1:1 NAT, Allow Inbound Services
Firewall (SPI throughput)	4 Gbps
Operating Frequency	1.6GHz
VPN Features	Site-to-Site VPN, Client VPN, Policy-based VPN, IPSec NAT traversal (NAT-T), Dead Peer Detection (DPD), Auto-VPN Connection, Auto NAT traversal
VPN Performance	970 Mbps
Max Concurrent VPN Tunnels	200
WANs	Dual (WAN 1 & WAN/P3)
Power Source	54V/1.2A
Dimensions	Weight: 0.97 kg, Width: 210mm, Length: 179.5mm, Height: 35mm
Mounting	Wall-mount
