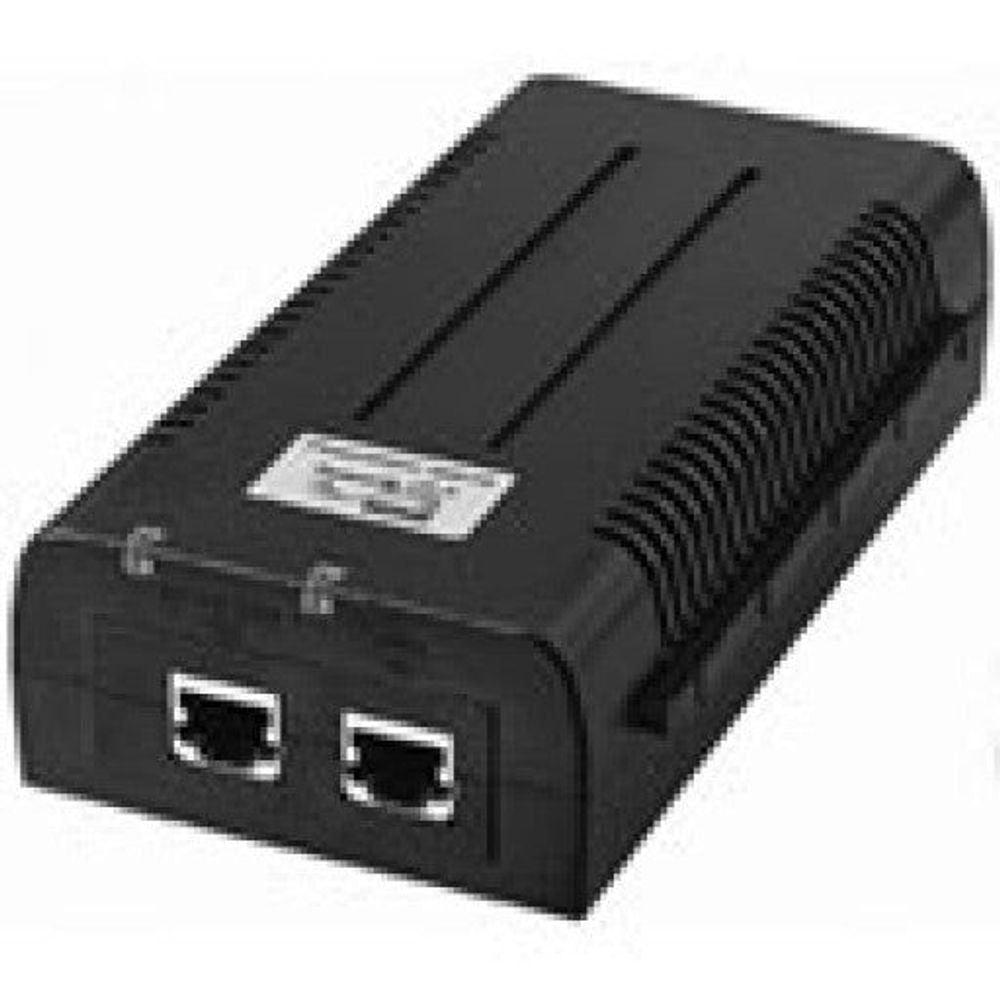

EH-60W-AC-PoE-EUAUSJP - PoE Injector 60W (100-240 AC source, EU/AUS/JP AC cable)

EH-60W-AC-PoE-EUAUSJP - PoE Injector 60W (100-240 AC source, EU/AUS/JP AC cable)

EH-60W-AC-PoE-EUAUSJP

$132.25

Tax included.

In stock, ready to be shipped
Select quantity
Description
Made for Siklu the Microsemi’s PD-ACDC60G single port power injector offers a compact and cost-effective power solution for high power WLAN access points, network cameras and other IP terminal installations. The ACDC60G converts AC power to 55VDC; the DC power is then provided over the Ethernet cable. The PD-ACDC60G supports up to 10/100/1000Mbps pass through data rates and includes hardware protection such as Overload protection and Short-Circuit protection. The single port injector can be powered via universal AC input and can provide up to 60W on 4 pairs.
Features
  • Output power of 60W over 4-pairs is guaranteed
  • supports 10/100/1000Base-T applications
  • Plug-and-play installation
  • Compact design fits easily in WLAN access point and IP camera installations
  • Not 802.3af/at compliant
  • Compatible with Siklu 500TX, 600TX, 700TX, 710TX, 1200TX, 1200FX, 2x00FX, 2x00FX, 5500FD, 8010FX
Details
Product Code EH-60W-AC-PoE-EU/AUS/JP
No. of Ports 1
Pass Through Data Rates 10/100/1000 Mbps
Power over Ethernet Output Pin Assignment and Polarity:Data Pairs 1/2 (-) and 3/6 (+),Spare Pairs 7/8 (-) and 4/5 (+),Output Power Voltage: 55 VDC,User Port Power: 60W over 4-pairs (Guaranteed)
Input Power Requirements AC Input Voltage: 100 to 240 VAC, AC Input Current: 1.5A @100-240 VAC, AC Frequency: 50 to 60 Hz
Dimensions 62 mm (W) x 38 mm (H) x 151 mm (L)
Weight Bare unit: 320g
Indicators AC Power: Yellow, Channel Power Indicator: Green
Connectors Shielded RJ-45, EIA 568A and 568B
Operating Ambient Temperature 14º to 104ºF (-10ºC to 40ºC) @60W, 14º to 131ºF (-10ºC to 55ºC) @30W
Operating Humidity Maximum 90%, Non-condensing
Storage Temperature –4º to 158ºF (–20º to 70ºC)
Storage Humidity Maximum 95%, Non-condensing
Reliability MTBF: 240,000 hrs. @25ºC
Thermal Rating 30 BTU/Hr (@100Vac)
Warranty 1-year
Regulatory RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emission & Immunity FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI
Safety Approvals UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1



Details
Power Cable Inlcuded





Specifications





Details
Product Code EH-60W-AC-PoE-EU/AUS/JP
No. of Ports 1
Pass Through Data Rates 10/100/1000 Mbps
Power over Ethernet Output Pin Assignment and Polarity:Data Pairs 1/2 (-) and 3/6 (+),Spare Pairs 7/8 (-) and 4/5 (+),Output Power Voltage: 55 VDC,User Port Power: 60W over 4-pairs (Guaranteed)
Input Power Requirements AC Input Voltage: 100 to 240 VAC, AC Input Current: 1.5A @100-240 VAC, AC Frequency: 50 to 60 Hz
Dimensions 62 mm (W) x 38 mm (H) x 151 mm (L)
Weight Bare unit: 320g
Indicators AC Power: Yellow, Channel Power Indicator: Green
Connectors Shielded RJ-45, EIA 568A and 568B
Operating Ambient Temperature 14º to 104ºF (-10ºC to 40ºC) @60W, 14º to 131ºF (-10ºC to 55ºC) @30W
Operating Humidity Maximum 90%, Non-condensing
Storage Temperature –4º to 158ºF (–20º to 70ºC)
Storage Humidity Maximum 95%, Non-condensing
Reliability MTBF: 240,000 hrs. @25ºC
Thermal Rating 30 BTU/Hr (@100Vac)
Warranty 1-year
Regulatory RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emission & Immunity FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI
Safety Approvals UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
