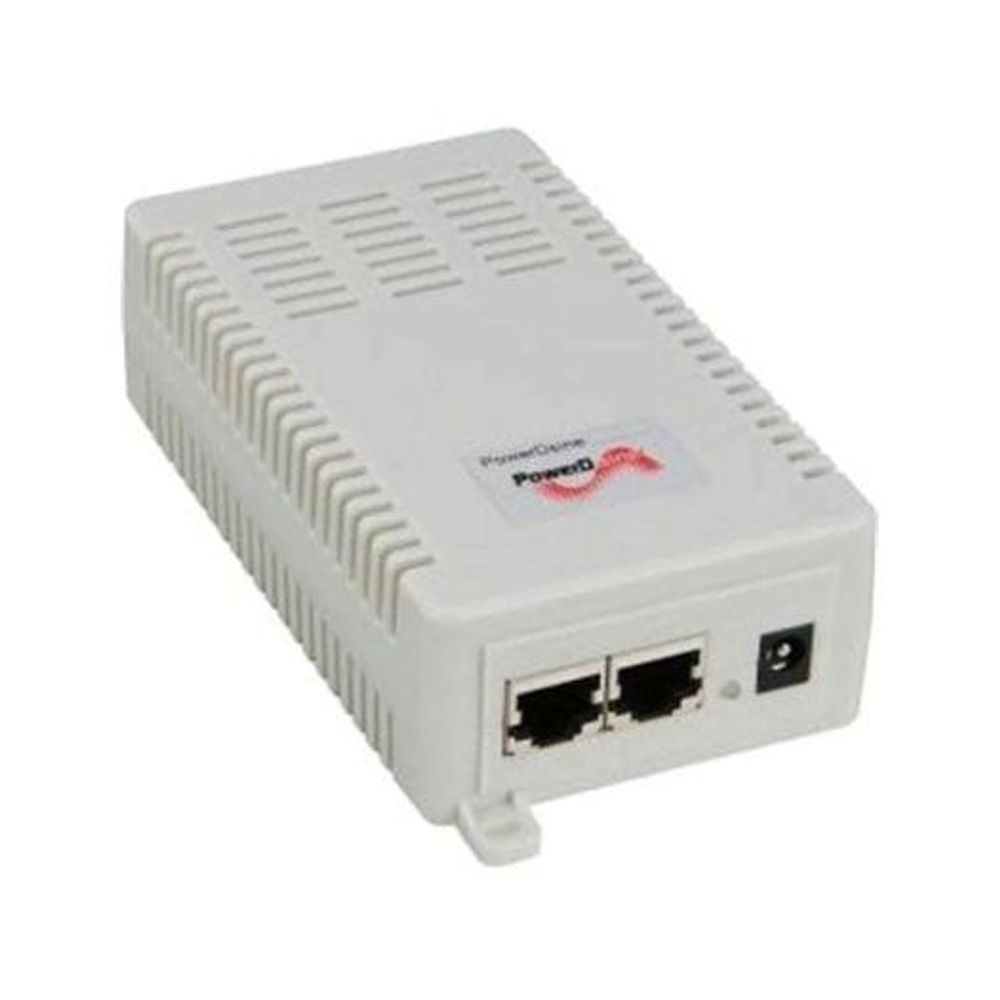

Name: EH-60W-48VDC-PoE - Siklu 60W Gigabit Single-port PoE Midspan 48VDC Input
Brand: Siklu
SKU: EH-60W-48VDC-PoE
Price: 253.00 NZD
Availability: InStock

EH-60W-48VDC-PoE - Siklu 60W Gigabit Single-port PoE Midspan 48VDC Input

EH-60W-48VDC-PoE

$253.00

Tax included.

4 items available

Select quantity

Description

Made by Microsemi’s the PD-9501G is a Best-of-Breed single port solution for remote powering of 802.3at devices in a 48VDC environment as well as high power applications.

It is designed specifically to power IEEE802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end-terminals with 60W of power and is also backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and Siklu Etherhaul radios.

Features

Up to 60W of power over 4-pairs
36-60 VDC input voltage
IEEE802.3at compliant
Plug-and-play installation
Guaranteed uptime

Details
Product Code	EH-60W-48VDC-PoE (PD-9501G/48VDC)
Pass Through Data Rates	10/100/1000 Mbps
Power over Ethernet Output	Pin Assignment and Polarity: Data Pairs 1/2 (-) and 3/6 (+), Spare Pairs 7/8 (-) and 4/5 (+), Output Power Voltage: 54-57 VDC, User Port Power: 60W Max.
Input Power Requirements	DC Input Voltage: 36-60 VDC, DC Input Current: 2A
Dimensions	87 mm (W) x 43 mm (H) x 166 mm (L), 3.46 in. x 1.68 in. x 6.53 in.
Weight	.992 lbs (450g)
Indicators	System Indicator: Green—AC Power, Channel Power: Green—Power delivered over 4 pairs
Connectors	Shielded RJ-45, EIA 568A and 568B
Ambient Operating Temperature	-4º to 104ºF (-20ºC to 40ºC) @60W, -4º to 122ºF (-20ºC to 50ºC) @30W
Operating Humidity	Maximum 90%, Non-condensing
Storage Temperature	–4º to 158ºF (–20º to 70ºC)
Storage Humidity	Maximum 95%, Non-condensing
Operating Altitude	–1000 to 10,000 ft. (–304.8 to 3048 m)
Reliability	MTBF: 228,000 hrs. @25ºC
Thermal Rating	40 BTU/Hr
Warranty	1-year
Regulatory	IEEE 802.3af (PoE), IEEE 802.3at, (including 2-event), RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emission & Immunity	FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity)
Safety Approvals	GS Mark Per IEC60950

Details
Instructions	Included

Specifications

Details
Product Code	EH-60W-48VDC-PoE (PD-9501G/48VDC)
Pass Through Data Rates	10/100/1000 Mbps
Power over Ethernet Output	Pin Assignment and Polarity: Data Pairs 1/2 (-) and 3/6 (+), Spare Pairs 7/8 (-) and 4/5 (+), Output Power Voltage: 54-57 VDC, User Port Power: 60W Max.
Input Power Requirements	DC Input Voltage: 36-60 VDC, DC Input Current: 2A
Dimensions	87 mm (W) x 43 mm (H) x 166 mm (L), 3.46 in. x 1.68 in. x 6.53 in.
Weight	.992 lbs (450g)
Indicators	System Indicator: Green—AC Power, Channel Power: Green—Power delivered over 4 pairs
Connectors	Shielded RJ-45, EIA 568A and 568B
Ambient Operating Temperature	-4º to 104ºF (-20ºC to 40ºC) @60W, -4º to 122ºF (-20ºC to 50ºC) @30W
Operating Humidity	Maximum 90%, Non-condensing
Storage Temperature	–4º to 158ºF (–20º to 70ºC)
Storage Humidity	Maximum 95%, Non-condensing
Operating Altitude	–1000 to 10,000 ft. (–304.8 to 3048 m)
Reliability	MTBF: 228,000 hrs. @25ºC
Thermal Rating	40 BTU/Hr
Warranty	1-year
Regulatory	IEEE 802.3af (PoE), IEEE 802.3at, (including 2-event), RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emission & Immunity	FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity)
Safety Approvals	GS Mark Per IEC60950
