Name: EdgePower 54V 150W DC Rack Mount PSU for EdgePoint Routers and Switches
Brand: Ubiquiti
SKU: EP-54V-150W
Price: 470.35 NZD
Availability: OutOfStock

EdgePower 54V 150W DC Rack Mount PSU for EdgePoint Routers and Switches

EP-54V-150W

$470.35

Tax included.

Out of stock

Select quantity

Description

Ubiquiti EdgePower, 54V, 150W DC Power Supply for Powering EdgePoint Units, Supports AC/DC and DC/DC PSU Modules

EdgePower 54V 150W DC Rack Mount Power Supply Unit for EdgePoint Routers and Switches. The Ubiquiti EdgePower is a high-power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices.

The EdgePower uses two modular PSUs for flexible configuration options. The EdgePower can utilise two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.

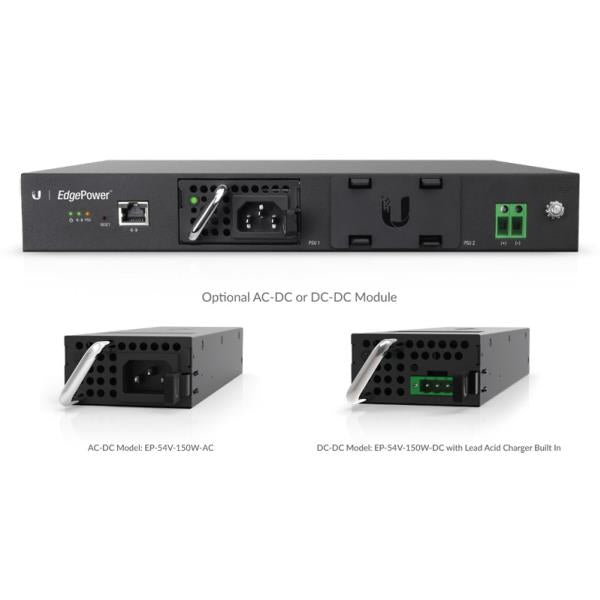

The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one EP-54V-150W-AC PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately).

The EdgePower provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower may be configured to deliver up to 300W of power.

The secondary PSU may be configured as a backup PSU. In backup mode, the secondary PSU remains inactive and offline. If a failure of the primary PSU is detected, the secondary PSU automatically activates to supply continuous power.

Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface. The EdgePower may be connected to the LAN for remote monitoring and configuration.

Features

Flexible, Modular PSU Design
supports up to Two 150W PSU Modules
Secondary AC-DC or DC-DC PSU Available

Details
Manufacturer's Product Code	ES-54V-150W
Dimensions without Mount Brackets	299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.68")
Weight without Mount Brackets	2.7 kg (5.95 lb)
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply Module	54V, 150W AC/DC, Model EP-54V-150W-AC, Installed in PSU 1
Maximum Power Output PSU	150W (1 PSU Module), 300W (2 PSU Modules @ 150W Each)
LEDs	Power - System On/Off, Ethernet - Management Port Link, PSU - PSU1+PSU2, PSU1/PSU2
Networking Interface	(1) 10/100 RJ45 Ethernet
Management Interface	Ethernet In-Band, Web UI
Rack-Mount	Yes, 1U High
Operating Temperature	0 to 40° C (32 to 104° F)
Operating Humidity	10 to 90% RH
ESD/EMP Protection	Air ± 24KV; Contact ± 24KV
Certifications	CE, FCC, IC

support

Details
Power Supply	1 x EP-54V-150W-AC included
Mounting	Rackmount (1U) ears included

Warranty

1 Year

Brand

Ubiquiti

Restock ETA (if applicable)
