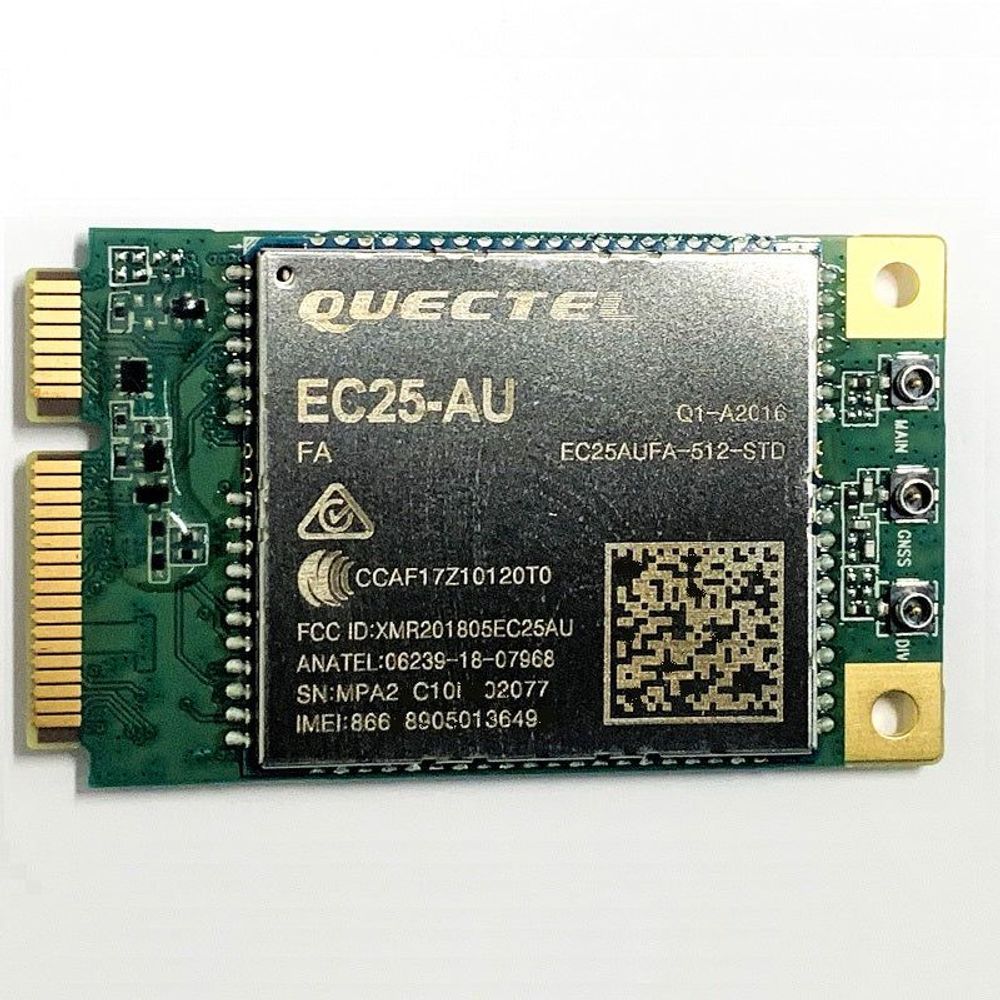

Name: EC25-AU - Quectel EC25-AU 4G LTE Cat 4 mini-PCIe Module with B28
Brand: Tech Supply Shed
SKU: EC25-AU
Price: 148.35 NZD
Availability: InStock

EC25-AU - Quectel EC25-AU 4G LTE Cat 4 mini-PCIe Module with B28

EC25-AU

$148.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

Quectel EC25-AU 4G LTE Cat 4 mini PCIe Module with B28. The EC25-AU is an LTE category 4 module in an LCC form factor measuring 32.0mm × 29.0mm × 2.4mm. The EC25-AU delivers maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. It is also backward-compatible with existing 2G networks, ensuring that it can be connected even in remote areas devoid of 3G or 4G network coverage. The EC25-AU is optimized for networks in Australia, New Zealand, Brazil, and Taiwan.

The EC25-AU supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multiconstellation GNSS receiver greatly simplifies product design, and provides quicker, more accurate and dependable positioning.

A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications including industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.

Features

LTE category 4 module
Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
Max. 150Mbps downlink / 50Mbps uplink under LTE
LCC form factor
Extended temperature range of -40°C to +85°C
supports DFOTA, DTMF, MIMO and QuecLocator
Compatible with MikroTIk RouterBoard (LTE interface supported)

Details
Product code	EC25-AU
Region/Operator	Latin America/Australia/New Zealand
Dimensions (mm)	32.0 × 29.0 × 2.4
Operating Temperature	-35°C to +75°C
Extended Temperature	-40°C to +85°C
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B28
LTE-TDD	B40
WCDMA	B1/B2/B5/B8
GSM/EDGE	B2/B3/B5/B8
GNSS	GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
Regulatory	Global: GCF, America: FCC, Taiwan (China): NCC, Brazil: Anatel, Australia/New Zealand: RCM, Others RoHS/WHQL
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	130 (DL)/ 30 (UL)
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	296 (DL)/ 236.8 (UL)
GPRS Data Rates (kbps)	107(DL)/ 85.6 (UL)
(U)SIM	x 1
UART	x 2
USB 2.0	x 1
Audio Digital (PCM)	x 1
I2C	x 1
SDIO	x 2
SGMII	x 1
ADC	x 2
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)
USB Serial Driver	"Windows 7/8/8.1/10, Linux 2.6–5.4,
Android	4.x–9.x"
GNSS Driver	Android 4.x–9.x
RIL Driver	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10
MBIM	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4
Supply Voltage Range	3.3–4.3V, 3.8 V Typ.
Power Consumption	11 µA @ Power off, 1.3 mA @ Sleep, Typ., 22 mA @ Idle

Manufacturer Website

Details

Specifications

Details
Product code	EC25-AU
Region/Operator	Latin America/Australia/New Zealand
Dimensions (mm)	32.0 × 29.0 × 2.4
Operating Temperature	-35°C to +75°C
Extended Temperature	-40°C to +85°C
LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B28
LTE-TDD	B40
WCDMA	B1/B2/B5/B8
GSM/EDGE	B2/B3/B5/B8
GNSS	GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional)
Regulatory	Global: GCF, America: FCC, Taiwan (China): NCC, Brazil: Anatel, Australia/New Zealand: RCM, Others RoHS/WHQL
LTE-FDD Data Rates (Mbps)	150 (DL)/ 50 (UL)
LTE-TDD Data Rates (Mbps)	130 (DL)/ 30 (UL)
DC-HSPA+ Data Rates (Mbps)	42 (DL)/ 5.76 (UL)
WCDMA Data Rates (kbps)	384 (DL)/ 384 (UL)
EDGE Data Rates (kbps)	296 (DL)/ 236.8 (UL)
GPRS Data Rates (kbps)	107(DL)/ 85.6 (UL)
(U)SIM	x 1
UART	x 2
USB 2.0	x 1
Audio Digital (PCM)	x 1
I2C	x 1
SDIO	x 2
SGMII	x 1
ADC	x 2
Speech Codec Modes	HR/FR/EFR/AMR/AMR-WB
Echo Arithmetic	Echo Cancellation/Noise Suppression
VoLTE	Digital Audio and VoLTE (Voice over LTE) (Optional)
USB Serial Driver	"Windows 7/8/8.1/10, Linux 2.6–5.4,
Android	4.x–9.x"
GNSS Driver	Android 4.x–9.x
RIL Driver	Android 4.x–10.x
NDIS	Windows 7/8/8.1/10
MBIM	Windows 8/8.1/10, Linux 3.18–5.4
GobiNet Driver	Linux 2.6–5.4
QMI_WWAN Driver	Linux 3.4–5.4
Supply Voltage Range	3.3–4.3V, 3.8 V Typ.
Power Consumption	11 µA @ Power off, 1.3 mA @ Sleep, Typ., 22 mA @ Idle
