Name: E396119 - Elo 2002L 19.5 Inch Zero Bezel Projected Capacitive Touch Display Screen
Brand: Digitech
SKU: 701799
Price: 2149.0 NZD
Availability: OutOfStock

Elo projected capacitive touch display monitor, black zero-bezel screen with stand

Elo projected capacitive touch monitor with black zero-bezel display and base stand

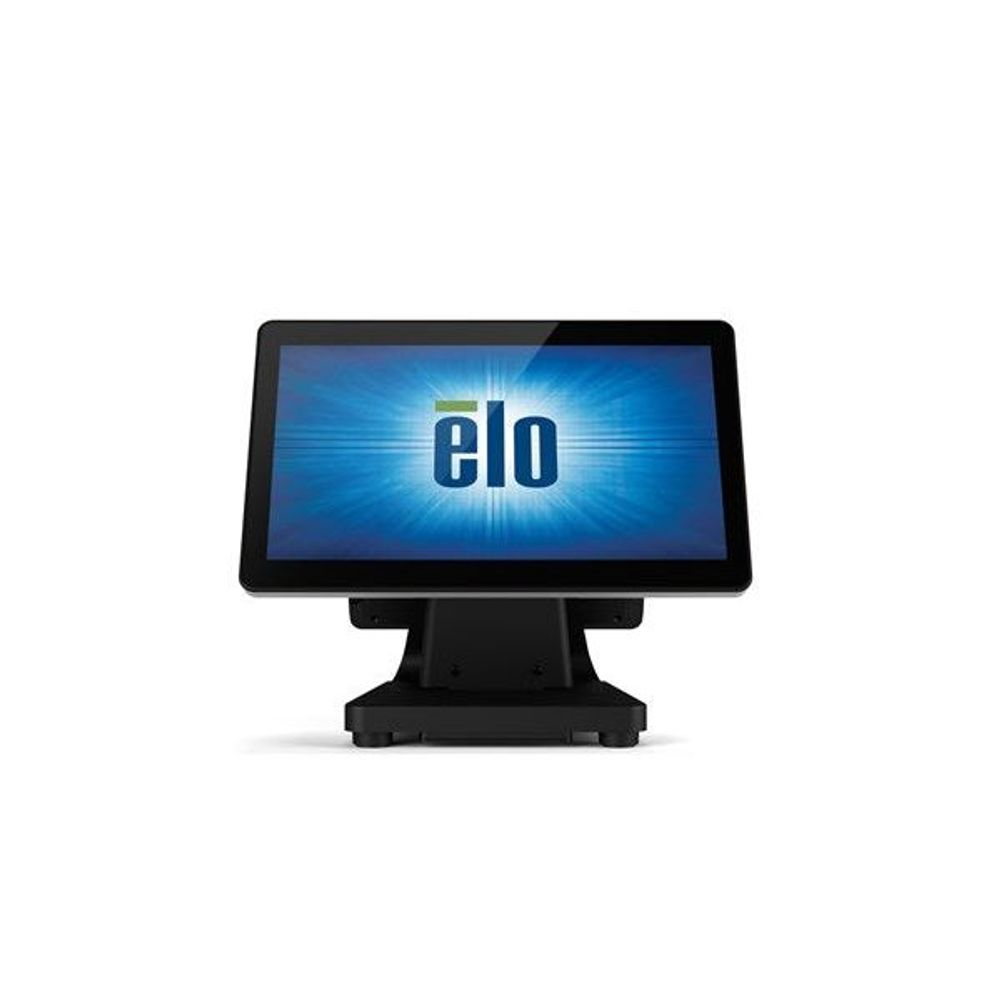

Elo zero-bezel touch display monitor in black, front view with pedestal stand

E396119 - Elo 2002L 19.5 Inch Zero Bezel Projected Capacitive Touch Display Screen

701799

$2,149.00

Tax included.

Out of stock

Select quantity

Description

701799

The Elo M-Series 2002L 20-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo’s industry-leading TouchPro® PCAP technology. The sleek, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 2002L well suited for high traffic environments.

Our TouchPro® PCAP technology supports touch through functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Specifications

• Touch Technology: PCAP (TouchPro® Projected Capacitive) - 10 Touch

• Diagonal Size: 19.5" diagonal, Active matrix TFT LCD (LED)

• Aspect Ratio: 16:9

• Active Area: 436.9 x 240.7mm

• Resolution : 1920x1080

• Horizontal Viewing Angle: ±89° or 178° total

• Vertical Viewing Angle: ±89° or 178° total

• Number of Colors : 16.7 million

• Brightness (typical) LCD panel: 250 nits

• Brightness (typical) TouchPro® PCAP: 230 nits

• Response Time-total (typical) : 20 msec

• Contrast Ratio: 3000:1

• Input Video Format: HDMI, Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included)

• Touch Interface: USB

• Speakers: Two 2W internal speakers

• Case Style : Desktop

• Mounting Options : VESA 4-hole 75mm and 100mm mounting interface on rear of unit

• Enclosure Color: Black

• Power Supply: External AC/DC Adapter

• Monitor input Voltage: 12VDC

• Monitor Input Jack: Pin OD:2.0mm, Barrel ID:6.4mm

• AC/DC I/P Voltage: 100-240VAC, 50/60Hz, O/P Voltage: 12VDC

• AC/DC I/P Connector: IEC 60320 C14, O/P Connector: DC Jack ID: 2.1mm, OD: 5.5mm

• Power Consumption ON: 18.4W

• Power Consumption SLEEP: 0.33W

• Power Consumption OFF: 0.24W

• Operating Temperature : 0°C to 40°C

• Humidity Operating: 20% to 80%

• Sealability : Touchscreen sealed to bezel, Touchscreen sealed to LCD

• Monitor Dimensions (with Stand): 488.31(W) x 352.3(H) x 193.4(D)mm

• Weight: 6.8 Kg

Specifications

Packaged Volume : 56.45l

Packaged Weight : 8.3kg

Packaged Length : 56cm

Packaged Width : 42cm

Packaged Height : 24cm
