Name: Elo 1593L 15.6in Open Frame PCAP Display (E331799)
Brand: Elo
SKU: 701899
Price: 1949.0 NZD
Availability: InStock

15.6-inch Elo projected capacitive display, rear open-frame housing with mounting points

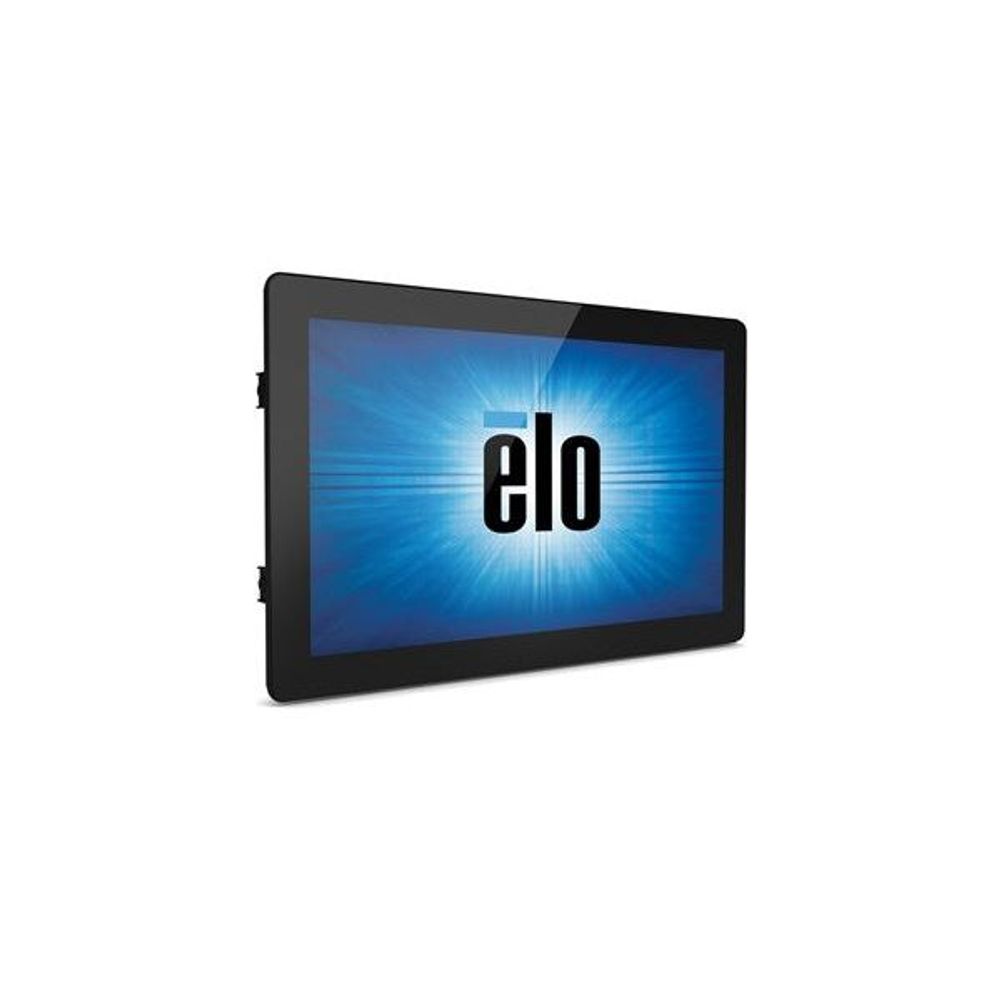

15.6-inch Elo projected capacitive display screen, angled front view with blue lightburst

Elo 1593L 15.6in Open Frame PCAP Display (E331799)

701899

$1,949.00

Tax included.

Select quantity

Description

701899

The Elo 1593L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Our TouchPro® PCAP technology supports touch through functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Specifications:

• Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch

• Diagonal Size: 15.6" diagonal, Active matrix TFT LCD (LED)

• Aspect Ratio: 16:9

• Active Area: 344.232 x 193.536mm

• Resolution: 1366 x 768

• Horizontal Viewing Angle: ±80° or 160° total

• Vertical Viewing Angle: ±80° or 160° total

• Number of Colors: 16.7 million

• Brightness (typical) LCD panel: 300 nits

• Brightness (typical) TouchPro PCAP: 270 nits

• Response Time-total (typical): 10ms

• Contrast Ratio: 500:1

• Input Video Format: HDMI, VGA, or DisplayPort

• Touch Interface: USB

• Input Voltage: 12VDC (PSU NOT included)

• Power Consumption On: 13.6 W

• Power Consumption Sleep: 1.5 W

• Power Consumption Off: 0.5W

• Monitor Dimensions: 376.8(W) x 221.1(H) x 46.3(D)mm

• Weight: 3.02kg

Specifications

Length : 376.8mm

Width : 46mm

Height : 221.1mm

Weight : 3.02g

Packaged Volume : 27l

Packaged Weight : 4.48kg

Packaged Length : 46.6cm

Packaged Width : 33.3cm

Packaged Height : 17.4cm
