Name: Dlink DGS-1210-28MP 28-Port Gigabit PoE Switch
Brand: D-Link
SKU: DGS-1210-28MP
Price: 1701.0 NZD
Availability: OutOfStock

Dlink smart managed PoE gigabit switch, front with 28 RJ45 Ethernet ports

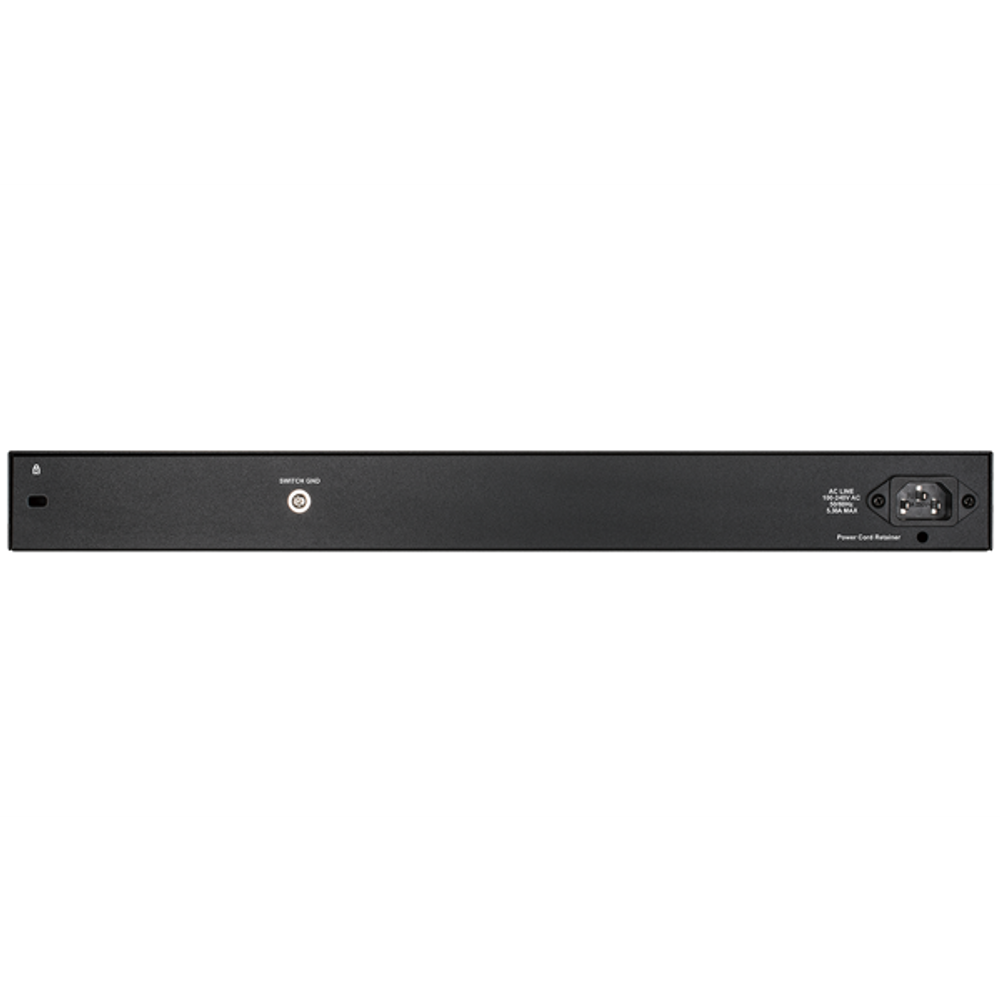

Dlink 28-port gigabit PoE switch, rear panel with power and port connectors

Dlink DGS-1210-28MP 28-Port Gigabit PoE Switch

DGS-1210-28MP

19% OFF

$1,701.00 $2,123.10

Tax included.

Out of stock

Select quantity

Description

Overview

28-Port Gigabit Smart Managed PoE Switch

DGS-1210-28MP

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

24 x 10/100/1000BASE-T PoE ports
4 x Gigabit GbE/SFP combo ports
Advanced L2 switching and security features
L2+ Static Routing
Optional “standard mode” or “surveillance mode” management user interface
370W PoE budget

Specifications

1000Base-T PoE Interface	24
Combo 1000Base-T/SFP	4
Auto MDI/MDIX	Yes
10/100/1000BASE-T PoE ports	24
Combo 10/100/1000BASE-T/SFP ports	4
Switch Capacity	56 Gbps
Max. Packet Forwarding Rate	41.7 Mpps
Store & Forwarding Forwading	Yes
Dimension	440mm x 250 mm x 44mm
Weight	3.94 kg
Operation Temperature	-5 - 50°C
Storage Temperature	-20-70°C
Operation Humidity	0% - 95% RH
Storage Humidity	0% ~ 95% RH
Operating Altitude	1500 meters
Maximum Power Consumption	PoE on <br>446.1 W/100 V <br>424.8 W/240 V<br> PoE off <br>29.8 W/100 V <br>29.0 W/240 V
Standby Power Consumption	18.5 W/100V / 17.1 W/240V
Maximum Heat Dissipation	1521.99 BTU/hr (100 V) <br>1449.49 BTU/hr (240 V)
MTBF	277,967 hours
Power Input	100-240 VAC
CPU Speed	500MHz
Flash Memory Size	32MB
Packet Buffer Size	4.1MBits
DRAM Size	DDR3 128MB
FAN	Yes
Comply with RoHS 6	Yes
Energy Efficiency Ethernet (EEE)	Yes
Power Saving By Link Status	Yes
Power Saving By Cable Length	Yes
Power Saving By Port Shut-Off	Yes
Power Saving By System Hibernation	Yes
Time-based PoE	Yes
Maximum PoE Budget	370W
PoE Budget	370 W
802.3x Flow Control	Yes
Head-of-line (HOL) Blocking Prevention	Yes
MAC Address Table Size	8K
802.1D Spanning Tree (STP)	Yes
802.1w Rapid Spanning Tree (RSTP)	Yes
802.1s Multiple Spanning Tree (MSTP)	Yes
Root Restriction	Yes
802.3ad Link Aggregation	Yes
Link Aggregation Group Per Device	4
Max Port Per Link Aggregation Group	8
Port Mirroring	Yes
Jumbo Frame	10,000 Bytes
Loopback Detection (LBD)	Yes
Max IGMP Snooping Groups	256
IGMP Snooping Fast Leave	Yes
IGMP Snooping	Yes
MLD Snooping	Yes
MLD Snooping Groups	Yes
MLD Snooping Fast Leave	Yes
802.1Q VLAN	Yes
VLAN Groups	Yes
Port-based VLAN	Yes
Voice VLAN	Yes
Auto Surveillance VLAN	Yes
Asymmetric VLAN	Yes
ARP	Yes
IP Interface	Yes
Max Number of IP Interface	4
ARP Entries	Yes
IPv6 Neighbor Discovery (ND)	Yes
ND Entries	128
Default Route	Yes
Static Route	Yes
Class of Service (CoS)	Yes
Number of Queue	Yes
Strict Priority Queue (SPQ)	Yes
Weighted Round Robin (WRR)	Yes
Port-based Bandwidth Control	Yes
Max Access Control List (ACL) Entries	Yes
MAC Access List	Yes
IP Access List	Yes
IPv6 Access List	Yes
SSH	Yes
SSL	Yes (only support TLS 1.0)
Port Security	Yes
Broadcast/Multicast/Unicast Storm Control	Yes
Traffic Segmentation	Yes
Smart IP-MAC-Port Binding (Smart IMPB)	Yes
D-Link Safeguard Engine	Yes
DHCP Server Screening	Yes
ARP Spoofing Prevention	Yes
DoS Attack Prevention	Yes
802.1X	Yes
Port based 802.1X Authentication	Yes
Authentication for Management Access	Yes
RADIUS	Yes
Trusted Host	Yes
Cable Diagnostics	Yes
Web-based GUI	Yes
SNMP Trap	Yes
SNMP	Yes
Telnet Server	Yes
RMONv1	Yes
TFTP Client	Yes
System Log	Yes
D-Link Discover Protocol (DDP)	Yes (v0.26)
LLDP-MED	Yes
LLDP	Yes
Dual Images	Yes
DHCP relay	Yes
DHCP/BootP Client	Yes
Ping	Yes
Dual Configurations	Yes
D-Link Network Assistant	Yes (Chrome edition)
Debug Command	Yes
Smart Wizard	Yes
Simple Network Time Protocol (SNTP)	Yes
