Description

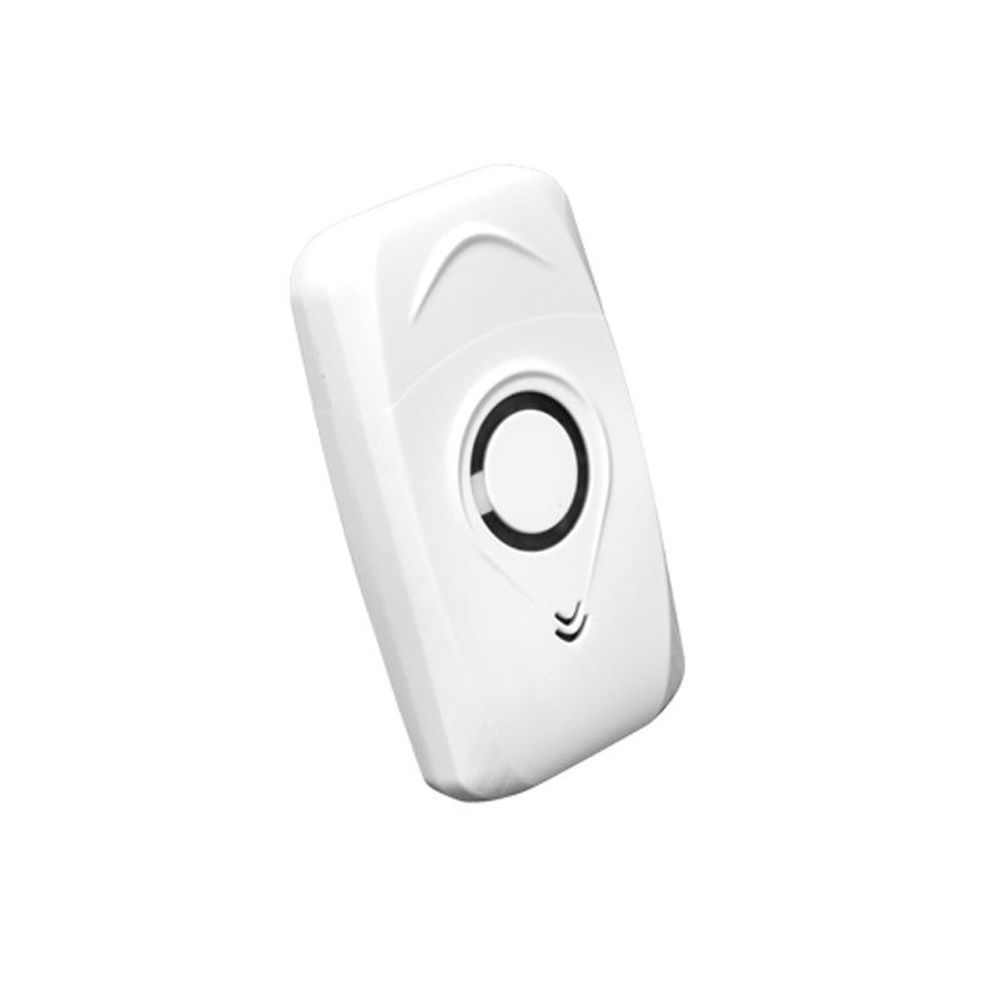

The Micro Tracker is versatile and multi-purpose. With its small size and long battery life, it is the ideal product for contact back-tracing and numerous tracking applications of things of value, people or pets. At the touch of a button, you have access to a variety of functionalities personalized for your needs.
Applications include:
• Workforce optimization and safety: lone workers monitoring, tracking, zone alerts and SOS panic button alerts on construction sites, mines, oil & gas platforms, factories and other industrial indoor and outdoor facilities
• Contact back-tracing, proximity detection for sanitary policy enforcement
• Tracking and monitoring of assets, vehicles, machines and equipment
• Antitheft applications, notification and location trigger when device is moving, at fixed frequency updates or on demand
• Geofencing applications: alerts when leaving/entering specific areas
• Personal tracking with help button: employees, elderly, children
• Personal assets protection: cars, motorbikes, bikes, keychains, luggage, handbags or pets.
Need help selecting the right IoT solution?
.
- Motion Tracking: High-resolution position when motion is detected
- Permanent tracking: Periodic interval position
- Start/End motion tracking: Receive position messages during motion start and end events
- Fix on demand: Obtain tracker position when needed (very low power operating mode)
- Activity tracking: Monitor activity rate with embedded sensors
- Geofencing zone detection
- Edge computing for Proximity detection and exposure assessment
- User interface: 80 dBa buzzer, bicolor LEDs, button
- Temperature monitoring
- LoRaWAN® Class A radio
- BLE Communication link with a phone
- Water-spray resistant enclosure (IP65)
- Firmware Upgrade via USB
- 450mAh rechargeable battery
- BLE scan function for inventory of and accessories
- Indoor BLE/WiFi fingerprinting with HERE Tracking (requires subscription)
- Indoor BLE based geolocation with Quuppa Intelligent Location (requires Quuppa infrastructure)
- BLE based safe/hazard zone detection
Details | |
---|---|
LoRaWAN® Modem | Semtech SX1261 |
Protocol | LoRaWAN Class A |
LoRaWAN® Frequency band | AS923MHz |
Configuration supported | LoRaWAN® OTA or ABP |
RF output power | 16.5 dBm (max) |
Min sensitivity of LoRaWAN® receiver | -130 dBm in SF10, -135 dBm in SF 12 |
Wi-Fi Frequency band | 2412 – 2472MHz |
WI-FI sniffer sensitivity | -86 dBm |
BLE sensitivity | -88 dBm |
BLE RF output power | 4 dBm max |
BLE frequency band | 2402 – 2480MHz |
GNSS band | 1575 – 1610MHz |
Size | 59mm x 34 mm x 13 mm (L x l x h) |
Weight | 21g |
Waterproof capability | IP65 |
Humidity | 5% to 95% non-condensing |
Operating temperature | -10°C to 55°C |
Charging temperature | 0°C to 45°C |
Storage temperature | 10°C to 30°C (recommended) |
Time storage max | 6 months |
Details | |
---|---|
Contains | Micro Tracker, Lanyard attachment |
Specifications
Details | |
---|---|
LoRaWAN® Modem | Semtech SX1261 |
Protocol | LoRaWAN Class A |
LoRaWAN® Frequency band | AS923MHz |
Configuration supported | LoRaWAN® OTA or ABP |
RF output power | 16.5 dBm (max) |
Min sensitivity of LoRaWAN® receiver | -130 dBm in SF10, -135 dBm in SF 12 |
Wi-Fi Frequency band | 2412 – 2472MHz |
WI-FI sniffer sensitivity | -86 dBm |
BLE sensitivity | -88 dBm |
BLE RF output power | 4 dBm max |
BLE frequency band | 2402 – 2480MHz |
GNSS band | 1575 – 1610MHz |
Size | 59mm x 34 mm x 13 mm (L x l x h) |
Weight | 21g |
Waterproof capability | IP65 |
Humidity | 5% to 95% non-condensing |
Operating temperature | -10°C to 55°C |
Charging temperature | 0°C to 45°C |
Storage temperature | 10°C to 30°C (recommended) |
Time storage max | 6 months |
