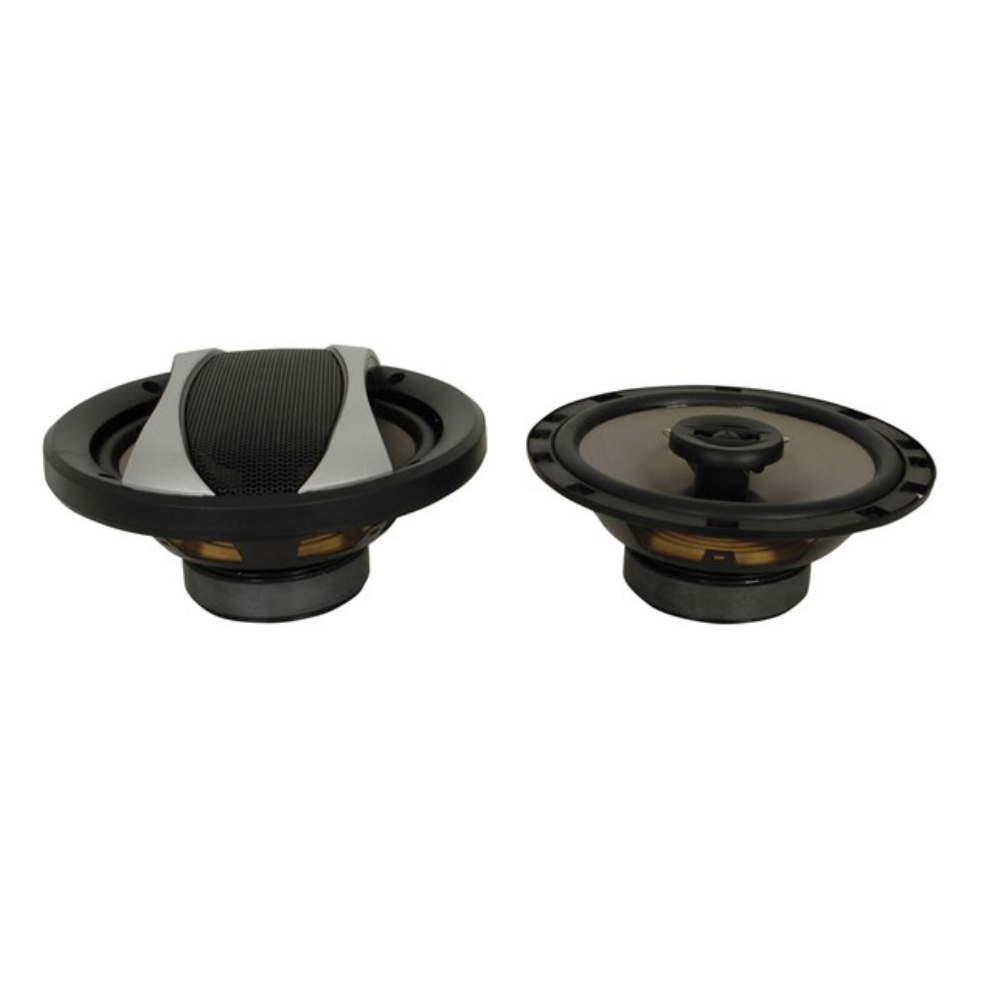

Pair of 6.5-inch two-way coaxial car speakers with black grilles and mounting rings

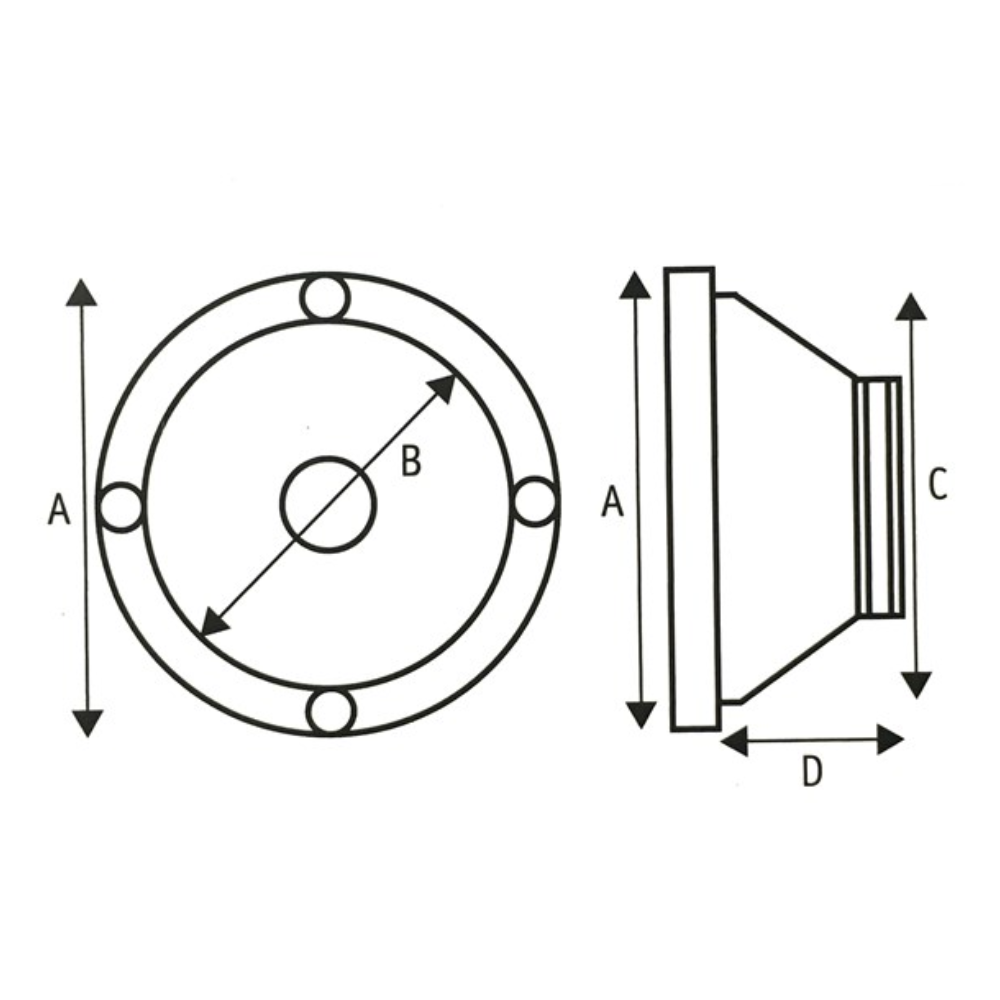

Two-way coaxial car speaker diagram with labeled drivers and mounting dimensions
6.5-inch 2-way coaxial car speaker retail box packaging
6.5-inch two-way coaxial car speaker with black mesh grille and silver trim ring
Pair of 6.5-inch two-way coaxial car speakers with black grilles and mounting rings
Two-way coaxial car speaker diagram with labeled drivers and mounting dimensions

CS2314 - Response 6.5 Inch Coax 2 Way Car Speakers

CS2314

$82.90

Tax included.

Select quantity
Description

All speakers in this range are equipped with titanium coated fibre woofers and silk dome tweeters for smooth high frequency response.

Sold as a pair.



Specifications



Speaker Specifications

Sold as a Pair

true

Speaker Type

woofer

Nominal Impedance

4.0 Ω

RMS Power Rating

22.0 W

Resonant Frequency

73.0 Hz

Sensitivity (SPL@1W, 1m)

88.0

Mechanical Q (Q<sub>ms</sub>)

3.85 &nbsp;

Electrical Q Factor (Q<sub>es</sub>)

1.25 &nbsp;

Total Q (Q<sub>ts</sub>)

0.94 &nbsp;

Equivalent Volume (V<sub>as</sub>)

13.4 l

Side-to-Side Diameter (A)

165.0 mm

Mounting Hole Diameter (B)

158.0 mm

Cutout Diameter (C)

142.0 mm

Insert Depth (D)

58.0 mm

Product Dimensions

Height

62.0 mm

Diameter

165.0 mm

Packaged Dimensions

Packaged Dimensions

35.0cm(Length) x 19.7cm(Width) x 10.0cm(Height)









Packaged Volume : 6.9l
Packaged Weight : 2kg
Packaged Length : 35cm
Packaged Width : 19.7cm
Packaged Height : 10cm
Height : 62mm
Diameter : 165mm
Warranty
Brand

Response

Restock ETA (if applicable)
