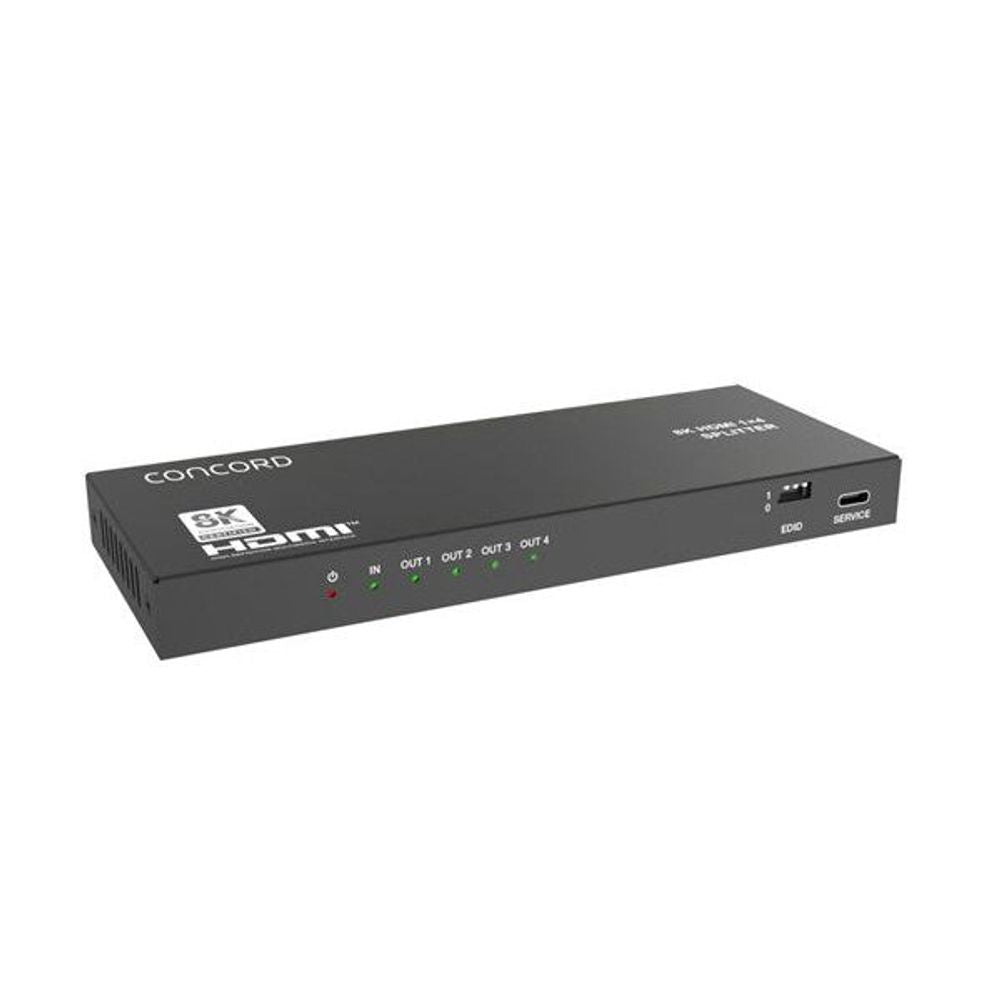

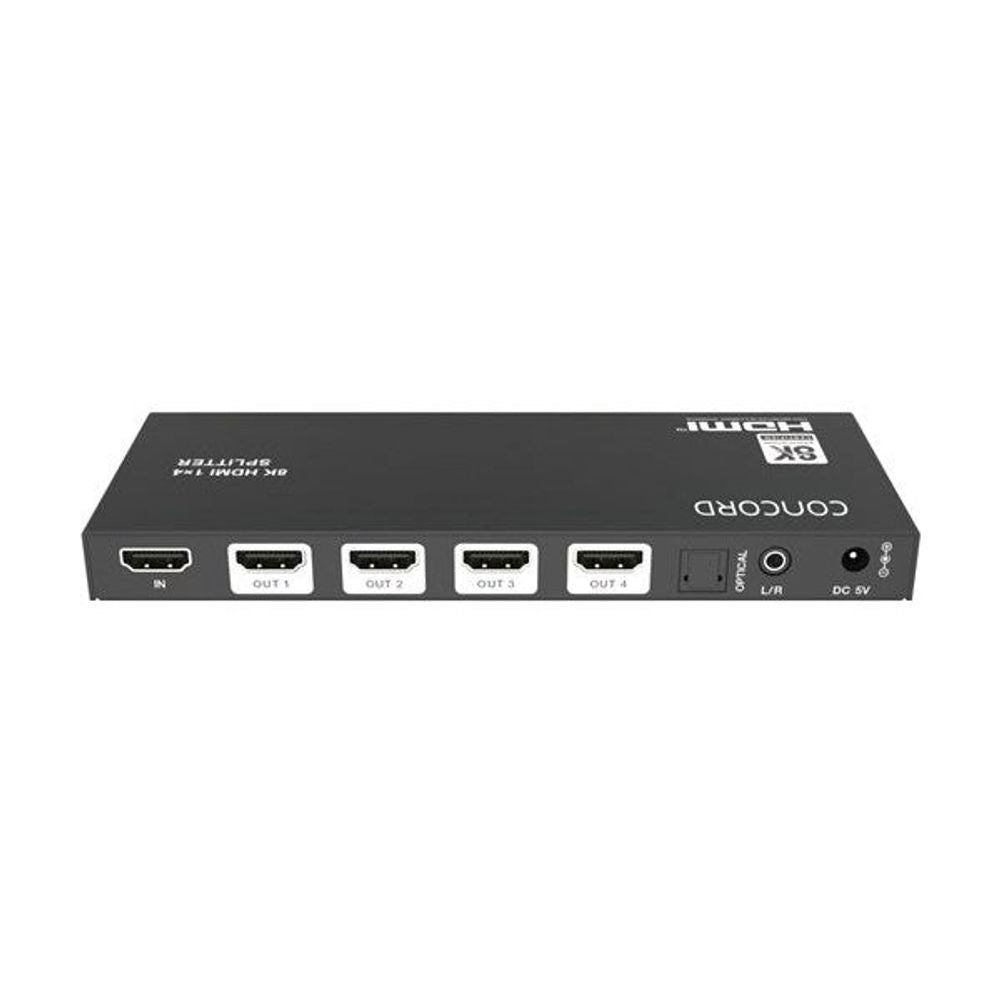

AC5008 Designed for applications requiring video sharing on up to four screens or recording devices, all while maintaining 8K at 60Hz. For gamers, it supports 4K at 120Hz, perfect for keeping up with the intensity of high-speed battles or races. The splitter features optical and analog audio outputs for seamless connection to an amplifier, advanced EDID management to ensure optimal video output, and auto downscaling and converting on each output port add to the versatility. Mains power adaptor included. • Supports resolution up to 8K@60Hz, 4K@120Hz, 8K@30Hz • Support 48Gbps FRL and 18Gbps TMDS video bandwidth • HDMI 2.1 and HDCP 2.3 compliant • VRR, ALLM, QMS, QFT, SBTM supported • Audio de-embedding via optical and analog port • Auto downscaling and converting on each output port • Advanced EDID management • ESD Protection Specifications: • Input: 1 x HDMI • Output: 4 x HDMI, 1 x Optical, 1 x 3.5mm Stereo Jack • HDMI Compliance: 2.1 • HDCP Compliance: 2.3, 1.4 • Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 8K@30Hz 4:4:4 12bit • Video Bandwidth: 48Gbps FRL and 18Gbps TMDS • Audio Formats:  -    HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD -    Audio de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH, Analog: LPCM 2CH • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG • Colour Depth: 8/10/12bit • Weight: 295g • Dimensions: 176(W) x 68(D) x 18(H)mm In the box: Splitter 5v 2A Mains power adapter w/1.5m cable and barrel plug Manual

Specifications
