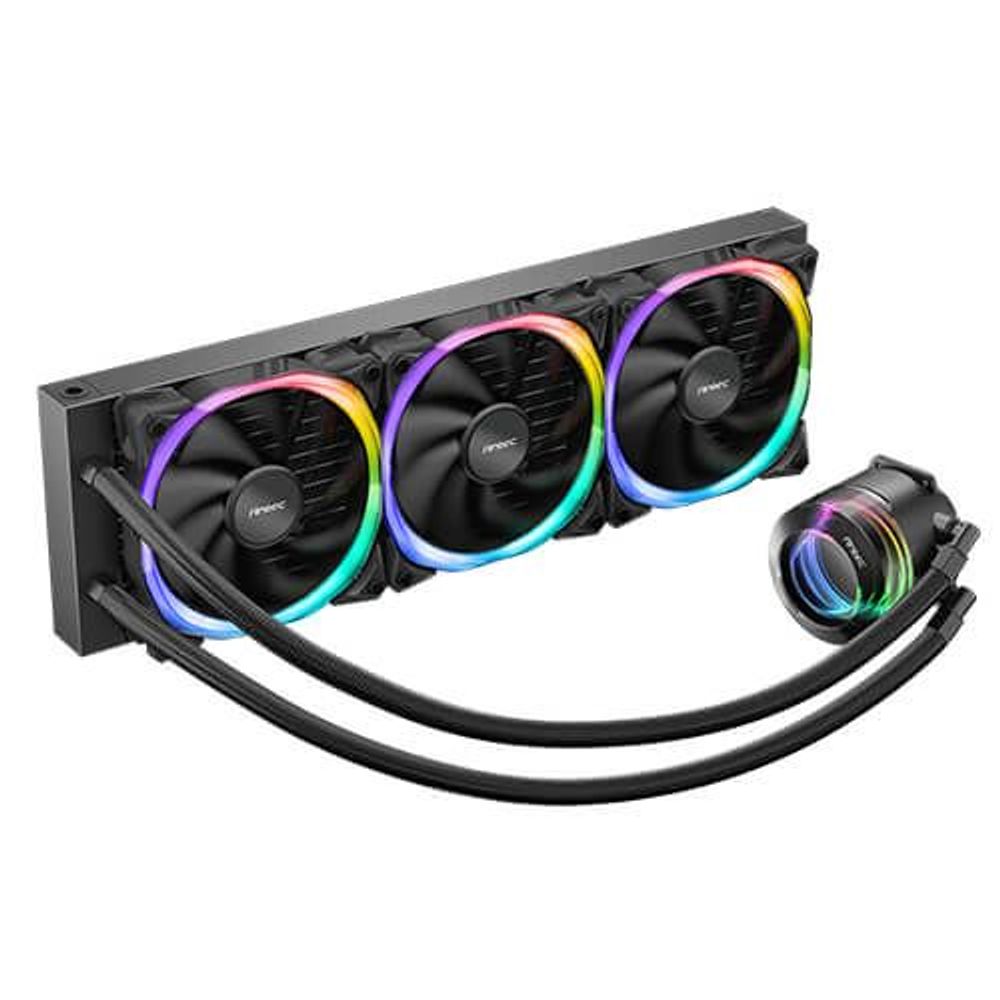

ARGB liquid cooling system showing three RGB fans, braided tubes, and pump block

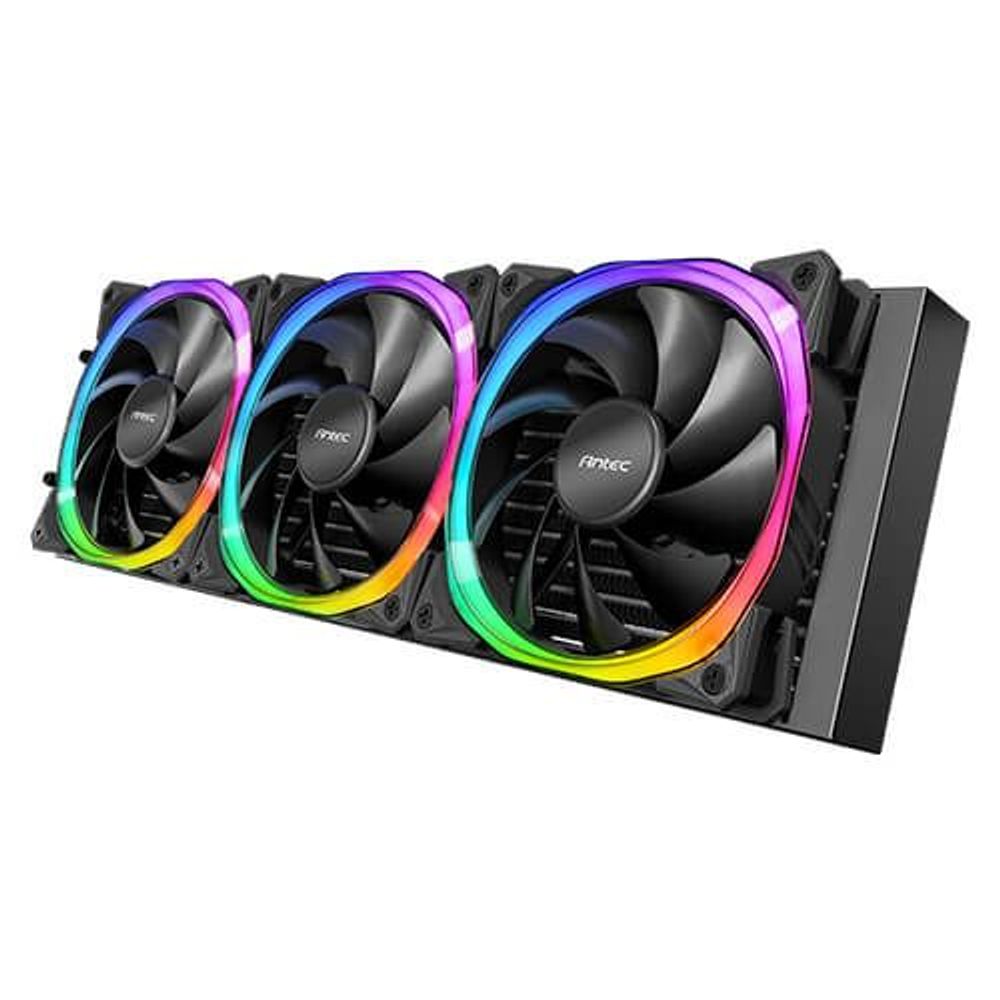

ARGB liquid cooler radiator with three fans and glowing rainbow LED rings

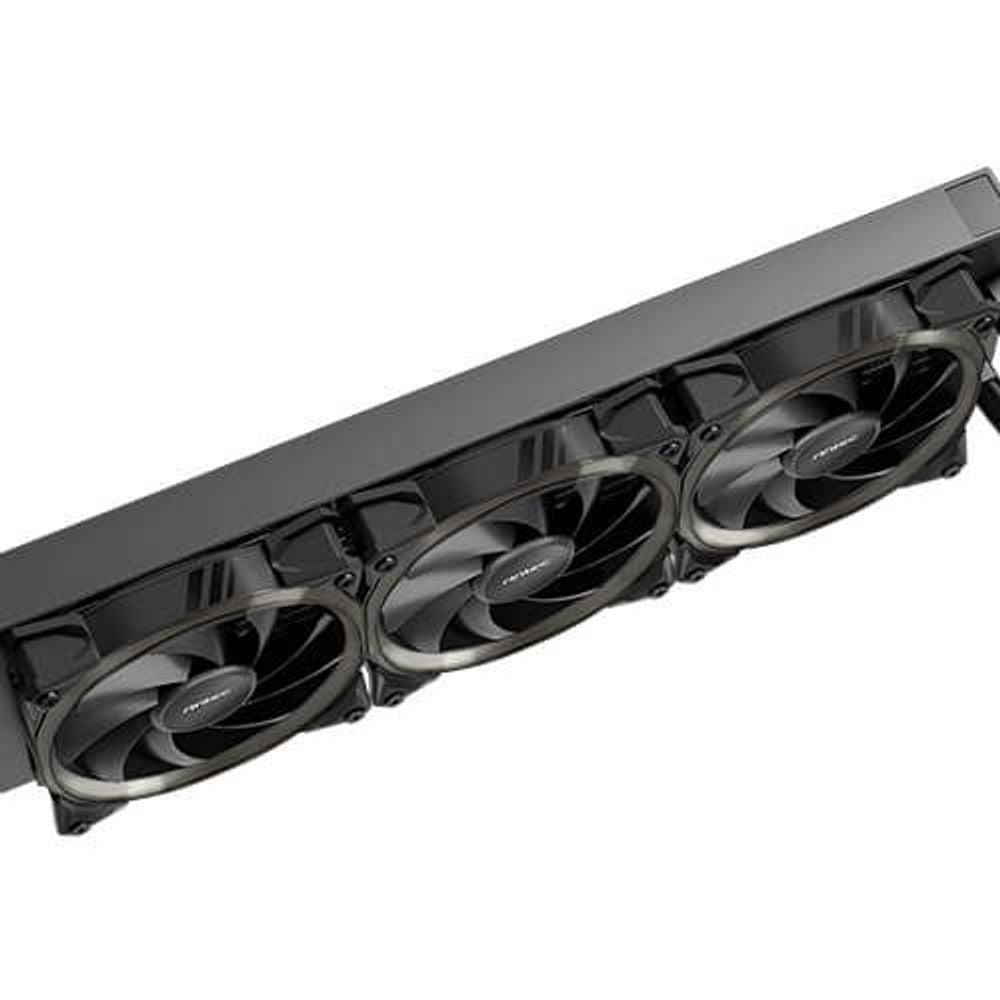

ARGB liquid cooler radiator fans, black fan blades with multicolor LED ring lighting

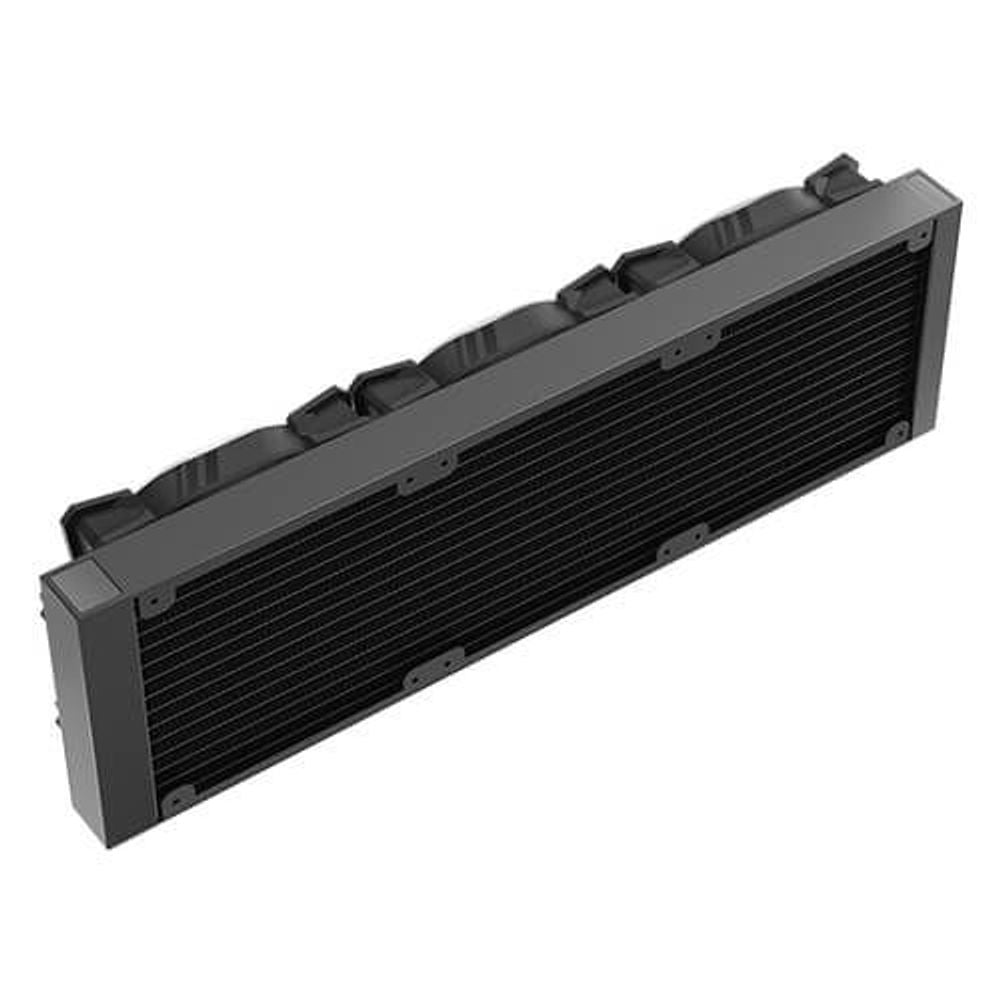

ARGB liquid cooler radiator with black fin stack and mounting frame

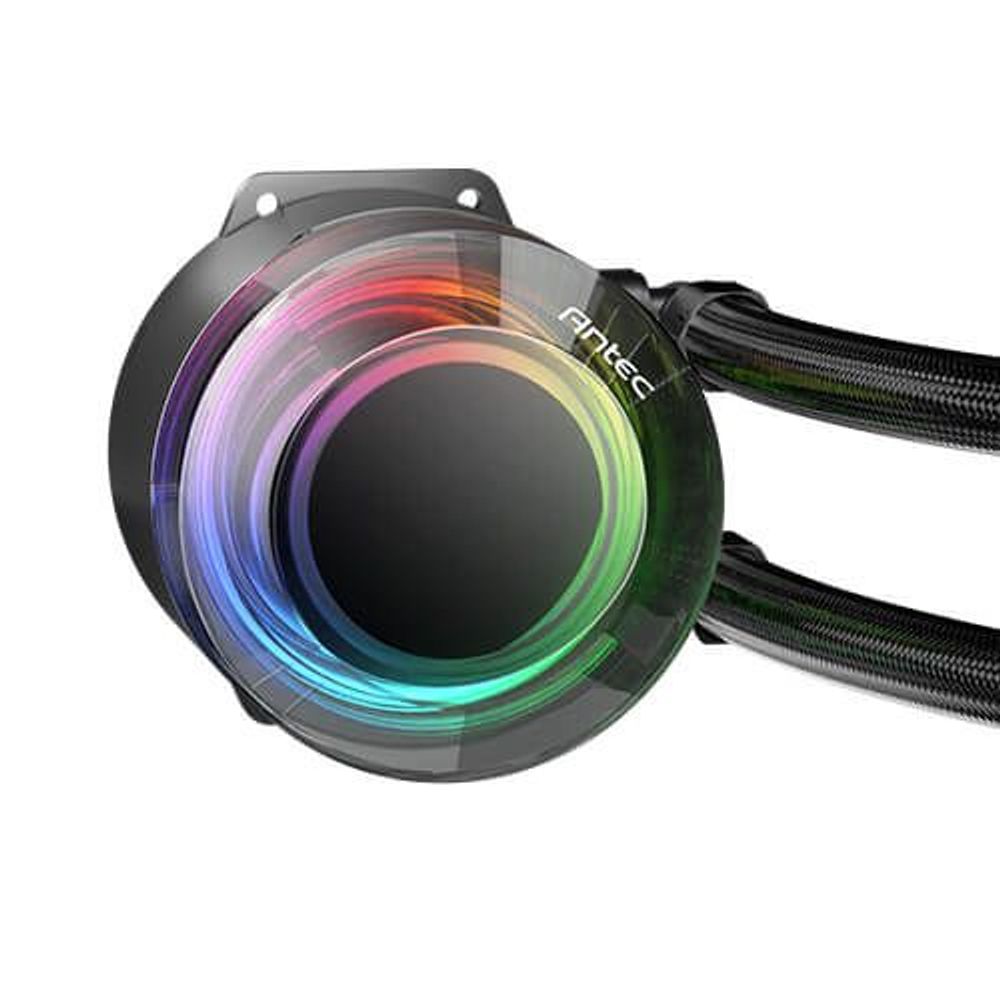

ARGB pump block with glowing multicolor LED ring and braided black tubing
ARGB liquid cooling system with three radiator fans and RGB pump block, multicolor rings
ARGB liquid cooler with three radiator fans and RGB pump, rainbow LED ring accents
ARGB liquid cooling system showing three RGB fans, braided tubes, and pump block
ARGB liquid cooler radiator with three fans and glowing rainbow LED rings
ARGB liquid cooler radiator fans, black fan blades with multicolor LED ring lighting
ARGB liquid cooler radiator with black fin stack and mounting frame
ARGB pump block with glowing multicolor LED ring and braided black tubing

CFAN-ANT-VO360 - Antec Vortex 360 ARGB  Liquid cooling system

CFAN-ANT-VO360

$230.00

Tax included.

In stock, ready to be shipped
Select quantity
Description

Antec Vortex 360 ARGB  water cooling system



VORTEX 360
The Epoch-Making All in One ARGB CPU Liquid Cooler
Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump

High Performance Cooling

Performance data tested with Vortex 360 on AMD Ryzen 5600x
EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
Antec Fusion PWM ARGB Fan
The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Included ARGB Controller Working
in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

Package
SPECIFICATIONS
Radiator
Radiator Dimensions 397 x 120 x 27 mm
Radiator Material Aluminum
Tdp Number
Vortex360 280W
Pump
Dimensions ￠67 x 48.5 mm
Rating Voltage DC 12 V
Minimum Startup Voltage ≥ 5.0 V
Fan Speed 2800±10% RPM
Rated Current 0.25±20% A
Consumed Power 3.0 W
Flow rate ≥ 1300 mL/min
Water Pressure 1.4M
Operation Temperature -10°C ~ +60°C
Noise Level ≤ 28 dB(A)
Lifespan 40,000 hours
Connector PUMP: 3-pin | LED: 3-pin
Fan
Model Name Fusion 120 ARGB fan (AH12012FM1)
Fan Type PWM Fan
Dimensions 120 x 120 x 25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB
Fan Speed 600±200 ~ 2000±10% RPM
Airflow 57.93 CFM (max.)
Air Pressure 2.11 mmH₂O (max.)
Fan Noise Level 31.24 dB(A)
Lifespan 40,000 hours
Connector FAN: 4-pin PWM | LED: 3-pin
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Socket Compatibility CPU Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3 / AM4 / TR4 / AM5
Warranty 3 years
UPC# 0-761345-74047-0
